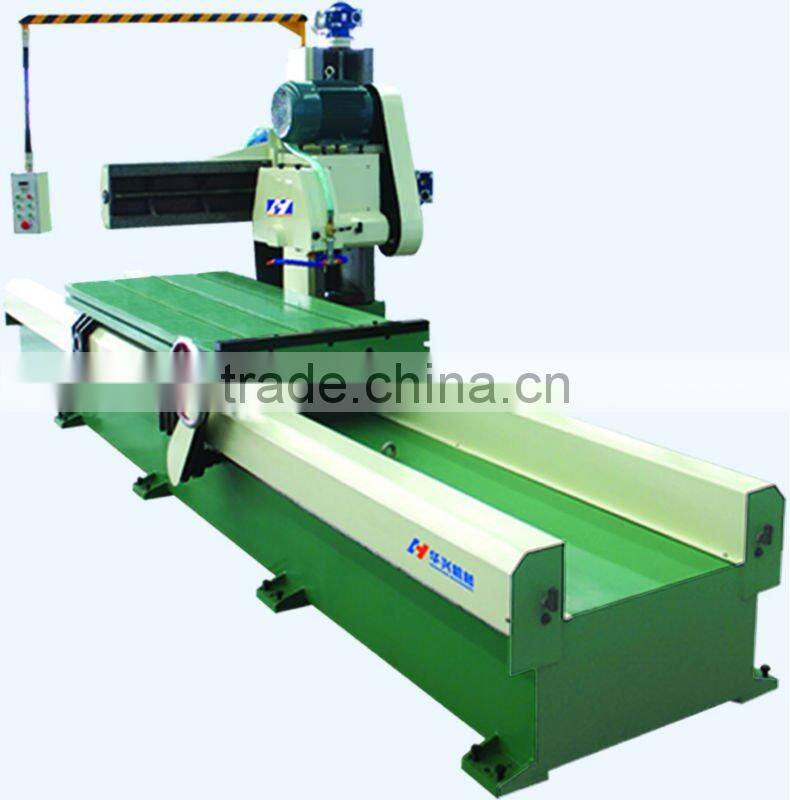

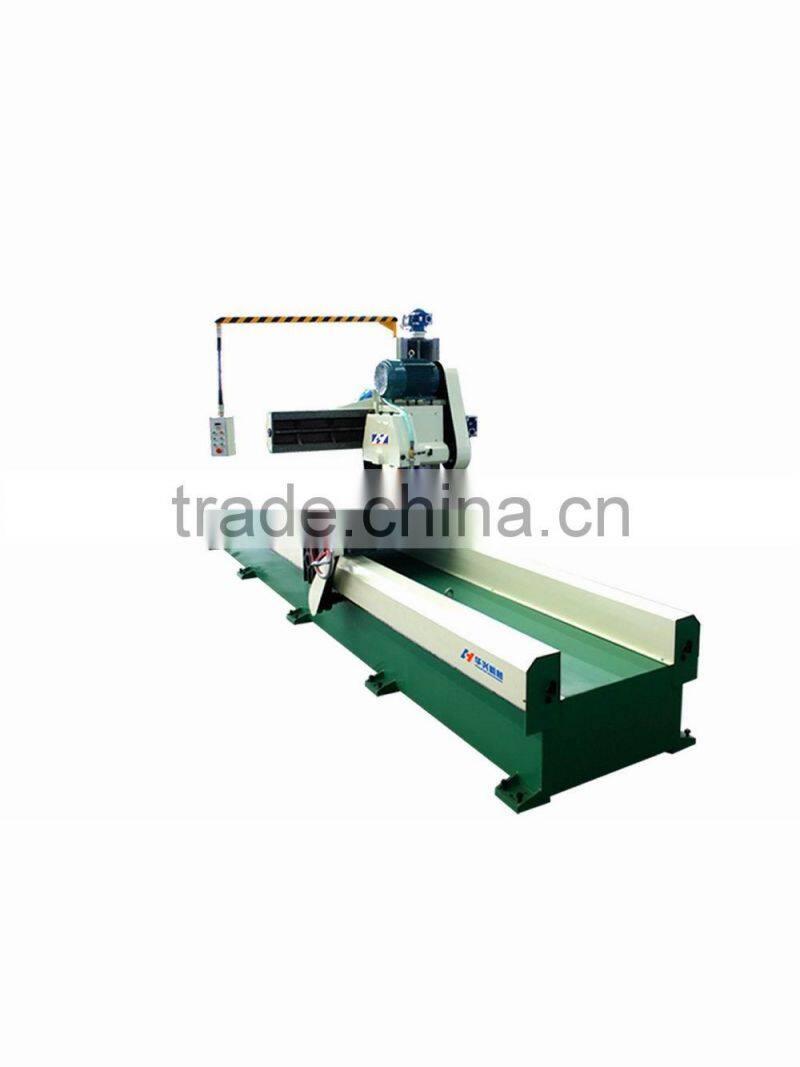

HQB40-60 Stone Cutter

1,Lengthen the crossbeam and make the cutting width increased to 1200mm.

2,Elevator motor and cross motor are adopted in this machine.

3,Widen the disc guard and increasing the power of main motor. It can be used for cutting no more than 160mm thickness of plates and slabs with 400~600mm diameters of disc.

4,Different diameters of belt pulley are added, which can be changed to adapt to different rotary speeds of discs.

5,This machine also has the function of marking and gaining after lengthening the main shaft.

6,The main body and trolley is connected together for easy to move and install.

7,It is easy to control and operate by using button station.

Main Parameters:

1. Diameter of discs                              Φ400/600mm

2. Cross stroke of disc                                 1200mm

3. Vertical stroke of disc                             400/300mm

4. Rotation angle of main shaft holder                     0°~90°

5. Area of trolley                                  2000*840mm

6. Stroke of trolley                                     3000mm

7. Total capacity                                       12.25kw

8. Main motor                                           11kw

9. Elevator reducer                                      0.75kw

10. Cross reducer                                       0.75kw

11. Pump motor                                         0.75kw

12. Overall dimension                         7000*2600*2200mm

13. Weight                                            2700kgs
