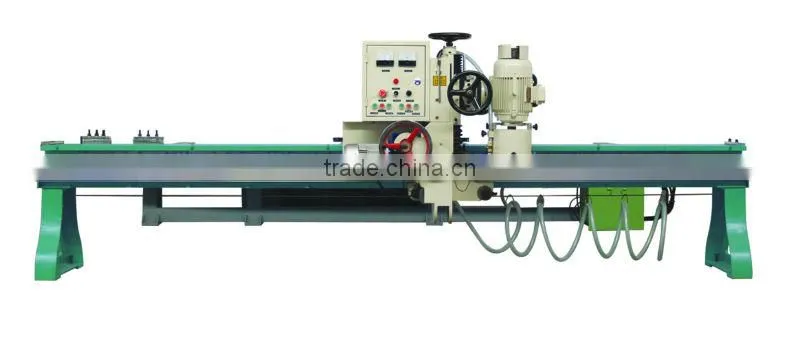

Help CenterGood Price YHXM350 Edge Profiling Stone Cutter
Related Products
-
SLY200 Numerical Control Marble and Granite MachineNegotiableMOQ: 1 Set -
SLY200 Numerical Control Stone MachineNegotiableMOQ: 1 Set
-
HSJ 200 Stone Making Machine--HuaxingNegotiableMOQ: 1 Set
-
HSJ 200 Artificial Stone Making MachineryNegotiableMOQ: 1 Set
-
HSJ 200 NUMERICAL CONTROL WIRE SAWING MACHINENegotiableMOQ: 1 Set
Usages and Features

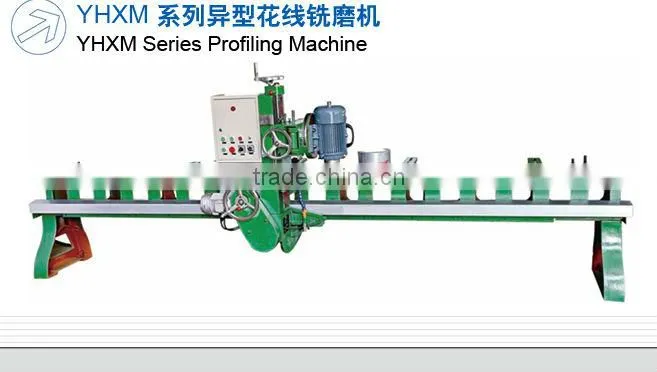

YHXM Series Special Line Milling Polisher is mainly used for grinding straight or curve edge of granite and marble, and other non-metallic materials. It also can be used for cutting and edge cutting of plates.
This machine is well designed and working stably, which raise the processing accuracy. It is designed to be integrated structure of body and rails. The rails of this machine are all-seal oil sinking type one, it guarantee a long usage life and high guidance precision.
This machine adopts two-speed motor, which raises the polishing efficiency.
The controlling system adopts manual type, the movement from left to right adopts manual and automatic type, and the automatic type adopts two types of two-speed and infinite speed variation.
The angle of polishing head can be deflected±8°, and the head can be rotated arbitrarily during 360°.
Main Technical Parameters
Model |
350Ⅱ |
Main motor (kw) |
4.5/5.5 |
Walking motor (kw) |
0.55 |
Walking speed (m/min) |
0.2~4 |
Effective processing stroke (mm) |
3500 |
Length of body (mm) |
4200 |
Maximum vertical stroke |
150 |
Adjustable stroke from front to back (mm) |
120 |
Maximum processing width (mm) |
≤150 |
Deflective angle of polishing head (°) |
±8 |
Rotary angle of head |
Arbitrary |
Maximum diameter of disc (mm) |
200 |
Rotary speed of polishing head (1000r/min) |
1.5/3 |
Overall dimension (m) |
4.3*2*1.6 |
Weight (kgs) |
1000 |
