Product Details
Condition: | New | Type: | CNC Router | Use: | Granite |
Place of Origin: | Shandong, China | Brand Name: | HUAXING | Model Number: | HQCC60 |
Voltage: | 380V 50HZ | Power(W): | 16.1KW | Dimension(L*W*H): | 5800*4500*3300mm |
Weight: | 5500 kg | Certification: | ce | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

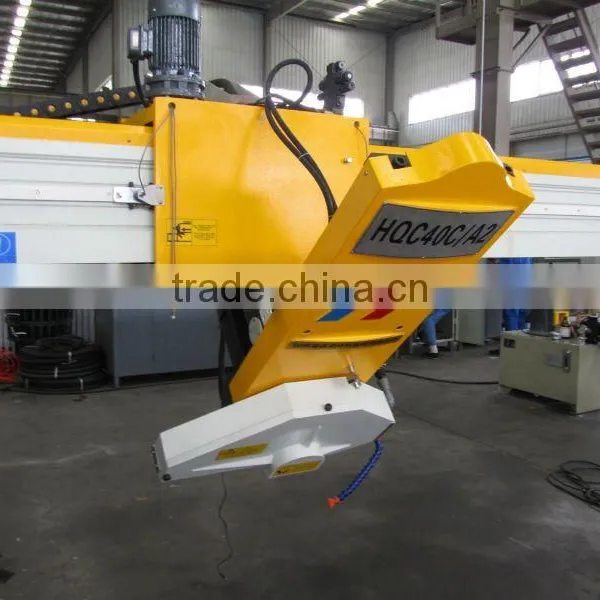

HQCC60 CNC PROCESSING MACHINE
HQCC60 CNC processing machine is one multifunctional, advanced stone procession machine. It is used for cutting and profiling marble,granite, artificial stone and so on.
Its main function :
l Cut—cut different size tile , slab , different columns
l Profile—process straight lines, irregular arc lines
l Polish—can polish the table top face
l Drill—can drill holes
The combination of different functions:
1, Infrared bridge cutting machine------to cut different decorative slabs or tiles
2, Two or three dimensional profiling machine------to process two or three dimensional straight or arc
3, Column base, cap machining center------to machine the column base or cap
4, Edge milling and profiling machine------to mill the curving or straight line
5, Countertop drilling and milling machine------to process the countertop with milling or molding wheels
Main Parameter:
model parameter | HQCC60 |
max cross stroke | 3300mm |
max longitudinal stroke | 3200mm |
Max up-down stroke | 500mm |
blade max cross moving speed | 16500mm/min |
blade max longitudinal moving speed | 18000mm/min |
table max tilting degree | 85° |
table rotating degree | A) 0°,45°,90°,180°,270° (fixed) B) 360° continuous rotation C) 0~180°swinging |
Table size | 3250×2000mm |
guide rail of side beam and main crossbeam | Straight guide rail |
Total power | 16.1KW |
Main motor | 11KW/4—frequency adjustable |
carriage walking motor (servomotor) | 1.2 KW |
crossbeam moving motor (servomotor) | 1.2 KW |
up down motor (servomotor) | 1.2KW |
oil pump motor | 1.5 KW |
standard working pressure | 5.5Mpa |
machine size | 5800*4500*3300mm |
Total weight | 5500 kg |
