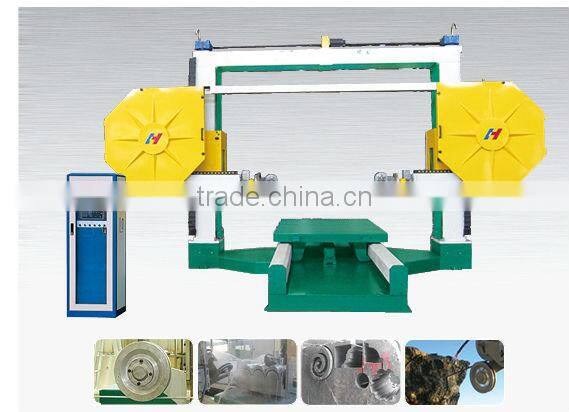

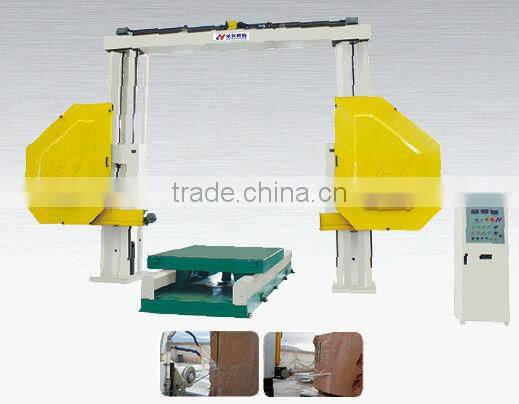

HSJ CNC Automatic STONE Cutter Machine---China Brand

The HSJ cnc wire sawing machine is the dedicated equipment of irregular stone, this equipment is suitable for the marble, the granite, the artificial marble, the concrete board, and other special plane and French curve, and it is suitable specially for the major diameter circular arc board processing.

The Main characteristic as following:

1. The automaticity is high. The electrical control has used the computer numerical control technology, the main heading used servo electrical machinery which has stable performance, the reliable quality and the strong power, the pressure roller rotation electrical machinery has also used the step-by-step motor.

2. Reasonable structure and stable operation. This machine adopts Dragon Gate gantry construction, the two sides adopt a roller-type structure flywheel movements, the elevator movement is Light, flexible and smoothly

3. Adjusting operating convenience.

4. Adopting the hydraulic pressure system. And this system adopts hydraulic accumulator and hydraulic pressure relief switch, makes the machine in good tension force and easy maintenance.

Main Parameters(HSJ200):

1. Flywheel diameter                           1520mm

2. Maximum vertical stroke of disc               1600mm

3. Maximum depth of cutting                   1500mm

4. Maximum width of cutting                     2000mm

5 Maximum stroke of working table               3000mm

6. Working table dimension               2500*1600mm

7. Capacity                                     18Kw

8. Overall dimension                   7000*5500*4200mm

9. Weight                                       8000Kg
