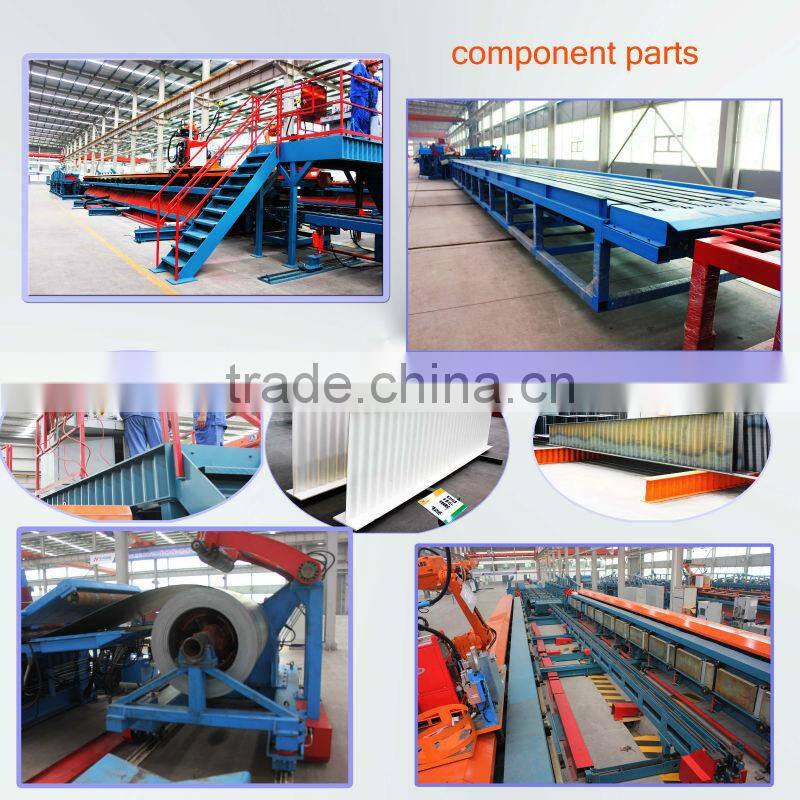

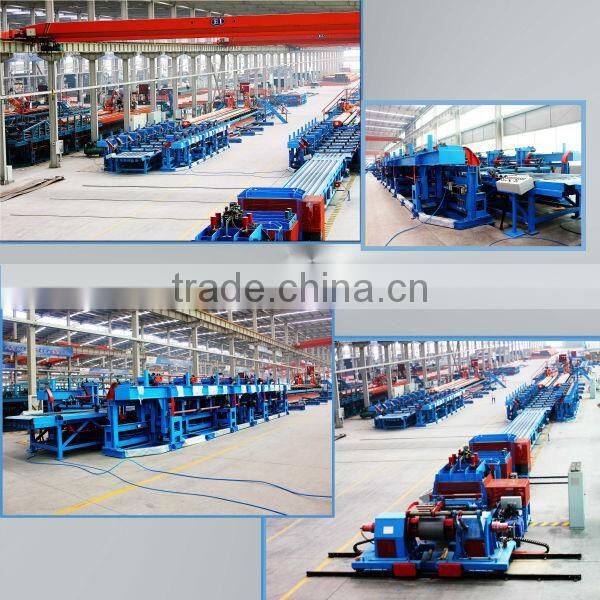

HUAXING Corrugated Web Plates Production Line

Specifications

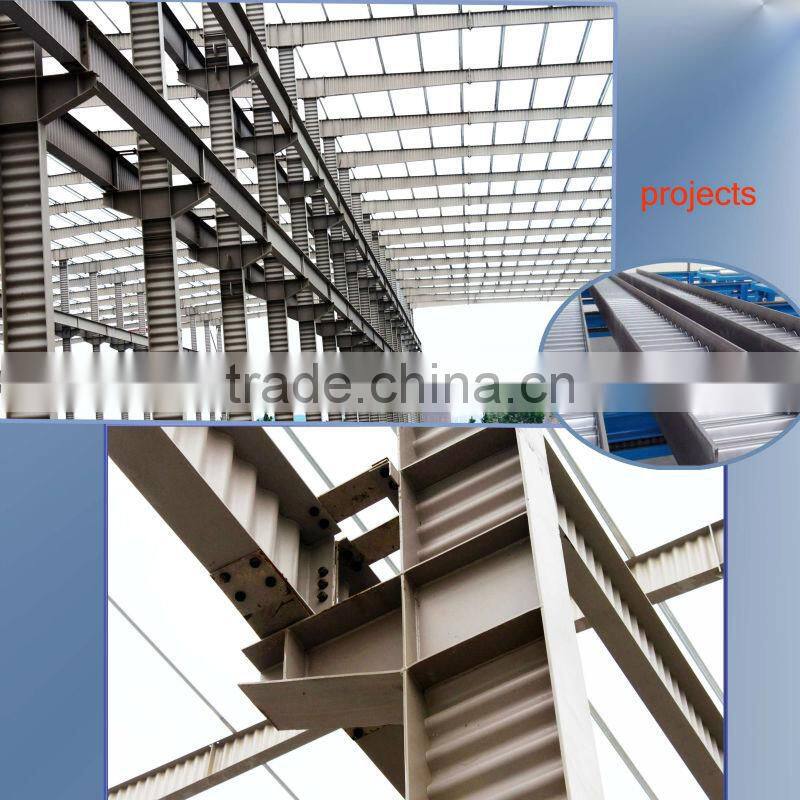

The successful development of the corrugated web plates production line is a significant breakthrough of the high technique field, it fills in the corrugated webs of automatic welding equipment blank. This production line can produce ordinary flat webs h-beam and welding web thickness of 1.5-6 mm corrugated H steel webs, wedge beam, still can well finish different hole cutting task. This production line can complete load up to 30 ton steel coil production tasks and can produce h-beam 4 m-16 m, width of 333 mm minus-1500 mm.

Decoiler

Multi-arms telescopic hydraulic up-shrink structure

Max weight bearing: 30T

Coil outsider diameter: 2000mm(max)

Coil interior diameter: 580mm-620mm

Max strip width: 1500mm

System pressture: 10Mpa

Driving power: 2*7.1kw

Processing speed: sheet thickness between 1.5mm-3mm, speed 20m/min

               sheet thickness between 3mm-6mm, speed 10m/min

Straightener:

5-roller straightening device

Diameter of the straightener rollers:1000mm

Material of the straightener rollers:9CrMoV

Min sheet width: 333mm

Max sheet width:1500mm

Min sheet thickness:1.5mm

Max sheet thickness:6mm

Driving power:9.5kw

Processing speed:sheet thickness between 1.5mm-3mm, speed 20m/min

              sheet thickness between 4mm-6mm, speed 10m/min

Transversal cutter:

Max sheet width:1500mm

Min sheet thickness: 1.5mm

Max sheet thickness: 6mm

Hydraulic powered

Cutting time: 1.5s

Slitting machine

Min sheet width:333mm

Max sheet width:1500mm

Min sheet thickness:1.5mm

Max sheet thickness:6mm

Driving power:7.1kw

Processing speed:0-10m/min

Forming machine

Forming rollers number:2*13

Forming rollers diameter:80mm

Forming rollers material: 60CrMoV

Max sheet width:1500mm

Max sheet thickness: 6mm

Drving power: 16.2kw

Processing speed: sheet thickness between 1.5mm-3mm, speed 20m/min

              sheet thickness between 4mm-6mm, speed 10m/min
