Home > Products > Pelletizing machine > farm machinery full automatic electrical motor wood pellet making machine/animal feed pellet machine for chickens,rabbits,ducks

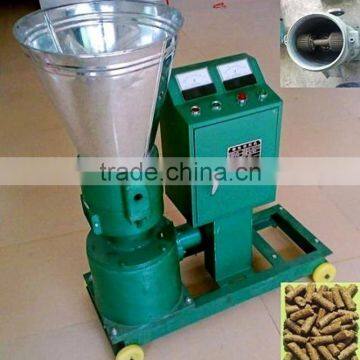

farm machinery full automatic electrical motor wood pellet making machine/animal feed pellet machine for chickens,rabbits,ducks
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dongzhen |
Model Number: | DZJX | Type: | Feed Pellet Machine | Voltage: | 220V/380V/400V/415V |
Power(W): | 2.2kw-7.5kw | Dimension(L*W*H): | 1250x650x650mm | Weight: | 200 kg |
Certification: | ISO CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
feed pellet mill
Application:
By using corn, bean, pulp, straw, grass, rice husk and so on waste material can make feeds for animals, this product applied
to aquiculture, feed processing plant, Poultry farming etc.
Competitive Advantage of Mini feed pellet mill
It can change waste raw material, such as sawdust, rice husk and such material into animal feeds ,and improve their uses, energy saving and protect the environment.
Specification of Mini feed pellet mill
1.Pelletizing is the process of making waste materials into solid fuel. The pellets are then used for thermal combustion. Wood pellets are one of the most common products of pelletization.
2.Wood pellets can be made from any type of agro-forestry waste: peanut shells, sugarcane bagasse, caster shells/stalks, sawdust, coffee husks, paddy straw, sunflower stalks, cotton stalks, tobacco waste, mustard stalks, jute waste, bamboo dust, tea waste, wheat straw, palm husks, soybean husks, coconut residues, rice husks, forestry waste, woodchips and other agro-wastes.
3.The moisture content should be less than 15%, and grain size below 5*5 mm.
4.With high-precision gears can make the working stability and long time.
1. Simple to operate and clean, only 1 or 2 workers are OK.
2. Spare parts are easy to change, less cost for roller and dies.
3. The pelleting process is visible, so it is convenient to solve problems in time.
4.Driven by diesel engine, this diesel flat die pellet mill can be used in nearly everywhere in the world, especially popular for areas with shortage supply of electricity.
5.Diesel flat die pellet mill has compact structure and light weight which enable it to be moved freely and more adjustable to small pellet production.
6.Equipped with high quality alloy steel roller and die by advanced craft.The visibility design of the pelletizing chamber ensures a smooth pelletizing process and timely repairing.
7.Feed and grass meal can be directly made into pellet without adding any liquid materials.The pellets size various from dia2.5mm, 3mm, 4mm, 6mm to 8mm for different kinds of animals.
Mini Feed Pellet Mill Process
Firstly, put materials into the feeder and let them fall down onto a set of rotating rollers over the die; then, the materials will be compressed between the surface of die and the rotating rollers, while pellets coming out of the die they will be cut into set length by a sharp knife. The temperature is about 70°C in process, so the protein freezes, the nutritional value increases and is easy to absorbed for animals, pellets inside is ripening and outside slippy, rigid enough, suitable for long-term storage.
Specifications
Model | Motor | Flat die diameter | Film hole diameter(mm) | Moisture | Capacity | Size l*w*h (cm) | Weight(kg) |
DZM120 | 2.2KW | 120mm | Φ2.5,3,4,6 | <20% of raw material | 100-120kg/h | 560*500*1000 | 70 |
DZM150 | 5.5KW | 150mm | Φ2.5,3,4,6 | <20% of raw material | 150-200kg/h | 1020*440*900 | 100 |
DZM200 | 11KW | 200mm | φ2.5,3,4,6 | <20% of raw material | 200-300kg/h | 1610*410*950 | 120 |
DZM250 | 15KW | 250mm | φ2.5,3,4,6 | <20% of raw material | 300-500kg/h | 1630*490*1125 | 200 |
DZM320 | 22kw | 320mm | φ2.5,3,4,6 | <20% of raw material | 800-1200kg/h | 1720*730*1490 | 610 |
DZM400 | 30kw | 400m | φ2.5,3,4,6 | <20% of raw material | 400-800 kg/h | 1880*800*1500 | 780 |
