Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > China Supply Screw Vertical Conical Mixer

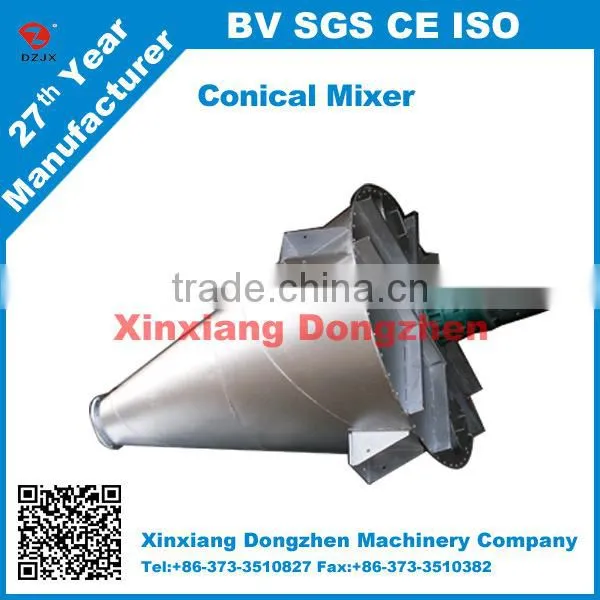

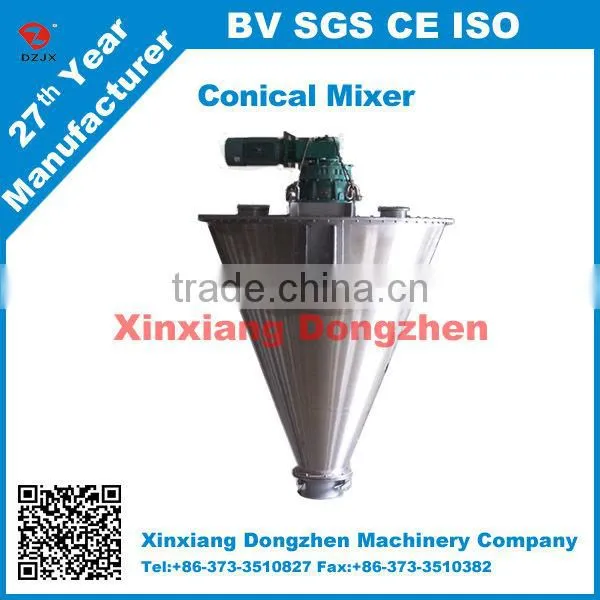

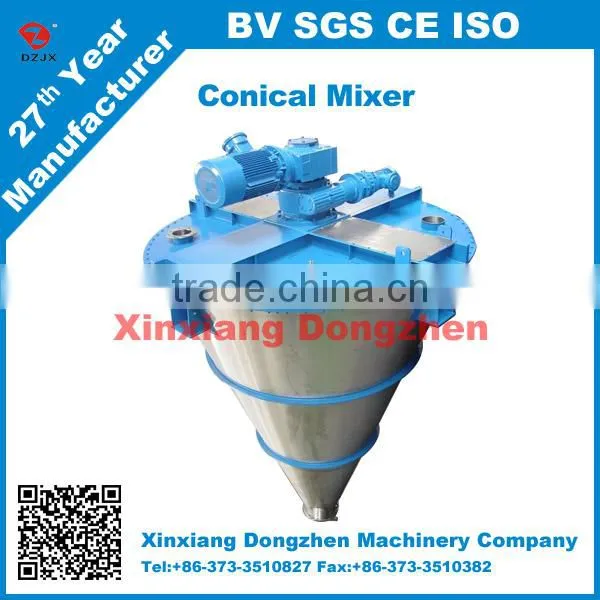

China Supply Screw Vertical Conical Mixer

Name: China Supply Screw Vertical Conical Mixer
Brand: DZJX
SKU: 138185385

China Supply Screw Vertical Conical Mixer thumbnail-1

China Supply Screw Vertical Conical Mixer photo-1

US$ 1,000 - 3,820 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

DZJX

Model Number:

DZ-76

Contact Supplier Request Quote Chat Now

Xinxiang Dongzhen Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name DZJX

Model Number DZ-76

Specifications

DZ Made Conical Mixer
1 CE SGS ISO
2 Cooling/heating function available
3 Double screws mixing agitator

DZ Made Conical Mixer

Brief Introduction

Jacketed Conical Screw Mixer is a convective mixer with a high mixing efficiency. The VSM treats the product mixture gently and guarantees a high level of mixing accuracy without any material distortion. This machine relies on a combined three-dimensional action produced by a screw suspended from a turning arm inside the conical vessel and the rotation of the screw itself.

Jacketed Conical Screw Mixer is used for applications in which gentle mixing or blending in combination with residue-free material discharge is required. Furthermore, this type of mixer is suitable for intermediate material storage combined with temporary blending.
The Conical Mixer is used for mixing or blending of powders or pastes, for granulation and agglomeration of powders with binding liquid addition, as well as for crystallization.

Feature

1.Short Mixing Time
It achieves a throughly homogeneous mix in 30 to 40% the time of most conventional mixers in the same category such depending on mixing element speeds.

2.Low Power Consumption
Cone screw mixer (Nouta Mixer) require approximately 50% power over conventional blender.

3.Gentle Mixing Action
Fragile filaments and flakes are safe from degradation and mixing is accomplished with minimal heat built up and aeration in the product.

4.Low Floor Space Required
Since mixer occupies less floor space, user can free up space for other plant operations.

5.Full Load Starting
Its screw agitator begins axially rotating and loosens batch material before its orbiting motion starts. This design feature prevents stalling and permits starting under full load in the event of a power failure. Soft starters are available to reduce excessive torque at start up.

6.Fast, Complete Discharge
Its unique cone design provides for gravity unloading, gives cleaner and faster batch discharge.

7.Easy Liquid Addition
Liquids are injected and atomized into the top of the mixer through the hollow shaft of the drive system.

Mixing of Partial Batches
Partial or full load batches are mixing equally well with no reduction in mixing efficiency.

8.Easy to clean
The top entering drive system provides full product protection with no bearing nor seals in direct contact with the product. Its unique obstruction - free cone shaped design allows for quick and easy cleaning

Technical Parameter

Type(m3)	Power(kw)	(kg)(m3)/Batch	Dimension(mm)	Weight
DZH-0.5	3	<300	1150×2320	580
DZH-1	5.5	<600	1480×2850	1150
DZH-2	5.5	<1200	1820×3510	1500
DZH-3	7.5	<1800	2050×3800	2300
DZH-4	11	<2500	2250×4480	2500
DZH-5	15	<3000	2350×4720	2800
DZH-6	15	<3600	2560×4980	3000
DZH-8	18.5	<4200	2780×5360	4500
DZH-10	18.5	<6000	3020×5810	5300
DZH-15	22	<9000	3460×6510	6800
DZH-20	37	<12000	3810×7420	9800
DZH-25	45	<15000	4090×7800	10800
DZH-30	55	<18000	4350×8200	12300
