ISO9001:2000this feeders are widely applied in food processing industries, chemical industry, light industry etc

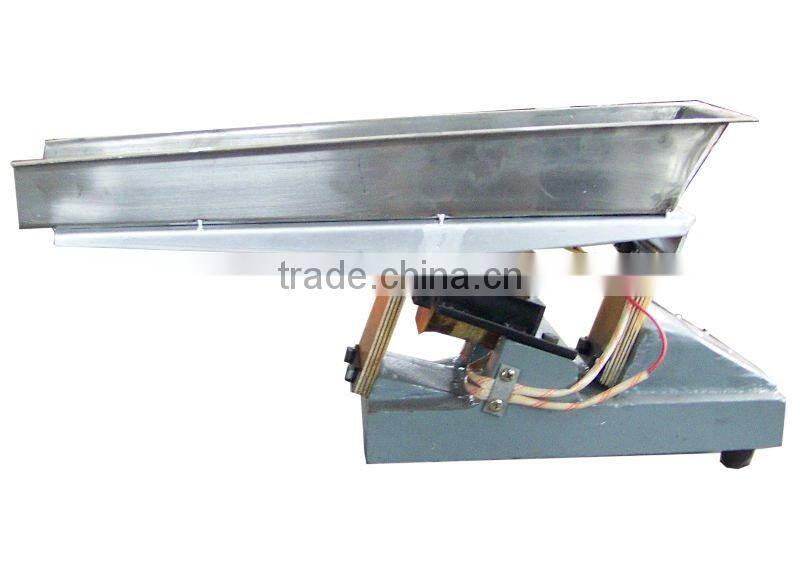

GZV series tiny electromagnetic feeders are widely applied in light industry, chemical industry , food processing industries etc. This kind of machines are mainly used for powder and particle bulk conveying , quantitative package, and centralize & automatic control is available during operation. This feeder can be operated on the working table, and it can be used as tiny vibratory screen by equipped with screen cloth.
Model | GZV1 | GZV2 | GZV3 | GZV4 | GZV5 | GZV6 |
Capacity(t/h) | 0.1 | 0.5 | 1 | 2 | 4 | 6 |
Double amplitude | 1.5mm | |||||
Frequency(r/min) | 3000 | |||||
Voltage(V) | 220 | |||||
Power(W) | 5 | 8 | 20 | 25 | 30 | 50 |
Weight(Kg) | 4 | 7 | 12 | 18 | 27 | 45 |
Remark: production rate is calculated based on 1.6t/m3
Dimension and drawing of GZV Feeder
MODEL | B | B1 | B2 | B3 | L | L1 | L2 | H | H1 |
GZV1 | 40 | 60 | 50 | 80 | 200 | 273 | 95 | 20 | 155 |
GZV2 | 60 | 80 | 50 | 80 | 300 | 374 | 95 | 30 | 168 |
GZV3 | 80 | 110 | 60 | 100 | 400 | 480 | 224 | 40 | 222 |
GZV4 | 100 | 130 | 70 | 120 | 500 | 568 | 310 | 50 | 256 |
GZV5 | 120 | 150 | 70 | 120 | 500 | 630 | 310 | 60 | 295 |
GZV6 | 200 | 240 | 120 | 180 | 500 | 760 | 440 | 70 | 300 |
