Twin screw Automatic textured vegetable soy protein mince machine
- 30 Set / Sets per Month
- qingdao
- T/T L/C Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | zhuoheng |
Model Number: | Zh65/70/85 | Type: | Soybean Machinery | Voltage: | 380v |
Power(W): | 45kw | Weight: | 1700kg | Dimension(L*W*H): | 30000x3500x4300mm |
Certification: | CE/TUV/BV | Warranty: | 12monthes | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Twin screw Automatic textured vegetable soy protein mince machine
Textured protein (also referred to as texturized protein, textured soy protein or soy meat) is primarily made from a defatted soy flour.
It is used to make a variety of vegetarian and vegan dishes or as a meat extender.
Textured protein is less expensive than meat, poultry or fish and is an environmentally friendly source of protein.
A . Production line details
Capacity | 90kg-900kg |
Power Supply | Based on 380V 50 Hz 3 phase. Customized according to your local power. |
Machine details | 1.Stainless steel,:201, 304, 316, on request 2. Electric parts can be ABB, Delta, Fuji, Omron, Siemens; Famous brand as your demand. |
Certificate | CE,GOST,TUV,BV |
Raw Material | Defatted soy flour (Oil content less than1%) |
Products type | Flake, Stick, Chunk, Nugget, Granular, Powder |
B. Twin screw Automatic textured vegetable soy protein mince machine Advantages
1. The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
2. SIMENS (China) Motor
3. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process.
4. Adopted the Delta inverters, ensure the extruder better running.
5. The gearbox has automatic lubrication function, which prolong service life of gears.
6. Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.
C .Twin screw Automatic textured vegetable soy protein mince machine Technical Parameters

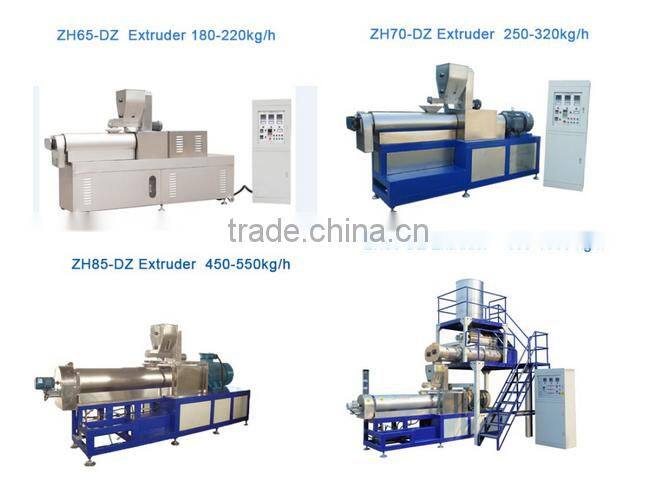

Model | Installed power | Real power | Capacity | Dimension |
ZH65-DZ | 45kw | 22kw | 180-220kg/h | 39000x1200x2200mm |
ZH70-DZ | 50kw | 37kw | 250-320kg/h | 41000x1500x2200mm |
ZH85-DZ | 110kw | 75kw | 450-550kg/h | 43000x3500x4300mm |
ZH95-DZ | 151kw | 110kw | 850-1000 kg/h | 4700x1900x4800mm |

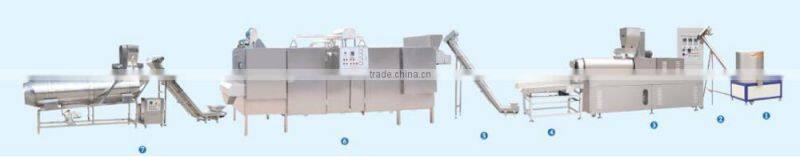

D.Twin screw Automatic textured vegetable soy protein mince machine Production process
Mixing Raw material -----Extruding----Drying---Flavoring ---Packing
Packing: Twin screw Automatic textured vegetable soy protein mince machine are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.
We take good care of each machine for you
Delivery: 20-30 days after receiving advance payment.
Pre-sale service | Communicating with customers and learn your requirement |
Providing professional advisory services | |
Providing solutions according to customers’ requirement, And offer the quotation | |
Providing on-site visit to our factory | |
Providing samples | |
Selling service | Confirm every terms and details and sign contract with customers |
Manufacturing machines according to contract. | |
Trial running after production. | |
Packing machines and delivery on time | |
Providing relevant documents for Custom clearance(If necessary) | |
After-sale service | Send engineers for installation, trial running and training workers. |
Handling the problems occurred during use. | |
Supply spare and wearing parts on discount. | |
Help customers to solve any other problems |
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food & feed extrusion machine
2.What's the price of your machines?
You can inquiry to us directly
3.What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.
4. Can we provide the formula to you?
We can provide basic formula for producing the food etc.
And help customer to produce good quality food according customer’s detailed formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your factory size.
We can design the layout according to your factory size.
