Nutritional flour/baby food powder processing machine
Thanks for your attention, welcome to contect me:
Skype: Michelle Wang007
WhatsApp: +86 18396880865
1. Description:

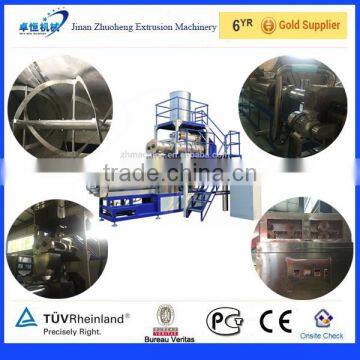

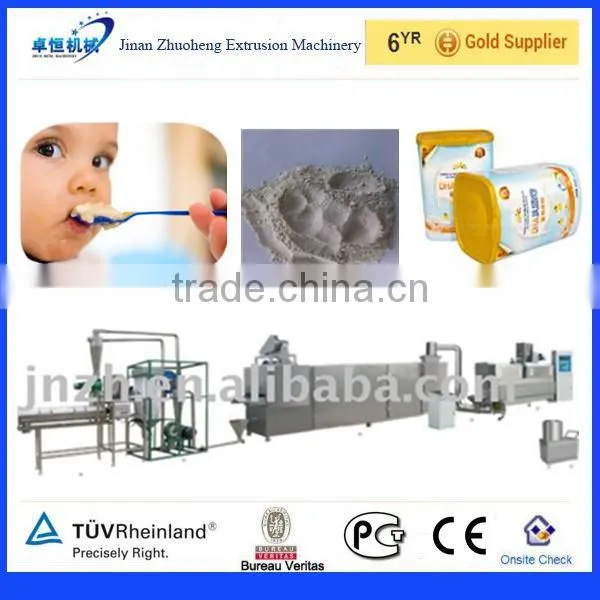

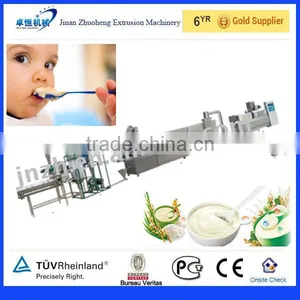

Baby food machinery is used to produce infant baby food and some other instant flour
products. The raw material is put in the mixer then mixed ingredients are fed into extruder

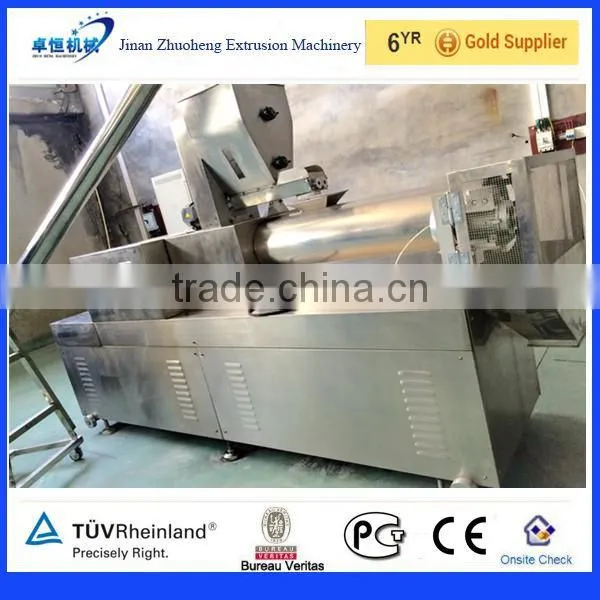

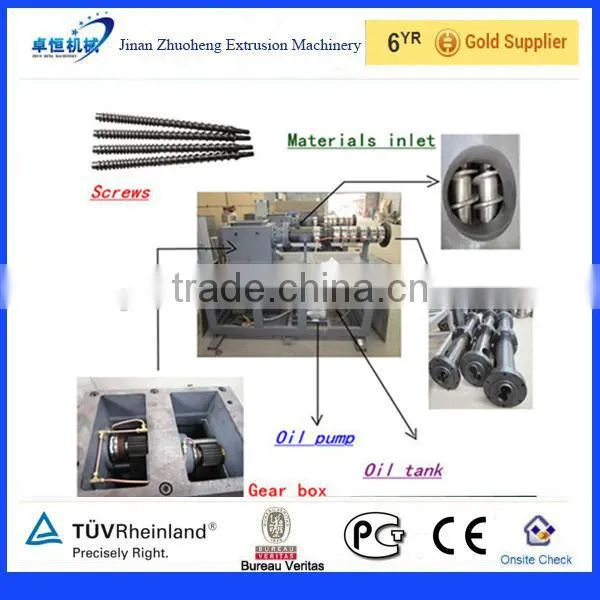

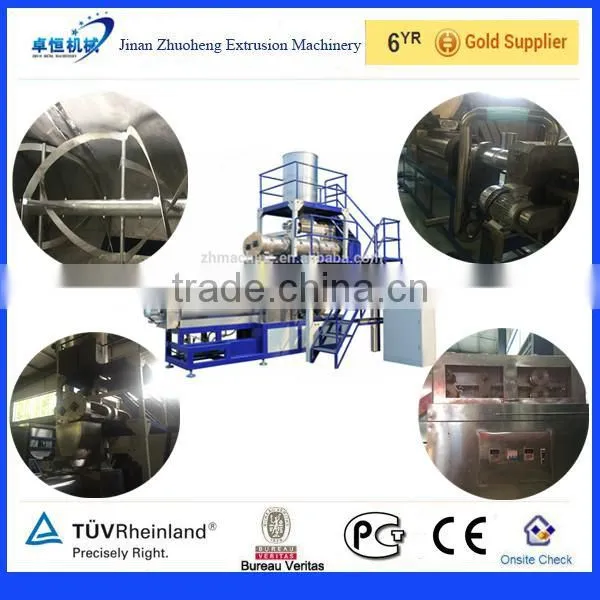

feeder. The extruder is fitted with: special cylindrical holding silo; vibratory doser with
hopper to feed the extruding screw; extrusion mechanism and cutting; independent electric
panel. After the extrusion the product is conveyed till the continuous rotary drier through a
pneumatic conveyor. The continuous rotary drier has a heat exchanger with gas burner
that allows a better heating of the product and it is economically viable owing the low cost
of electric power. Case the client prefers we have the electric drier also.
2. Products: baby food, FBF, CSB and samaposha etc
3. Capacity: 150kg/h(ZH65 Extruder), 240-300kg/h(ZH70 Extruder) , 500kg/h(ZH85 Extruder),
600-900kg/h(ZH95Extruder).

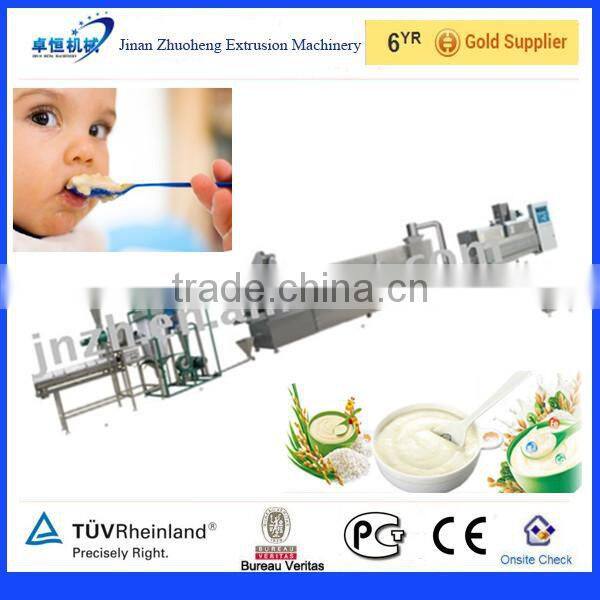

4. Flow chart: Mixing system---Extrusion system---- -Drying system----Milling system---Packing
system
5. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it
according to customers’ Local voltage according to different countries
6. Technical Parameters
Model | Installed power | Real power | Output | Dimension |
ZH65 | 66kw | 50kw | 100-150kg/h | 19000x1200x2200mm |
ZH70 | 100kw | 67kw | 200-240kg/h | 21000x1500x2200mm |
ZH85 | 130kw | 80kw | 400-500kg/h | 30000x3500x4300mm |
7.Production Advantage:
1. The motor of our extruder machine is Siemens Motor.
2. The raw material of our machines is Stainless Steel.
3. Our automatic machines are controled by frequency changer, it is easy to operate.
4. Our factory will send our engineer to install machines for you.
5. baked snack machine have the 12 months guarantee time.
6. The machine is multifunction. Many types of snacks can be manufactured by changing the
die head and model.
Jinan Zhuoheng Extrusion Machinery Co., Ltd., a shareholders-owned and operated
business established more than 10 years ago, is considered as one of Chinese most
respected and experienced suppliers of snack food equipment, accessories and
services.
Zhuoheng has a comprehensive manufacturing program offering equipment and systems
to customers in extruded snack food processing machinery and allied industries. We can
supply individual items of equipment or complete factory layouts and lines, which are
custom-built to meet the requirements of customers. Our spare part and service division demonstrates our continuous commitment to customers' support and after-sales service. We have successfully completed several largescale projects from planning to completion
and project management.
Zhuoheng has a proven record of quality and service.
Picrures Show:
With full wooden package in container.Packing shall ensure the safety of Goods during its
transportation and loading by Seller and unloading in the country of Buyer
Since the establishment of our company, we have always manufacturing our machines
according to the authorized standards, by now ,we have got several certificates including
CE and ISO9001 and we are 6 Years Alibaba Golden Supplier.
Thanks for your interest to our Nutritional Powder Extrusion Food Machine
please feel free to contact us for the further discussion.
Give us an inquiry, You will get what you Want!
