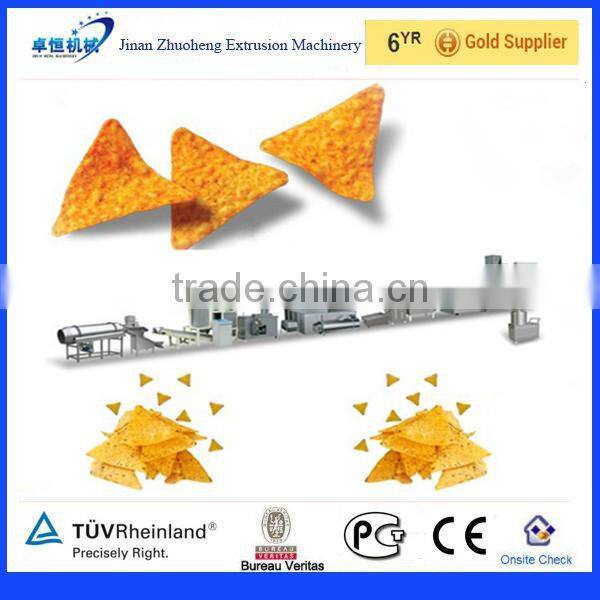

Hot Selling and Big Capacity Puffing Corn Rice Snacks Food Making Machine

1. High Yield New Tech Automatic Dog Food Making Machine can produce various shapes food for dog, cat, bird, fish, ect pets and animals, chicken, different die of extruder can make different shapes.
2. Through the pretreatment of the fodder, it can reduce loss of nutrition and advance the protein ratio. So the fodder will be digested easily by animals.

3. High output, low consumption and bacterium reducing is realized by the steam and electric design.

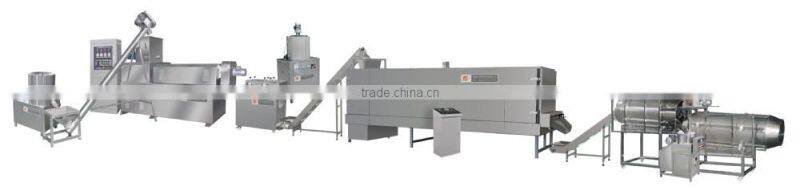

4. Flow chart : Flour Mixer -- Elevator -- Double-screw Extruder-Air conveyer--Dryer --Flavoring Machine--Cooling machine--Packing machine.

Main Features

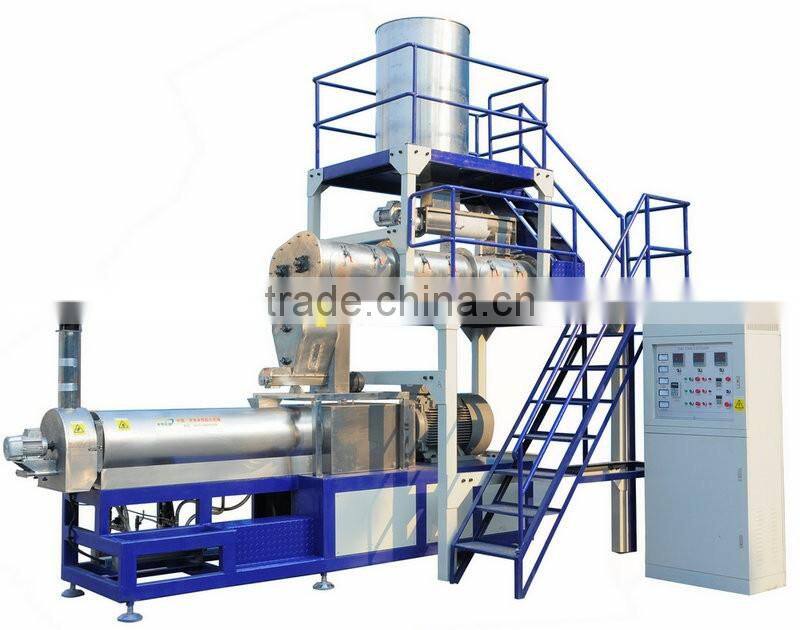

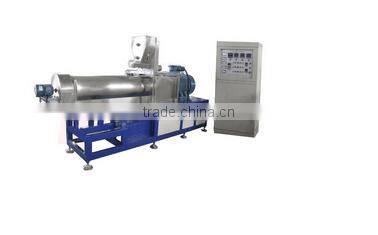

Twin-Screw Extruders

In order to create a design with greater operating flexibility and with greater operational control, twinscrew machines were developed. Twin-screw extruders can be co-rotating, counter-rotating, intermeshing or non-intermeshing in terms of basic designs. Co-rotating, intermeshing screw designs have dominated that scene as far as these extruders are concerned. This is because of relative ease of design and manufacture compared to counter-rotating designs.The screw design of twin-screw extruders can affect operating efficiency and machine capability. Screw components in the feed section of the barrel can be single, double or even triple flight arrangements. With more flights intertwined on the shaft, the conveying capacity of the screw is reduced but the residence time distribution is lower. This promotes a first-in, first-out movement of the extrudate. However, double- and triple flighted screws produce more shear across the screw channel and therefore, improved processing uniformity.

Machine Parts

Screw: double screw

Brand of electric parts: ABB

Motor: siemens

GearBox:design by our engineer ,can be used long time

Configuration of the Machine

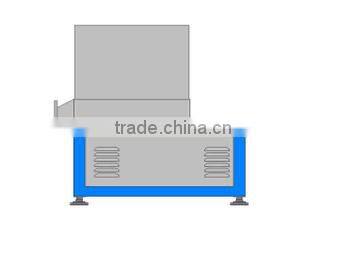

Name: Mixer
Output :150kg/h-300k/h
Original: China
Mixing system uses WPO type reducer drive, large output torque, stable running and stir well, is an ideal material mixing equipment.

Configuration of the Machine

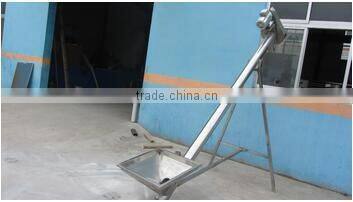

Name: Screw Conveyor
Output :150kg/h-200k/h
Original: China
According to production requirement, hoisting height and throughput needs to custom, solve the problem by manual handling. Saves time and effort, safe and reliable.

Name: 1t/h Dryer pet adult dog food machine

Inverter:Delta

Original: China

Motor:Siemens

Capacity:200kg/h-250kg/h

1t/h Dryer pet adult dog food machine with reasonable design, high degree automatization, high output and advanced technology. The machine adopts advanced variable frequency speed control system, with more powerful drive, stable running and low consumption.

       Don't hesitate, order it at once
