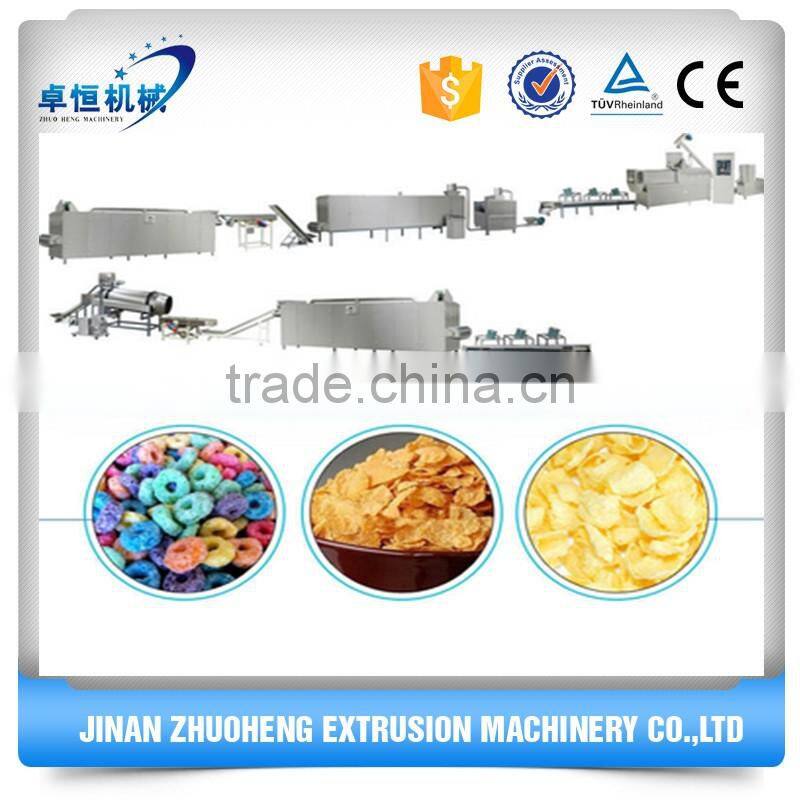

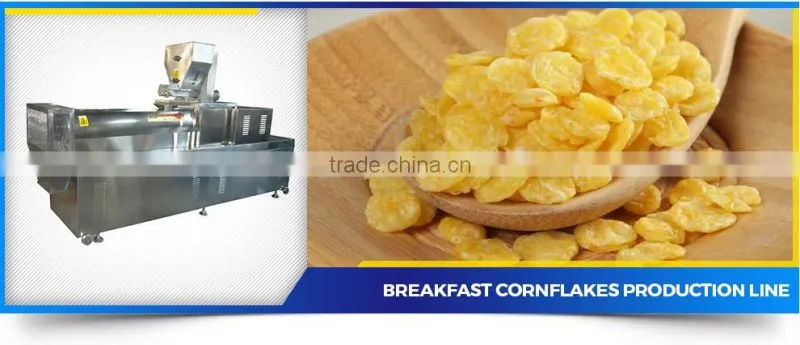

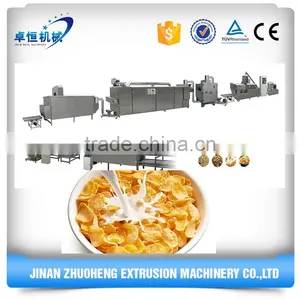

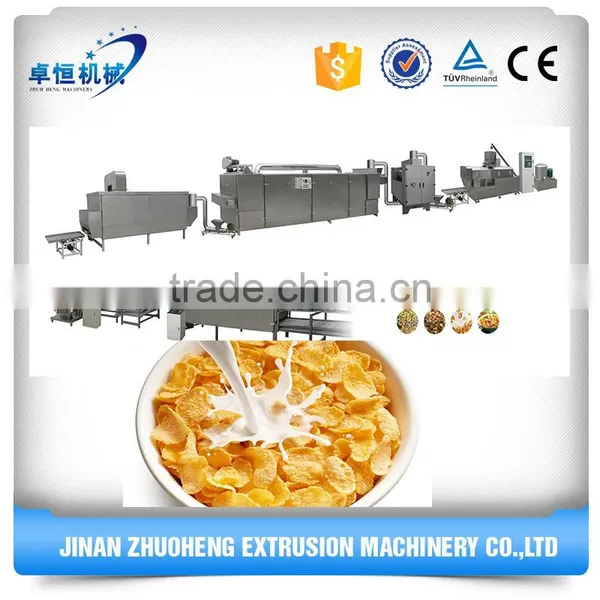

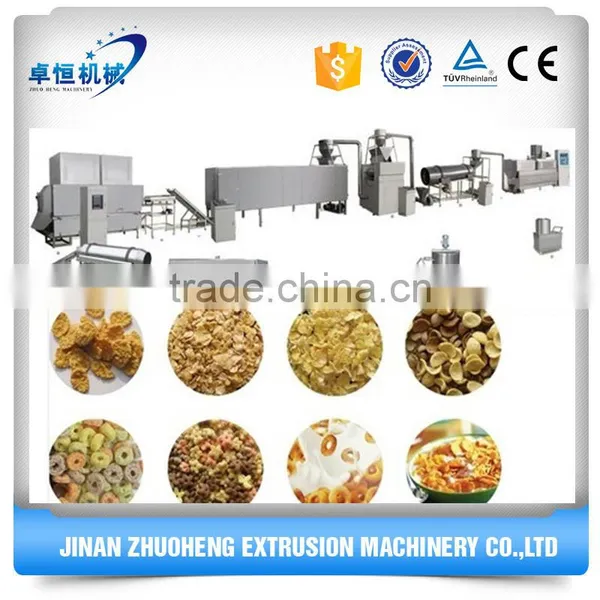

Extruded corn flakes making plant production line
Extruded corn flakes making plant production line

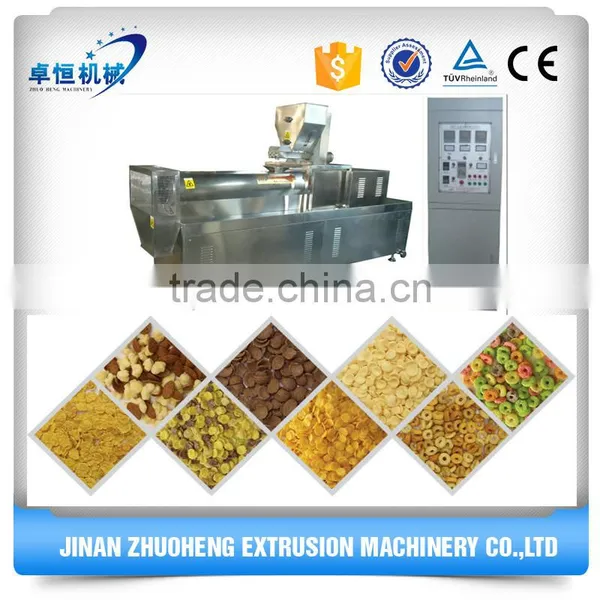

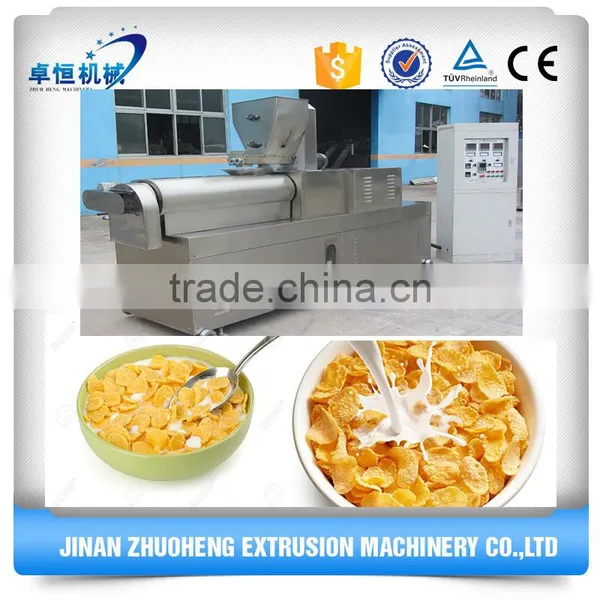

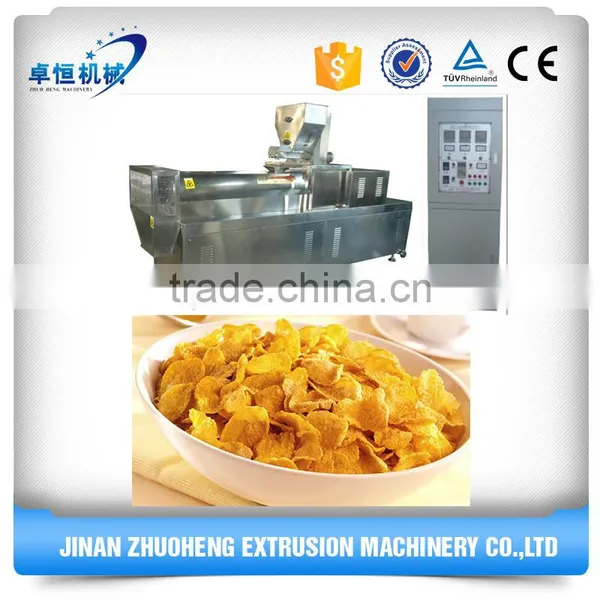

1.Zhuoheng twin-screw extrusion line efficiently produce a vast range of cereal flakes that meet an evolving demand for consumption at breakfast or snack.
Extruded corn flakes making plant production line is simpler and more cost effective compared with batch cooking systems traditionally used for flakes manufacturing.
2. The twin-screw extrusion technology is at the core of this very flexible and scalable process.
This technology is ideal to meet the market demands and breakfast cereal manufacturing;
Many raw materials are eligible with coating recipes such as sweet syrups, honey, chocolate and other compositions.
3.Flakes and loops are the great classical breakfast food and have been adopted by a majority of consumers around the world.
Extruded corn flakes making plant production line allow to process a vast range of recipes adapted to all tastes and needs.
4.Flakes are either consumed plain or coated with a variety of sugars, malted ingredients, honey, fruit flavors, chocolate, etc.
“Corn flakes” are the most famous variety but many other cereals can be used such as wheat, rice, oats, barley, rye, buckwheat….
A new variety of “multigrain” or “multicereals” flakes made with a mix of visible cereals inclusions became very popular.
To meet the increasing demand for healthy cereals, whole grain or grains enriched with fibers, vitamins, minerals and other nutrients are also used.
Model |
Installed power |
Real power |
Capacity |
Dimension |
ZH65 |
35 KW |
22kw |
120-150kg/h |
39000x1200x2200mm |
ZH70 |
50kw |
37kw |
200-250kg/h |
41000x1500x2200mm |
ZH85 |
110kw |
75kw |
300-500kg/h |
43000x3500x4300mm |
Mixing Raw material -----Extruding----Pressing flakes-----Pre-drying----Drying----Coating----Drying----Cooling----Packing
Extruded corn flakes making plant production line advantages
1.We specialize in high capacity extruder which can reach 4000kg/h
2.The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.
3.With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.
4.SIMENS (China) Motor.
5.It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.
Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the food process.
6.Adopted the Delta inverters, ensure the extruder better running.
7.The gearbox has automatic lubrication function, which prolong service life of gears.
8.Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.
Business established more than 10 years ago, is considered as one of Chinese most respected and experienced suppliers of snack food equipment, accessories and services.We also received a number of certification
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food & feed extrusion machine
2.What's the price of your machines?
You can inquiry to us directly
3.What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.
4. Can we provide the formula to you?
We can provide basic formula for producing the food etc. And help customer to produce good quality food according customer’s detailed formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your factory size.We can design the layout according to your factory size.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefit. Please feel free to contact us or visit our website for more information.
