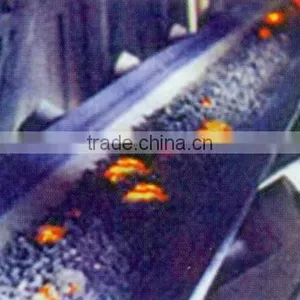

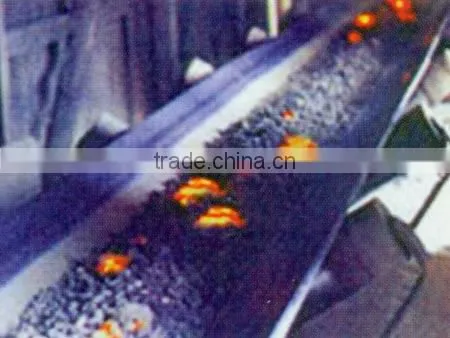

Heat resistant conveyor belts:Suitable for conveying agglomerate product, cement chamotte and other high temperature powder
Suitable for conveying agglomerate product, cement chamotte and other high temperature powder in metallurgy, coking, constructional material and casting industries.
Characteristics:
·High heat-and wear-resistance
·Good performance under designed temperature
·Long life span
Type:
1,2,3, 4
Specifications:
Type |
Belt Surface Temperature |
Application |
1 |
50C~100C |
Suitable for the condition that requires heat resistant, but the materials temperature is not so high. |
2 |
<=125C |
Suitable for the condition that requires abrasion resistant, the materials temperature is proper, or for powdery materials with a not too high temperature. |
3 |
<=150C |
Suitable for the condition that requires high temperature resistant and high abrasion resistant |
4 |
150~200C |
Suitable for the condition that requires high temperature resistant and high abrasion resistant |
EP heat resistant conveyor belt specification:
(Take EP-200 as an example)
Type |
EP-200 heat resistant |
|
|
Longitudinal full thickness tensile strength (KN/m) |
3 plies |
600 |
4 plies |
800 |
|
5 plies |
1000 |
|
6 plies |
1200 |
|
7 plies |
1400 |
|
8plies |
1600 |
|
Longitudinal elongation |
<=1.5% |
|
Rubber tensile strength (Mpa) |
>=14 |
|
Rubber tensile strength abrasion (Mpa) |
<=0.5 |
|
Fabric adhesion (N/mm) |
>=12 |
|
