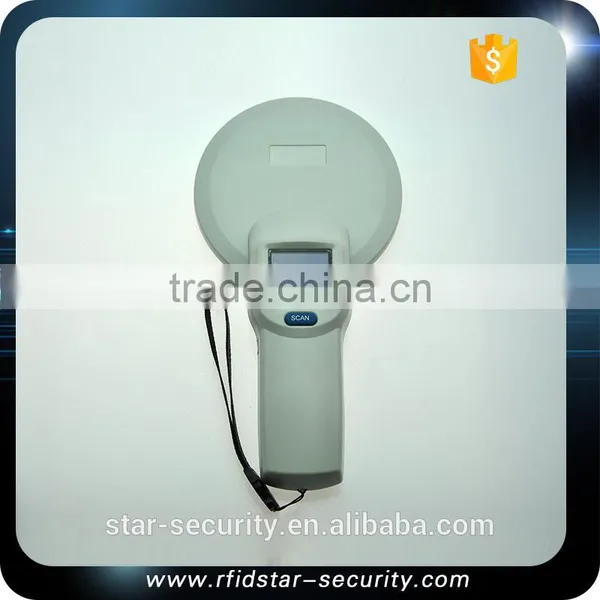

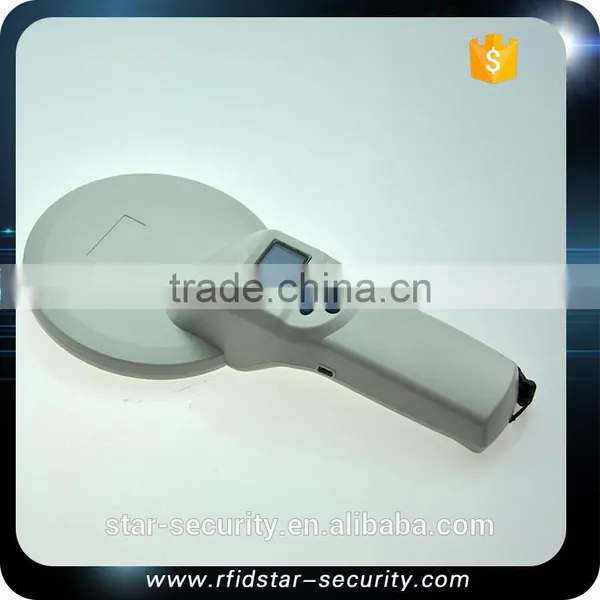

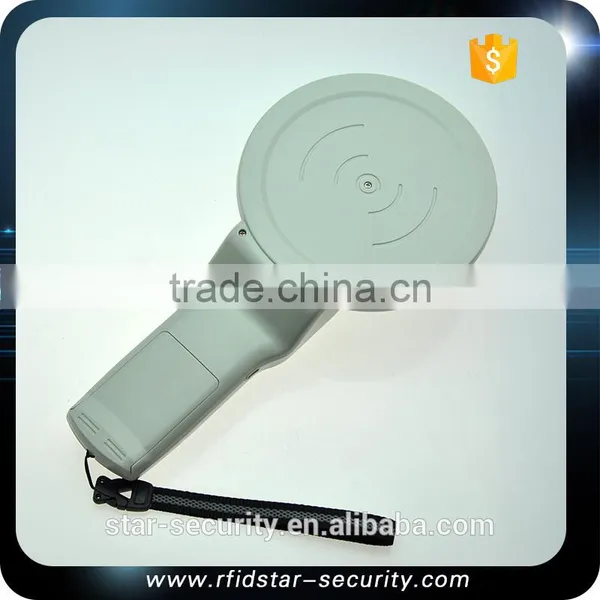

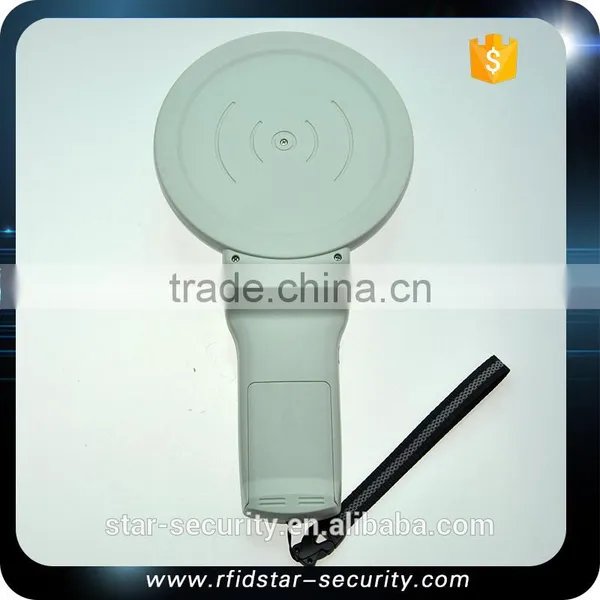

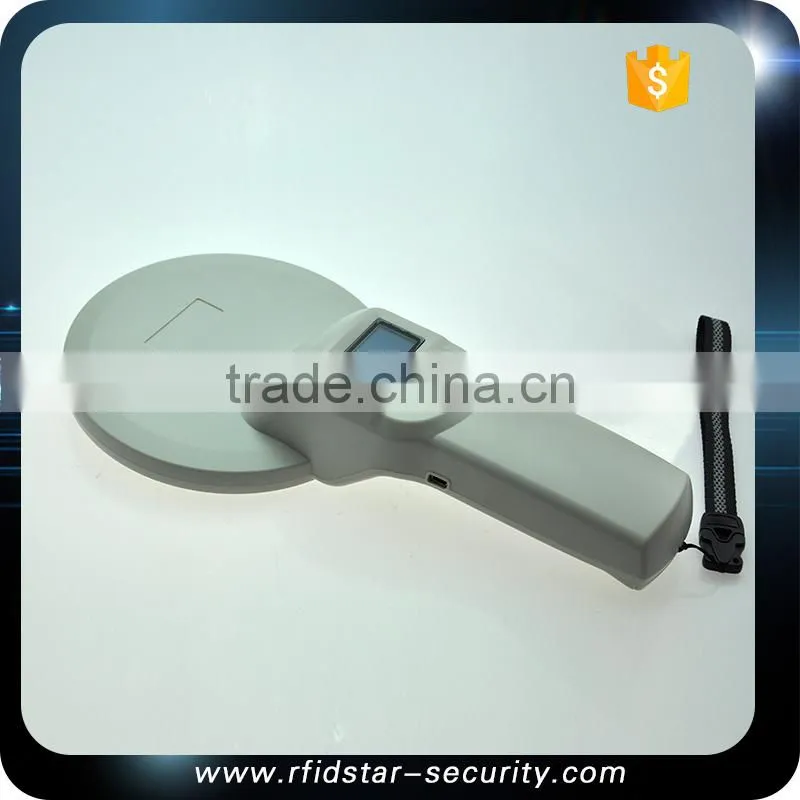

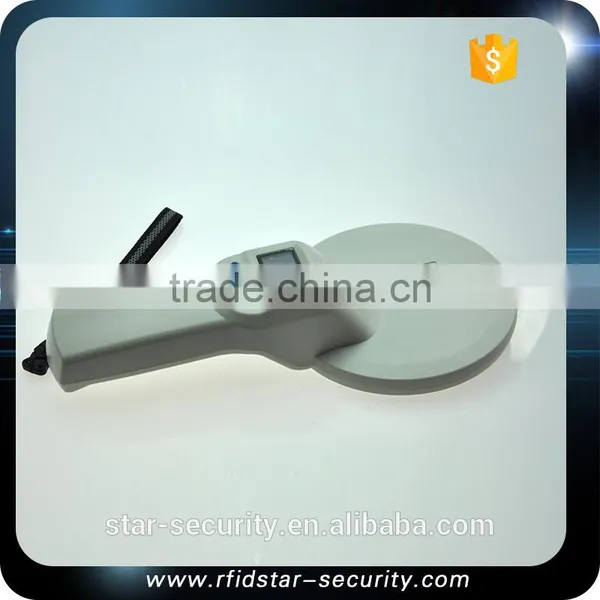

Hot selling RFID Animal Handheld Reader ST03
Production Introduction
ST03 is a low frequency tag reader that using wireless identification technology and it suppors reading EMID, FDX-B(ISO11784/85) etc. tag.
ST03 using high brightness OLED display screen, and can be seen clearly inside the house or under the strong light outside. It can store up to 6000 tag information with its built-in memory, users can send the information to the computer through USB cable or wireless connection to manage data.
This product is stable and easy to use, it can be used for animal management, resource management, railway inspection etc..
Performance parameter
Performance parameters are shown in table 1.
Table 1 ST03 performance parameter
Frequency |
134.2Khz/125Khz |
Tag format |
EMID,FDX-B(ISO11784/85) |
Reading/writing disatnce |
2*12mm glass tag>15cm 30mm animal tag>34cm |
Reading access time |
<100ms |
Signal indicator |
128*64 high brightness OLED,buzzer |
Power |
3.7V(3 AA batteries) |
Power consumption |
Working:0.9W Standby:0.04W |
Storage capacity |
6000 information(tag coding+time) |
Storage time |
>20 years |
communication port |
USB2.0,wireless USB HID(optional), Bluetooth(optional) |
Weight |
300g (without battery) |
Languaeg |
Chinese,English(Can be customized to your requirement) |
Work temperature |
-10℃~50℃ |
Storage temperature |
-30℃~70℃ |
Function and operation introduction
1 Display screen introduction
The reader can display e-tag information, time, communication mode and storage mode simultaneously with a 128*64 high brightness OLED display.
2 Basic operation
¨ Power on
Press and hold the “SCAN” key for 2 seconds in power off mode to power on and enter the main display screen.
¨ Scanning tag
Press “scan” key in main display screen, then the screen will display “scanning” and start scanning tag. The buzzer will ring once after reading the tag and the current tag information will appear on the screen at the same time. The buzzer will ring once and the screen will display “No tag found” if there’s no tag information to be scaned in 10 seconds.
¨ Data viewing
Press ‘<’ / ‘>’ key in the main screen to view tag information and time.
¨ Turn off automatically
In power on mode, the system will enter standby mode automatically if there’s no operation or data transmission within 30 seconds.
3 System setting
Press and hold “SCAN” key in power on mode to enter setting mode, the screen will be shown as below.
Image 2 Setting mode screen
In setting mode, press ‘<’/‘>’ key to select different function settings.
Attentions
1. This reader is electronic product, please transport and keep it as electrical equipment.
2. Avoid falling down from high places.
3. Do not expose this product to extreme temperatures, humidity or corrosive materials.
4. Unauthorized person can not open the casing.
5. Please use the provided data cable for connecting.
6. Try not to disassemble the battery cover frequently.
7. Please take out the battery if it has not being used for a long time to avoid damage to your product.
If your order above1000pcs microchip, we will send 2pc syringe for free!
if your order above5000pcs microchip, we will send 10pcs syringe for free!
If your order above10000pcs microchip,we will send 30pcs syringe for free!

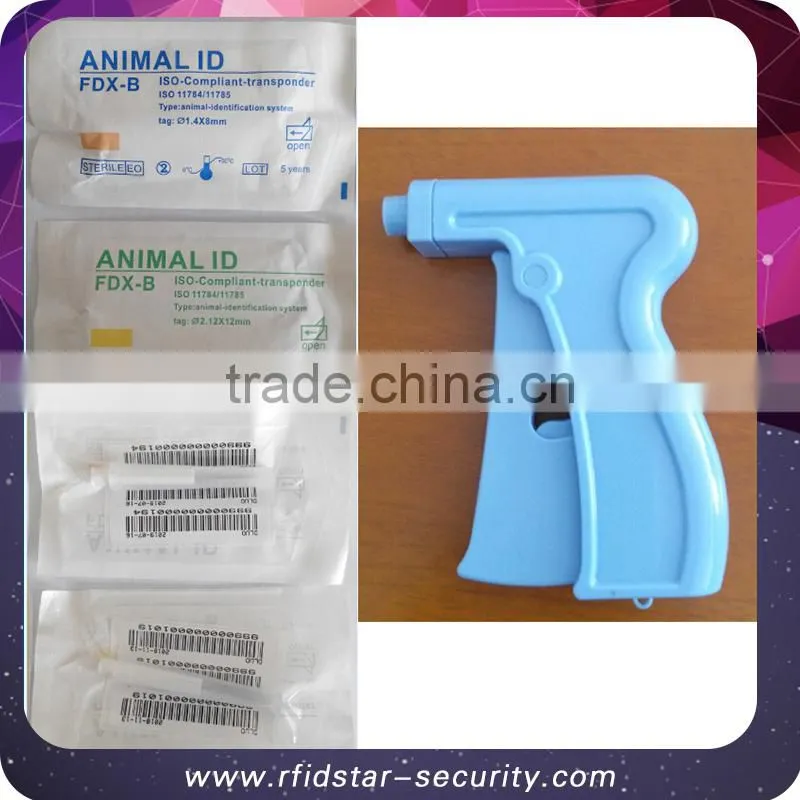

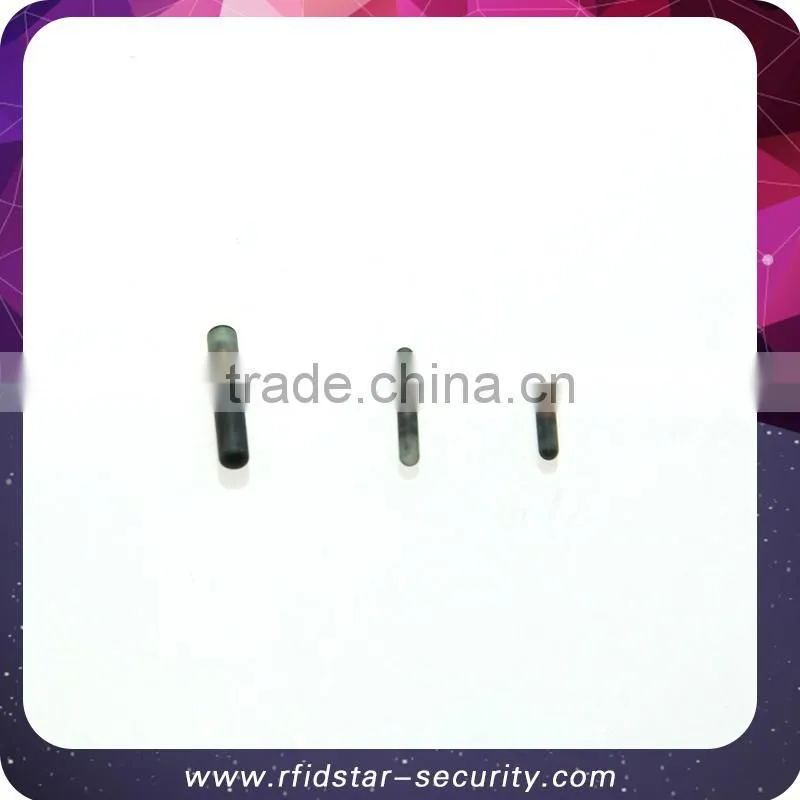

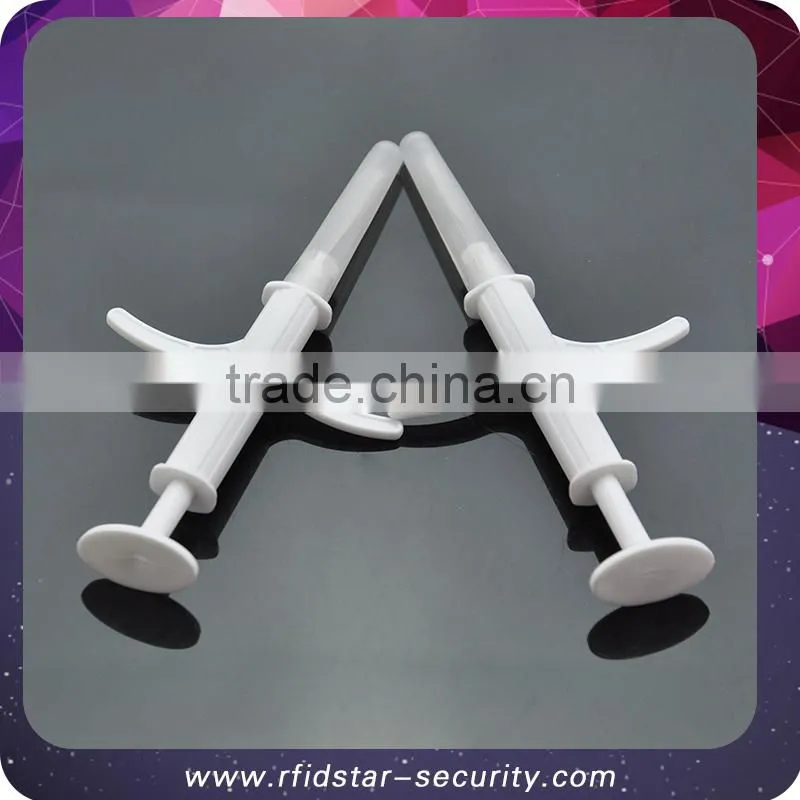

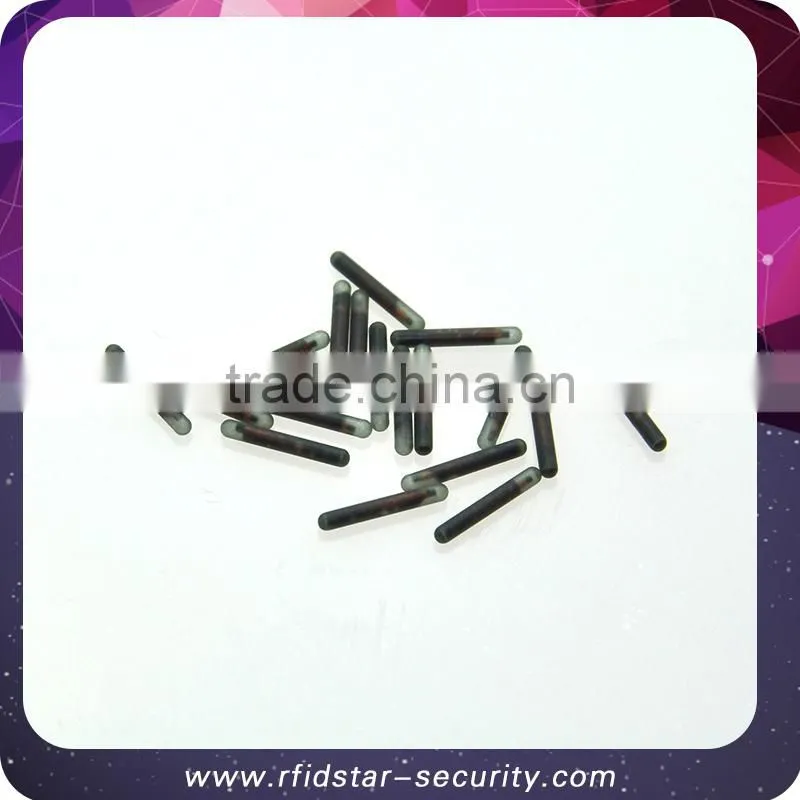

Above microchip and syringe only for 134.2KHz FDX-B 2X12MM size.
·Fast lead time
·1 Year Warranty
·Stable delivery way
·Strict QC management
·Timely information feedback
·Small MOQ(Order Quantity Flexible)

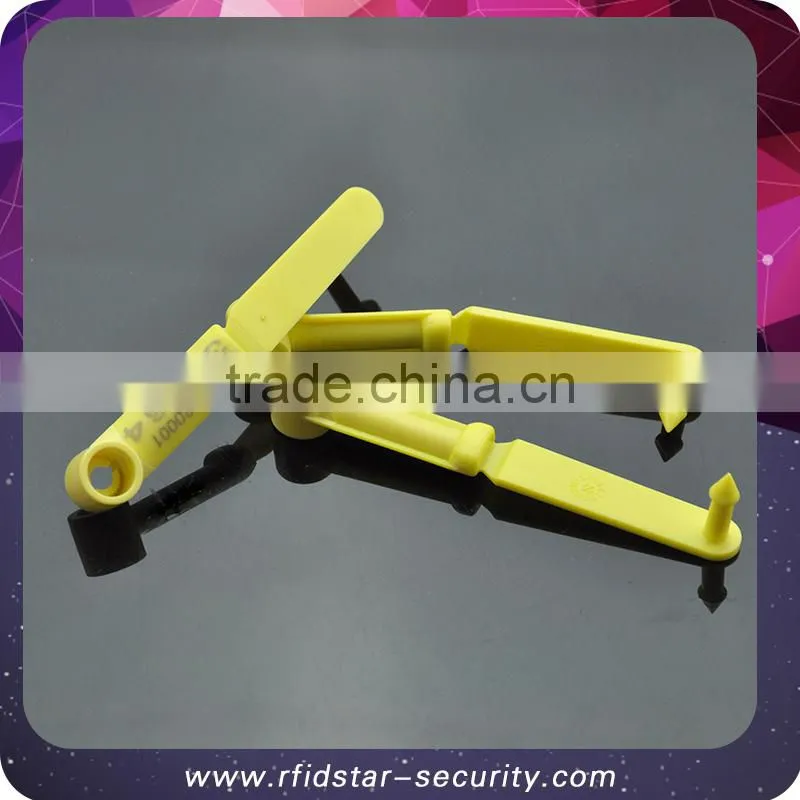

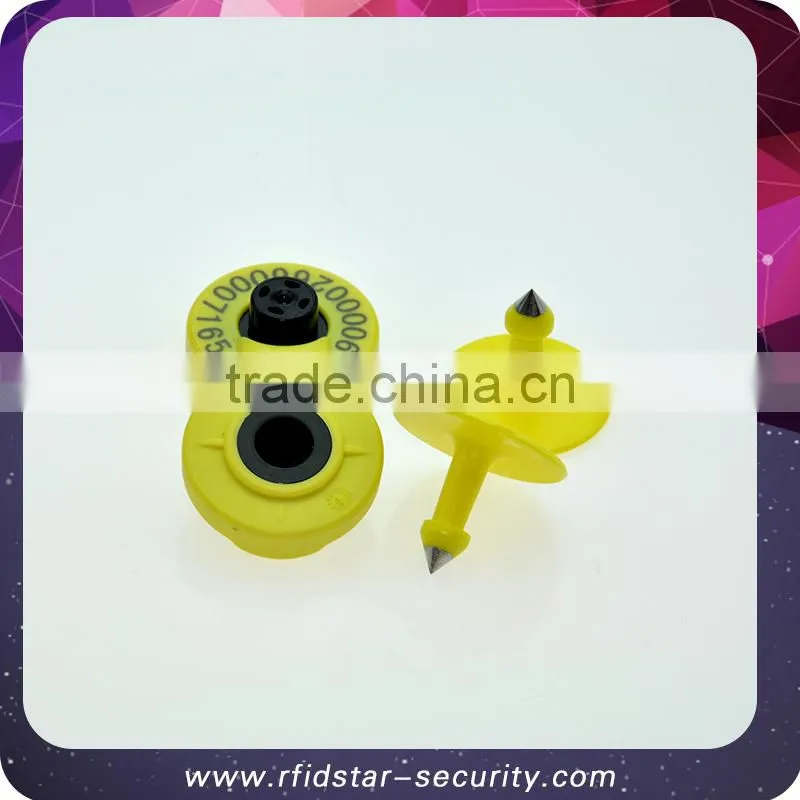

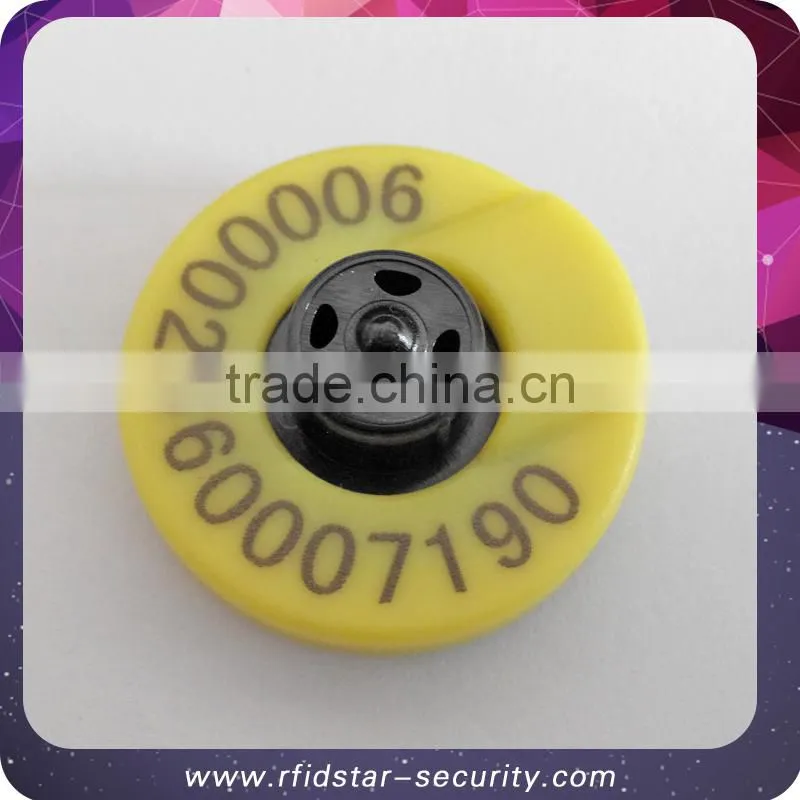

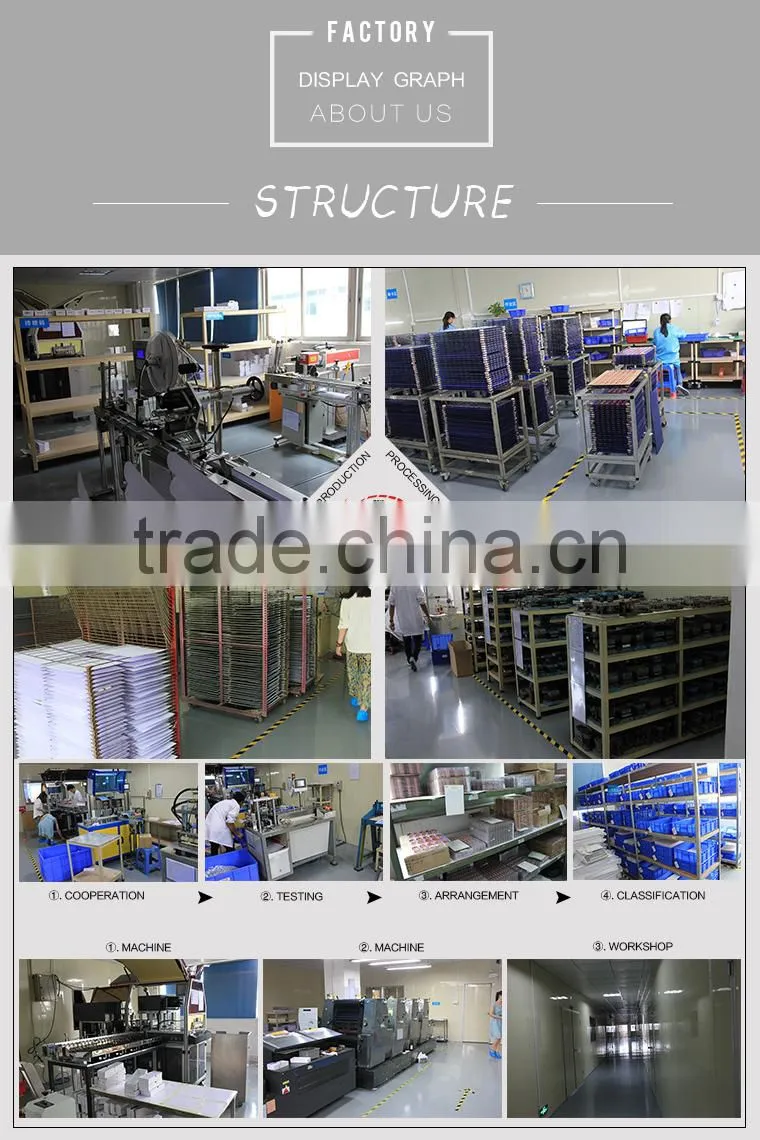

STAR SECURITY TECHNOLOGIES(Shanghai)Co., Limited is a professional manufacturer of Security Products, Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have Special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
Q: For this animal microcip,it's have GPS function?
A: No, all animal microchip have no GPS function, our microchip just like the ID number give to the animal. then you can management the animal by the ID.
Q:For the waterproof type items,it's 100% waterproof?
A: Yes, if we marked the products is waterproof, that's mean 100% waterproof.
Q:What's the lead time?
A: For normal products, like blank chip cards. Weigand interface reader,1.4x8mm,2x12mm,1.25x7mm microchip&syringe, we will have some there products in stock to keep the fast delivery.
Q:Is there can accept Custom?
A: Sure, we accept Custom. Like the access control reader, we can make the special interface,RS232,RS485,Dual frequency reader(ID&IC at same time), 1M long wiring,logo printing...
RFID Card,RFID Tag,RFID Label, printing by your design,or design for you follow up your requirement
