Copmetitive Price Long Working Life CRB550 Reinforcing Welded Wire Mesh for Building
- Xingang Port
- T/T L/C D/P D/A Credit Card
You May Like
-
Copmetitive Price Long Working Life Building Ribbed Bar Welded Steel Reinforcing Wire Mesh
-
Copmetitive Price Long Working Life Construction Reinforcement Steel Welded Wire Mesh
-
Copmetitive Price Long Working Life 6m*2.4m Reinforcement Welded Wire Mesh Bar Panel
-
Copmetitive Price Long Working Life 8 Gauge Reinforcing Welded Metal
-
Copmetitive Price Long Working Life HRB500 Reinforcing Welded Wire Mesh
-
Copmetitive Price Long Working Life 6x6 Reinforcing Welded Wire Mesh Panels
Product Details
| Place of Origin | Hebei, China | Brand Name | YACHAO | |
| Model Number | YC-RM01 | Material | Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire | |
| Type | Welded Mesh | Application | Construction Wire Mesh | |
| Hole Shape | Square | Aperture | 6''x6'' | |
| Wire Gauge | 5.0-16.0mm |
Product Description
Copmetitive price long working life CRB550 reinforcing welded wire mesh for building
Product description
Steel mesh reinforcement is considered to be a new, efficient and high quality material for construction. With dense spacing of reinforcing steel bars, longitudinal bar and transverse bar will form into netted texture for anchoring bond.

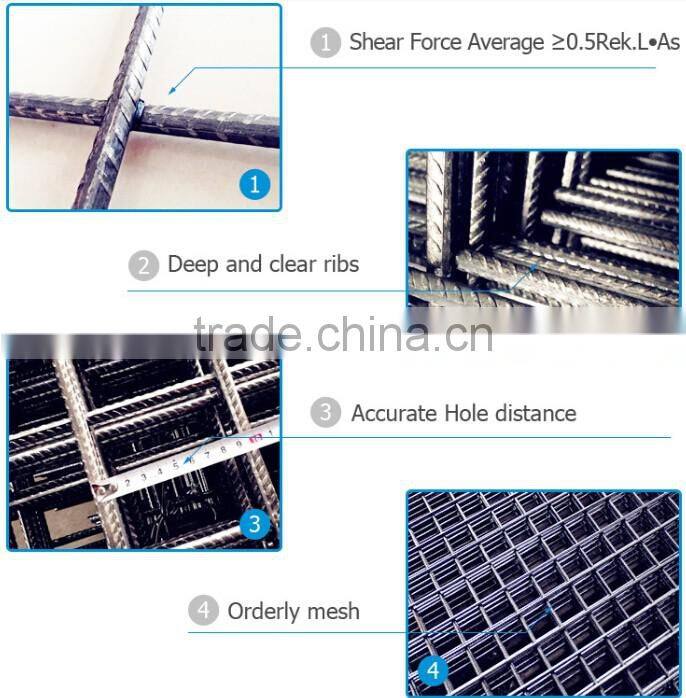

Feature
• Economic transport;
• Ease and economy of storage space;
• Reduction of implementation time (high application performance);
• Installation does not require skilled labor
• Quality ensured by the implementation in factory;
• Reduction of waste and failings.
Specification
Construction used reinforcing welded steel wire mesh panel
1.Material of Reinforcing mesh: steel bar, thread steel bar, thread rod etc.
2.Diameter: 5mm~14mm
3.Mesh openning:5*5cm, 10*10cm, 5*10cm etc
4.Length:1m~5.8m
5.Width:1m~2.2m
6.Mesh opening length:100/150/200/300/400mm
7.Mesh opening width:100/150/200mm
| Mesh size [1] | Wire sizes | Area[2] | Weight [3] | Sheets | Sheet weight (kg) | Sheets per bundle | Square metres per tonne | |
BS Reference | Main | Main | Main | (Kg) |
|
|
|
| |
Square |
|
|
|
|
|
|
|
| |
A 393 | 200mm | 10mm | 393mm² | 6.16 | 15 | 70.96 | 18 | 162.34 | |
A 252 | 200mm | 8mm | 252mm² | 3.95 | 22 | 45.50 | 28 | 253.16 | |
A 193 | 200mm | 7mm | 193mm² | 3.02 | 29 | 34.79 | 34 | 331.13 | |
A 142 | 200mm | 6mm | 142mm² | 2.22 | 40 | 25.57 | 46 | 450.45 | |
A 98 | 200mm | 5mm | 98mm² | 1.54 | 57 | 17.74 | 60 | 649.35 | |
Structural |
|
|
|
|
|
|
|
| |
B 1131 | 100mm | 12mm | 1131mm² | 10.90 | 8 | 125.57 | 10 | 91.74 | |
B 785 | 100mm | 10mm | 785mm² | 8.14 | 11 | 93.57 | 14 | 122.85 | |
B 503 | 100mm | 8mm | 503mm² | 5.93 | 15 | 68.31 | 18 | 168.63 | |
B 385 | 100mm | 7mm | 385mm² | 4.53 | 20 | 52.19 | 24 | 220.75 | |
B 283 | 100mm | 6mm | 283mm² | 3.73 | 24 | 42.97 | 30 | 268.10 | |
B 196 | 100mm | 5mm | 196mm² | 3.05 | 29 | 35.14 | 36 | 327.87 | |
QA
Anping Yachao wire mesh

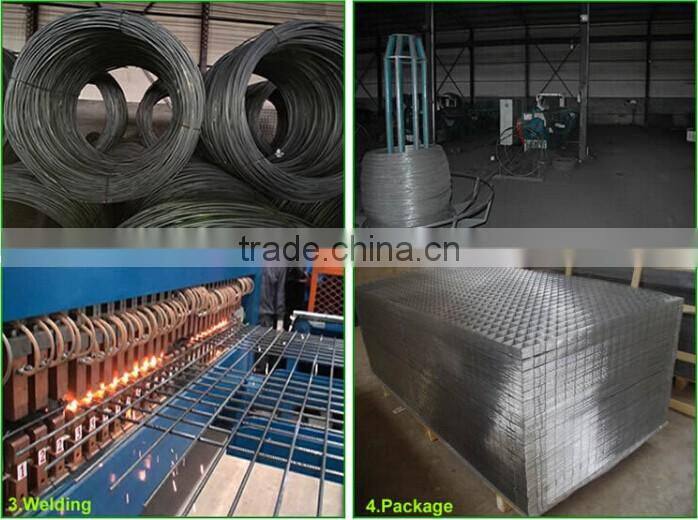

Manufacturing Process

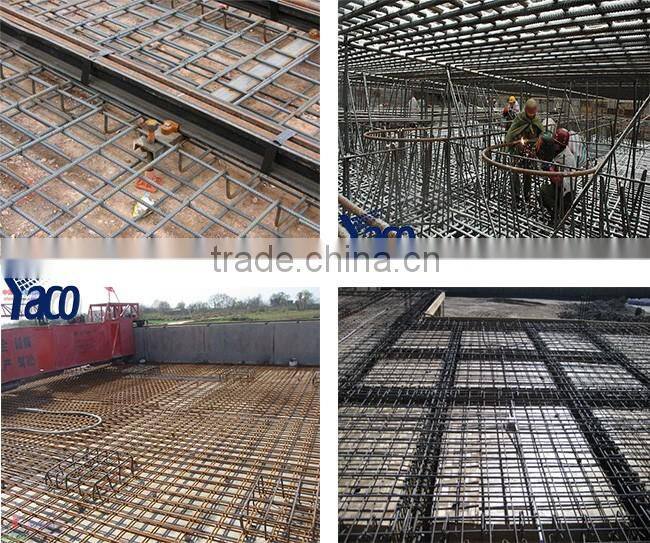

Application
Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

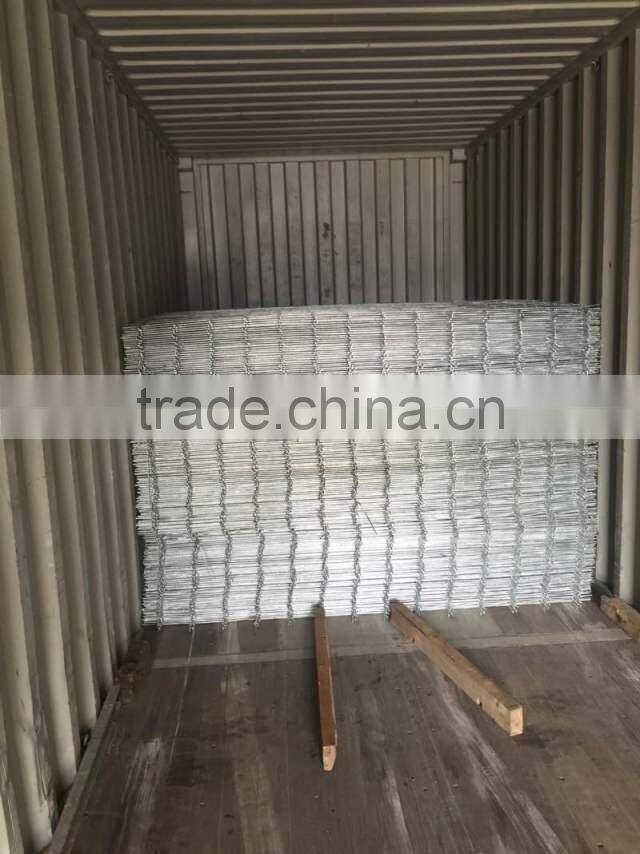

Packaging Details: Waterproof paper, in bulk, or according to the requirement of customers.
![]() | ![]() |
Delivery Detail: 7-15 days
Anping Yachao Hardware Wire Mesh Manufacture co.,ltd.
How to order
1. Choose item number on the website which you like and contact us;
2. We will send you newest quotation with pic, price, size, color, packing details, MOQ;
3. Make order list to us;
4. Sign sales contract, we will make invoice send to you;
5. Start mass production and we will inform you production status.
6. Pay the balance before shipping.
7. Arrange shipment by express, Air or Sea (booking , container loading and customs declaration)
8. Sign for the goods and deliver to you.
