aluminum 16 gauge circle perforated metal mesh
Product description
Perforated metal is one of the most versatile products on the market today. A fully functioning product by its shape of perforated opening, gauge and size--it can be tough in gauge and work hard at screening and filtering a variety of solids in the marketplace. On the other hand, its same features can be lightweight in gauge, have small or large optically appealing openings and be very suitable for many architectural and display uses. We have the flexibility to manufacture stainless steel perforated metal in thicknesses from foil to thick plate.

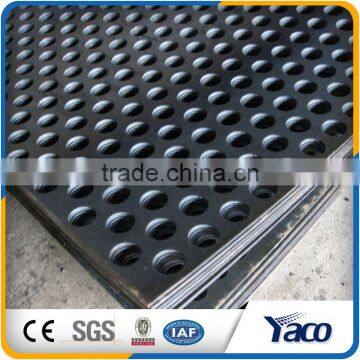

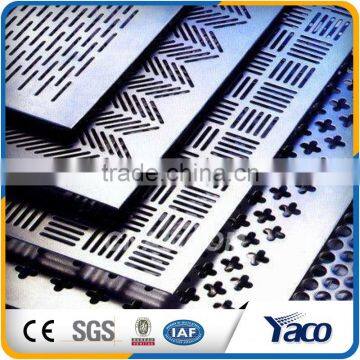

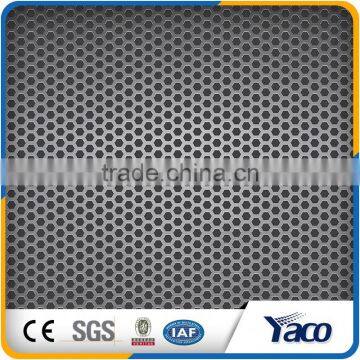

Product display
Product specification
Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
0.045" | 1.14mm | 0.066« | 0.033-0.039" | 0.84-0.99mm | 37.00% |
1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41.00% |
1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23.00% |
5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35.00% |
0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38.00% |
3/32" | 2.38mm | 5/32" | 0.053-0.066" | 1.35-1.68mm | 33.00% |
1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40.00% |
5/32" | 3.97mm | 3/16" | 0.027-0.066" | 0.68-1.68mm | 63.00% |
3/16" | 4.76mm | ¼" | 0.027-0.127" | 0.68-3.23mm | 50.00% |
1/4" | 6.35mm | 3/8" | 0.033-0.111", 0.25" | 0.84-2.82mm, 6.35mm | 40.00% |
3/8" | 9.52mm | ½" | 0.053-0.082", 3/16" | 1.35-2.08mm, 4.76mm | 51.00% |
3/8" | 9.52mm | 9/16" | 0.059", 0.119" | 1.50mm, 3.02mm | 40.00% |
1/2" | 12.70mm | 11/16" | 0.033-0.127", 3/16" | 0.84-3.23mm, 4.76mm | 48.00% |
1/4" Hex | 6.35mm Hex | 0.285 | 0.027-0.033 | 0.68-0.84mm | 76.00% |
3/8" Sq. | 9.52mm Sq. | Cane« | 0.053-0.066" | 1.35-1.68mm | 51.00% |

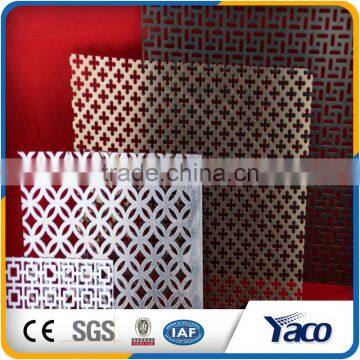

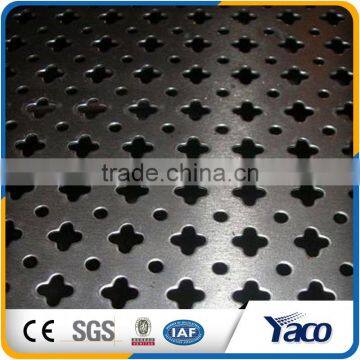

Pattern show
