hot galvinized metal poultry chicken cages
| user | Type | Tiers /set | size | cell size | capacity/set | |||||||||||||
layer |
A type | 3 tiers | 195*230*150 cm/set | 39*38*38cm /cage | 90 chickens | |||||||||||||
3tiers |
195*230*150cm /set 215*230*150cm /set |
39*41*41cm/cage 43*42*40cm/cage | 120 chickens | |||||||||||||||
| 3 tiers | 215*235*150cm /set | 43*50*41cm/cage | 150 chickens | |||||||||||||||
| 4 tiers |
195*265*170 cm/set 215*265*170 cm/set |
39*41*41cm/cage 43*42*40 cm/cage |
160 chickens | |||||||||||||||
Material:
Q235 national standard double cold glvanized bridge steel cage,white PVC feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized seel shelves,closed-end pressure-reducer.
H type layer cage
| item (tiers ) | dimenction (L*W*H cm ) | cell size | capacity / cage | capacity /set |
| 3 | 228*240*243cm | 45*60*41cm | 6 | 180 |
| 4 | 228*240*300cm | 45*60*41cm | 6 | 240 |
| 5 | 228*240*357cm | 45*60*41cm | 6 | 300 |
| 6 | 228*240*420cm | 45*60*41cm | 6 | 360 |
Feeding system for A type chicken cage or H type chicken cage:

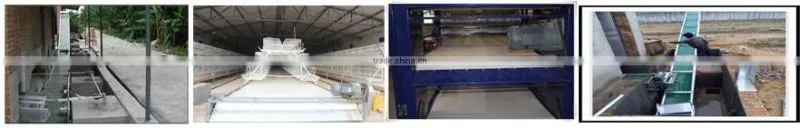

Manure cleaning system for A type chicken or H type chicken cage :

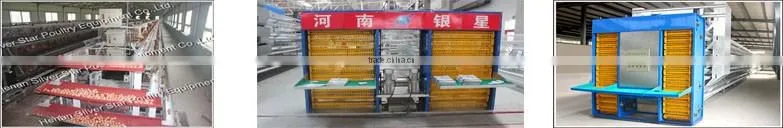

Egg collection system for A type chicken or H type chicken cage :

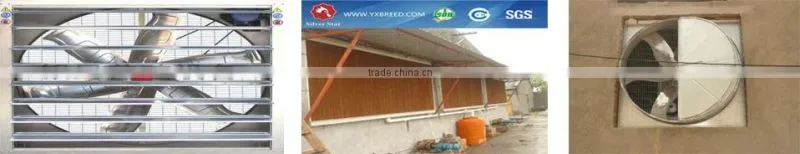

Fan and cooling pad system for A type chicken or H type chicken cage :

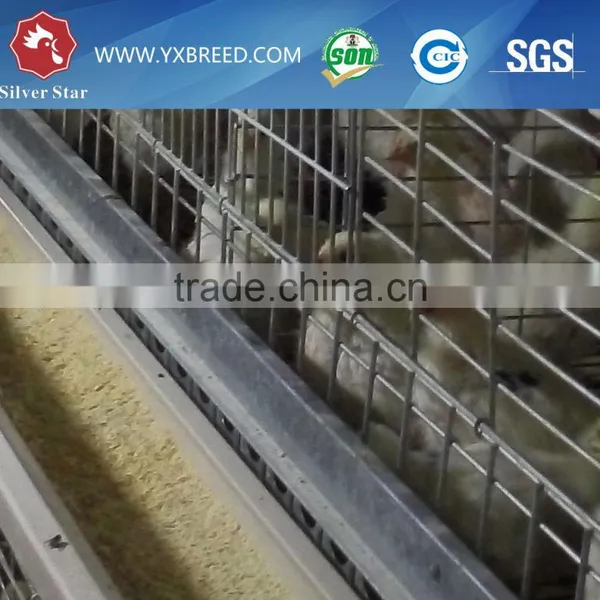

High quality chicken cages
Configuration parameters
Material: Q235 national standard bridge steel cages, white PVC trough, ball-type automatic water equipment, white PVC pipe, 3MM U-type galvanized steel shelves, closed-end regulator. Advantages: National standard material cages, good elasticity, deformation, life does not sag. With a perfect double-dip galvanizing, the cages do not rust within a few years, the service life can reach more than 12 years. Science cage design, and effective to reduce the fatigue of chicken in a cage, increase egg production. Reasonable space layout, so the chicken in a cage accident mortality rate was 0, egg breakage rate is 0.
1.The new white PVC: material PVC trough, compression heat, deformation, not broken. Service life of 15 years. Ability to withstand compression: any adult can walk on it.
2.3MM U-type galvanized steel shelf: national standard 3MM thick steel plate, U shape design. Can withstand pressure of 350 kg. With double-dip galvanizing, the age of 15 years.
3.Automatic water valve device: 360-degree rotating design, traffic, water enough. Watertight. Chicken is easy to meet drinking water needs. Imports of stainless steel sphere. Useful life of 14 years. 3 years of damage or leakage, free replacement. (Except artificial damage)
4White PVC pipe new PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years.
5Closed regulator: fully enclosed design, voltage regulator and filter with one, you can adjust the length of the sheds any water pressure

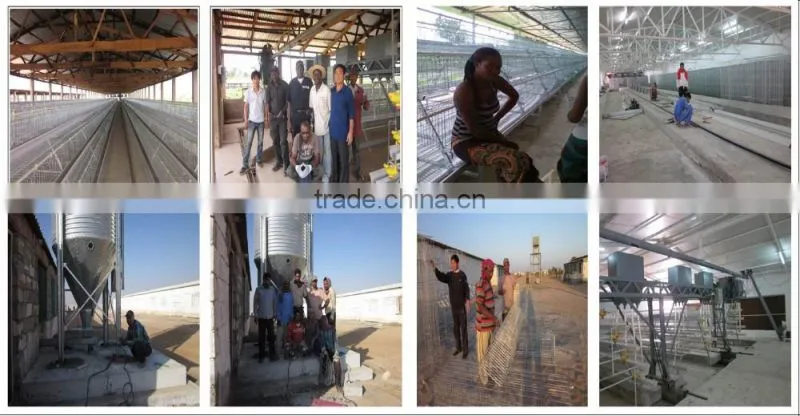

Customers visiting :

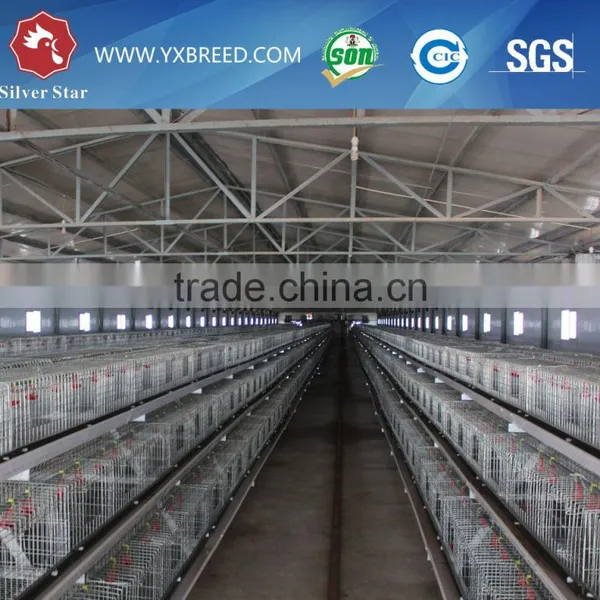

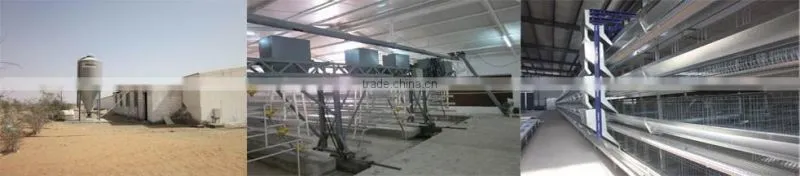

Project case:
The feed house size is 120L*11W*3H .total 3 row ,56 cages per row.120 chicken per cage ,168 units cages total.catacity :20160 chicken total.

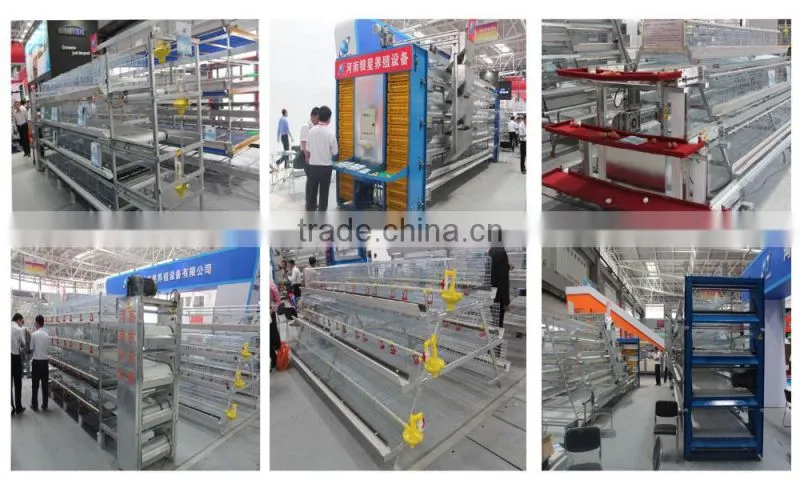

our products show:
H type information:
if you want use this one type,you need to feed more than 30000 chicken.this type is a full automatic machine.including drinking water system,feeding system ,automatic manure cleaning system,automatic collecting egg machine ,cooling pad and etc.
Delivery time :
deliverry time is around 15 - 25 working days.need to according the order.

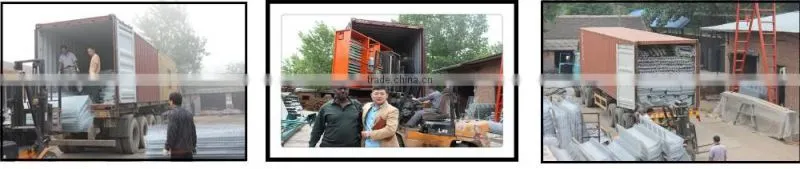

Packing details :

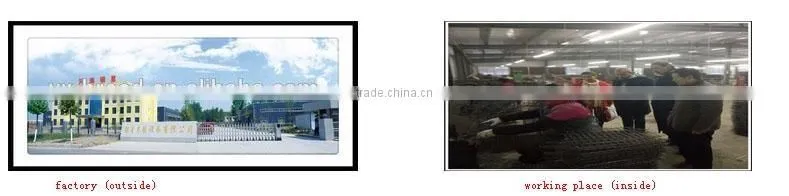

Sliver Star company established in 1991,specializing in producing layer,broiler chicken cage and poultry equipment for more than 20 years.
We have been export to all part of the word,like pakistan ,russia ,south africa and etc. If you trust our factory,we would like to help you in this line.
1,why we would trust your company ?
We have morn than 20 years in this line.we have a strong team.
2,what is the advantage of product ?
Good seivices ,best price with high quality ,fast delivery time.also ,we can send our engineer to your country to help you.
3,What is your payment?
1)T/T 30% In advance and the 70% after you received the copy of BL
2)We can accecpt L/C
3)Alibaba credit guarantee payment
4,what is your minimum order quantity ?
MOQ is one 20 feet container
5,how many chicken cage for 20feet container ?
One 20 feet container can loading 100-150 set
