Help CenterRazor Blade Wire (factory)
Related Products
Specifications
Stainless steel blade barbed wireMaterial:stainless steel and Hot galvanized
Surface shape: blades shape

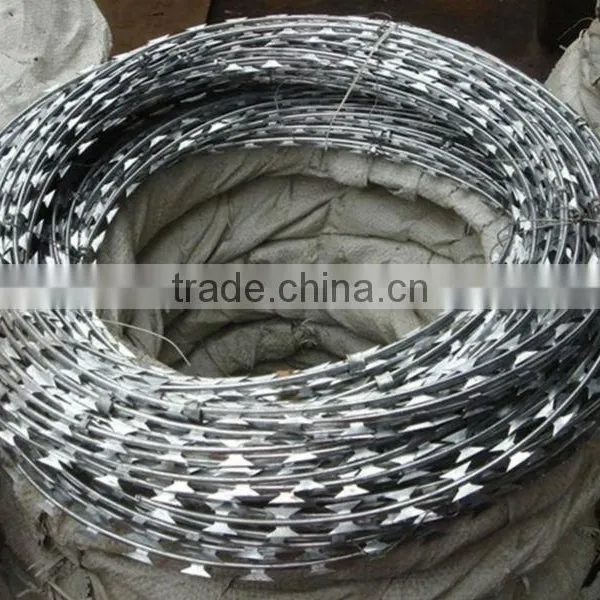

Stainless steel blade barbed wire
>>Material:stainless steel and Hot galvanized
>>Surface shape: Sharp blades shape
>>Function:Very good protective and isolation effect
>>Shape:Snake belly blade thorn rope,Spiral blade thom rope,straight blade thom rope,Flat blade thom rope
>>Function:Mainl used garden apartnents,office units,pridons,stations,border rounder protection,etc.
Usual Blade Specification:
| Specification | blade (thichness) |
wire (dia) |
Blade (length) |
blade (width) |
Blade (spacing) |
|
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 | |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Blade Specification | ||||
| outside diameter | No.of loops | standard length per coil | type | notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Flat blade barded wire
| Specification | ||
height |
length | weight |
500mm(20in) |
15 m(50 ft) | 9.5KG(21lbs) |
| 700mm(28in) | 15 m(50 ft) | 13KG(29lbs) |
| 900mm(36in) | 15 m(50 ft | 15.5KG(32lbs) |
Straight blade barded wire
>>Bore diameter: 5X10,10X15,10X20 (and custome's request is avalable )
>>Material and surface treatment: stainless steel and Hot galvanized wire the surface can be Plastic spraying or plastic coated
>>Galvanized: Electroplating, hot dip
>>Features: anti-corrosion, aging, sun resistance, weather resistance, etc
Snake bellyblade barded wire
Spiral bellyblade barded wire
Effect picture
workshop
