China Factory Truck Filters Making MachineZZHC-4A Type

China Factory Truck Filters Making MachineZZHC-4A Type photo-1
China Factory Truck Filters Making MachineZZHC-4A Type photo-2
China Factory Truck Filters Making MachineZZHC-4A Type photo-3
China Factory Truck Filters Making MachineZZHC-4A Type photo-4
China Factory Truck Filters Making MachineZZHC-4A Type photo-5
China Factory Truck Filters Making MachineZZHC-4A Type photo-6
US$ 6,600 - 6,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Embossing Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paper Embossing Machine
Computerized Yes
Place of Origin Hebei, China
Brand Name shuangjia
Model Number SJ-4A
Voltage 380v
Power(W) 1.5kw
Dimension(L*W*H) 1800mm x 1220mm x 1350mm
Weight 800kgs
Certification CE
Warranty 6 month
After-sales Service Provided Engineers available to service machinery overseas

China factory truck filters making machineZZHC-4A type

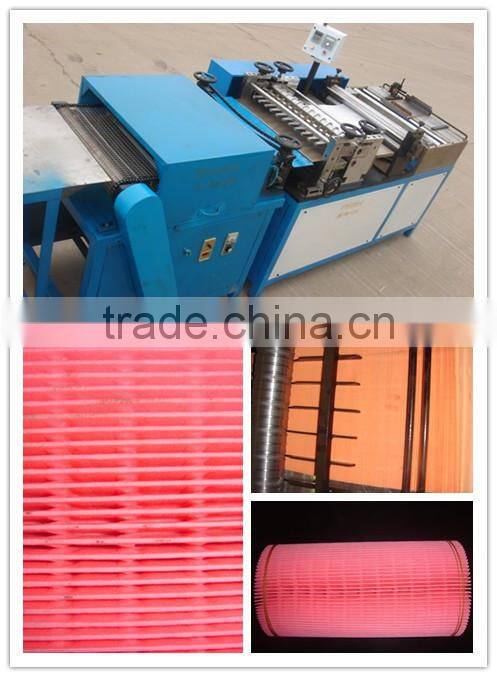

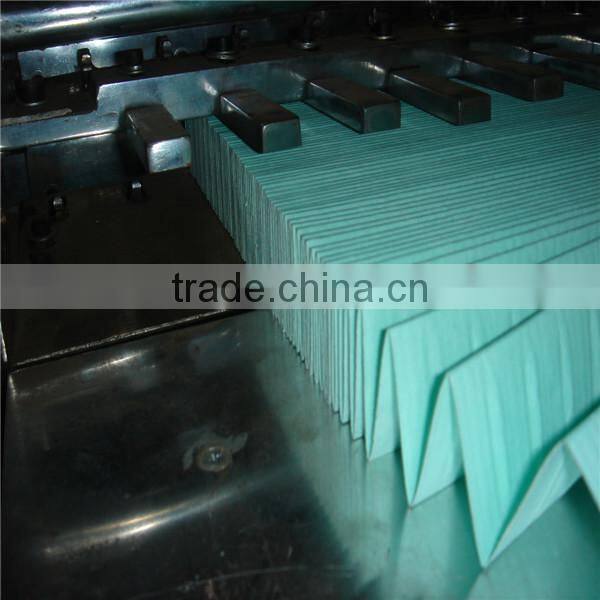

Rotary type pleating machine is a type of pleating machine designed for high speed production. They are capable of producing pleats of range of widths and depths.

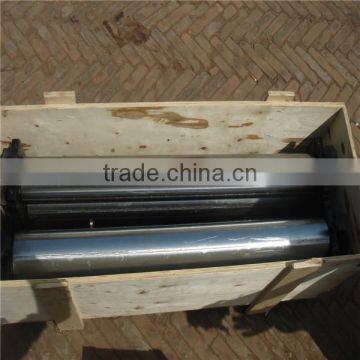

The rotary pleating machines are best suited machines for those places where there is a requirement of high production volumes of single specific filter size and pleat depth. These machines are usually not adjustable with regard to pleat sizes but the pleats of different sizes can be made by changing the set of pleating rollers. The rollers of various sizes can be used for making different pleat sizes.

China factory truck filters making machineZZHC-4A type

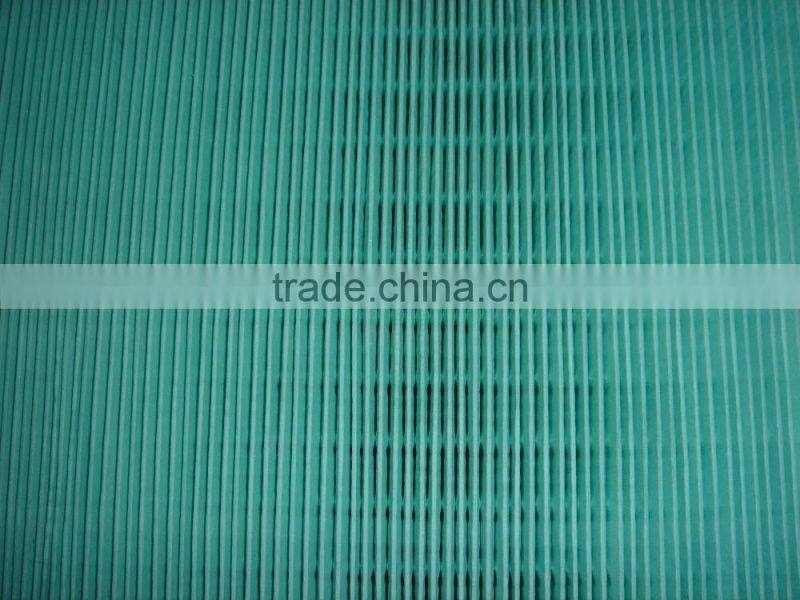

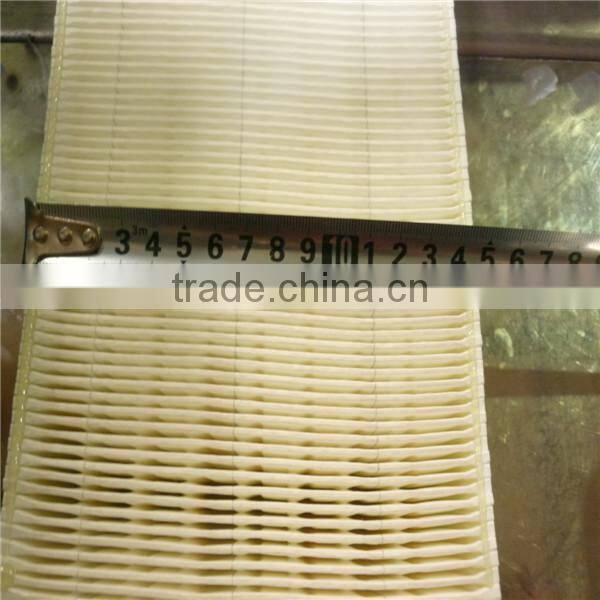

Pleat Designs
The rotary pleating machines can produce varieties of designs in the pleats like:

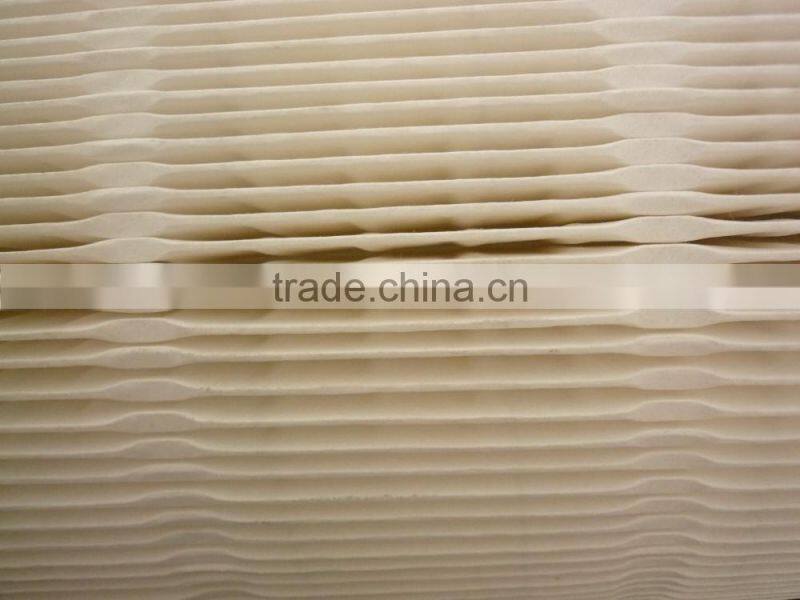

Dimple Design
Pleat Lock Design
Zig Zag Design
Other Designs
China factory truck filters making machineZZHC-4A type

China factory truck filters making machineZZHC-4A type

China factory truck filters making machineZZHC-4A type


Specification

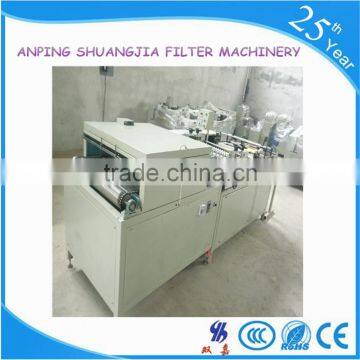

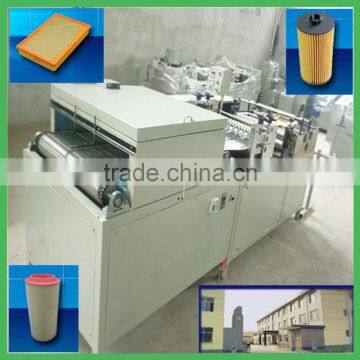

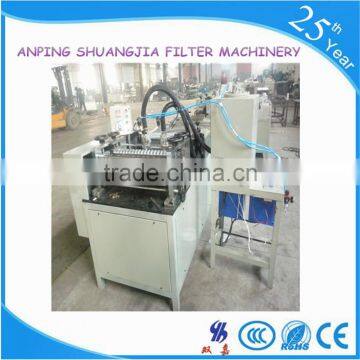

4A 650Type Filter Paper Pleating machine

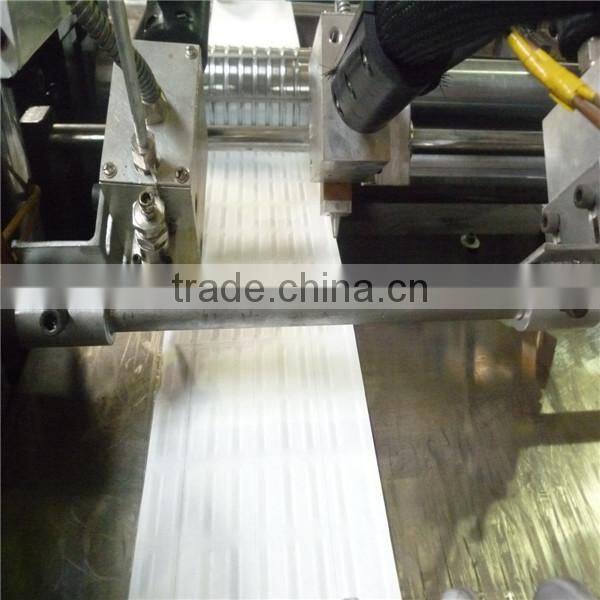

1. Pre-slitting, counter, wetting,marking, heating, pleating
2. Max. pleating width: 620mm
3. Pleating height: 18 - 75mm
4. Pleating speed: 3-40M/min
5. Power: 1.5KW 380V Total power:5kw
6. Temperature available: 0°C - 200°C
7. All speed adjustable motor
8. Machine weight: 800KG
9. Machine dimension: 1800mm x 1220mm x 1350mm

4A 780Type Filter Paper Pleating machine
1. Pre-slitting, counter, marking, heating, pleating
2. Max. pleating width: 780mm
3. Pleating height: 18 - 75mm
4. Pleating speed: 3 - 40M/min
5. Power: 1.5KW 380V Total power:5kw
6. Temperature available: 0°C - 200°C
7. All speed adjustable motor
8. Machine weight: 900KG
9. Machine dimension: 1800mm x 1350mm x 1350mm



China factory truck filters making machineZZHC-4A type



China factory truck filters making machineZZHC-4A type



China factory truck filters making machineZZHC-4A type



China factory truck filters making machineZZHC-4A type



China factory truck filters making machineZZHC-4A typeChina factory truck filters making machineZZHC-4A type



China factory truck filters making machineZZHC-4A type
