Help CenterAutomatic Chicken Feeding Machine
Related Products
Specifications
Automatic feeding systemntrolled automatically by the motor
lid structure,
3.durable.
4.use:chicken feeding.
Description for Automatic Feeding System

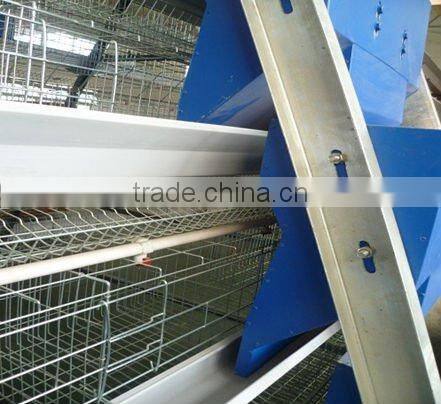

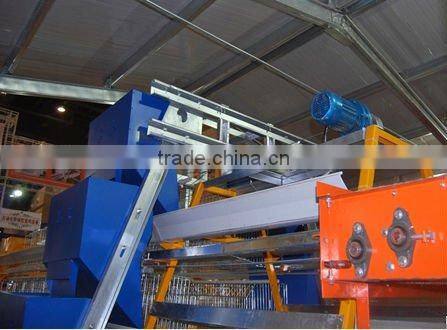

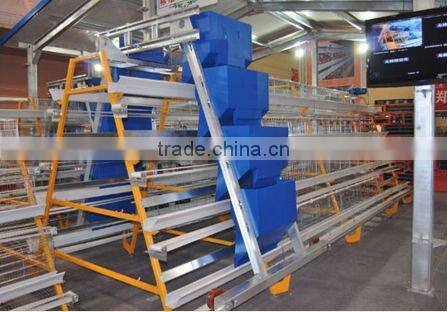

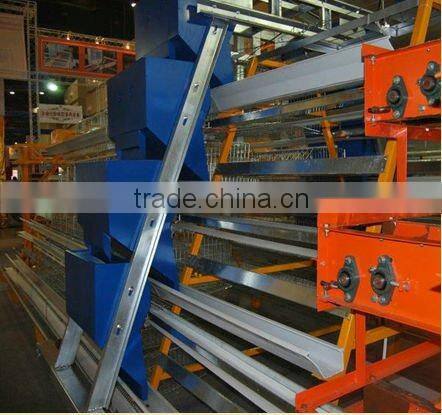

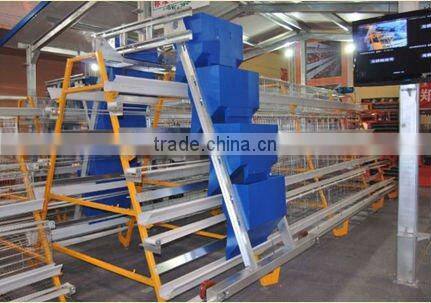

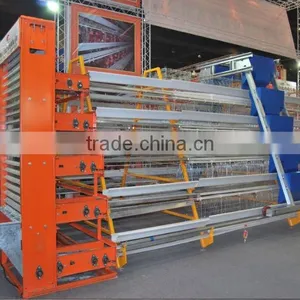

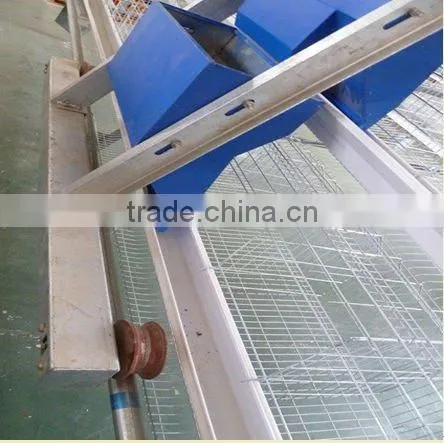

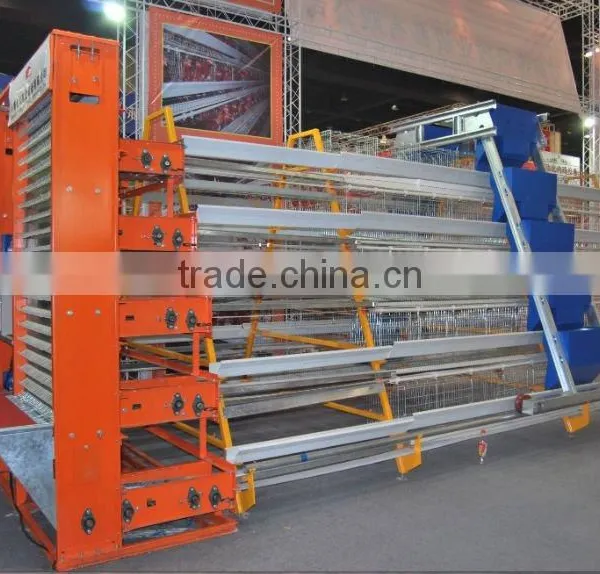

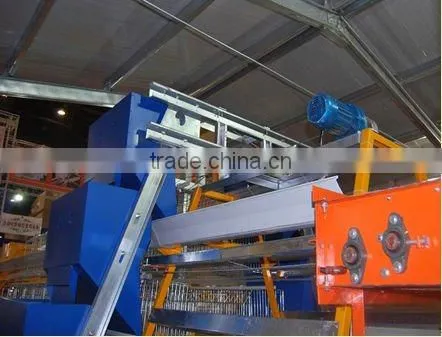

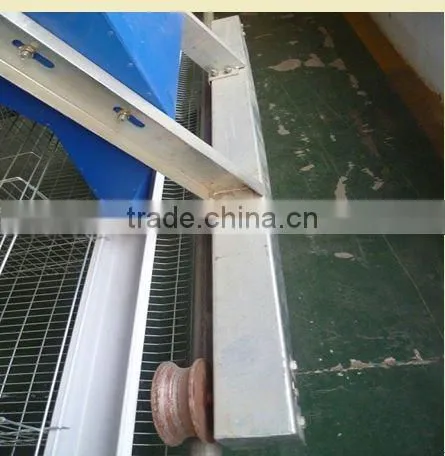

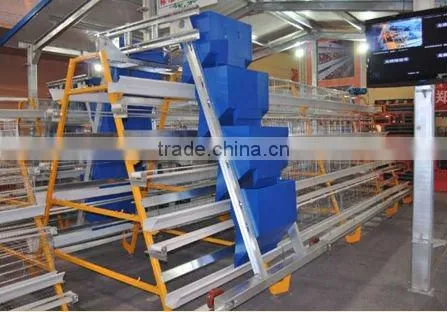

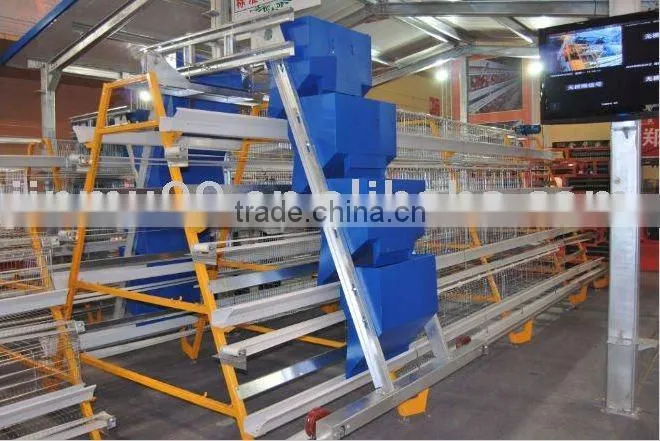

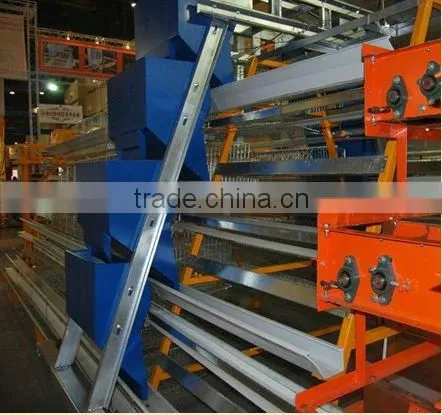

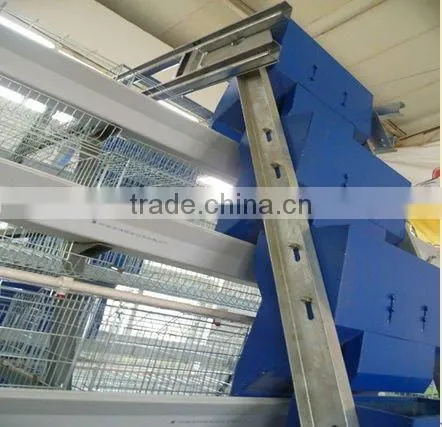

Automatic Chicken Feeding Machine
Tech-data
NO. |
Item |
Unit |
Specifications |
1 |
Spec-Modol |
/ |
9WHX-469000 |
2 |
Source Type |
/ |
AC,3-Phase Source |
3 |
Rated Power |
KW |
1.10 |
4 |
Rated Voltage |
V |
220/380 |
5 |
Hopper size: |
mm |
L660*W256*D500 |
6 |
Working Average Rate of the Crib |
g/m |
±15 |
7 |
Outline Size(L*W*H) |
m |
(2.3~2.7)×(1.2~1.5)×(2.0~0.25) |
8 |
Structure Weight |
kg |
550 |
9 |
Working Speed |
M/Min |
10--15 |
10 |
Feed Capacity of each Crib |
/ |
35kg~100kg/pc |
- material: galvanized nickel-clad
the nickel-clad size of the two sides:100*40mm net thickness:3.8mm
the nickel-clad size on the top and the orbit of the :100*40mm net thickness:3.8mm
2. Surface treatment: baking varnish hopper and hot galvanized frames
3. Tiers: 3/4/5 tiers as your requests.
4. Crib size: L660*W256*D500mm, Productivity of each Crib: ≥60Kg
5. Power of the Motor: 1.50KW for 5 tiers; 1.10KW for 4 tiers; 0.75KW for 3 tiers.
6. Rated Voltage for the equipment working: 220V
7. Working Speed: 10M--15M/Min
8. Working Average Rate of the Crib: ±15g/m
9. Thickness of the surface paint: ≥0.05mm
10. Feed Capacity of each Crib: 35kg~100kg/pc
11. Total Weight of each set(3/4/5 Tiers) : 450KG/550/700Kg
