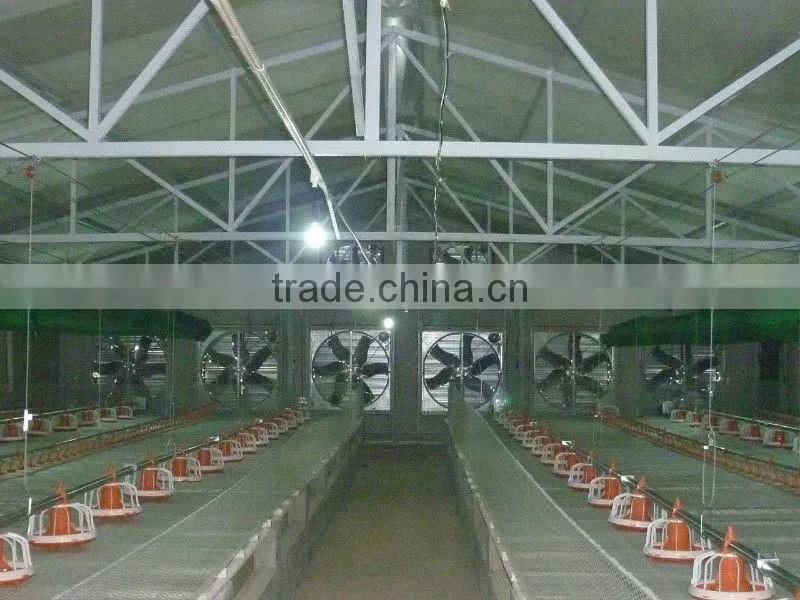

Bangchi watering and feeding system for poultry farm
good quality,lowest price and after-sale service!

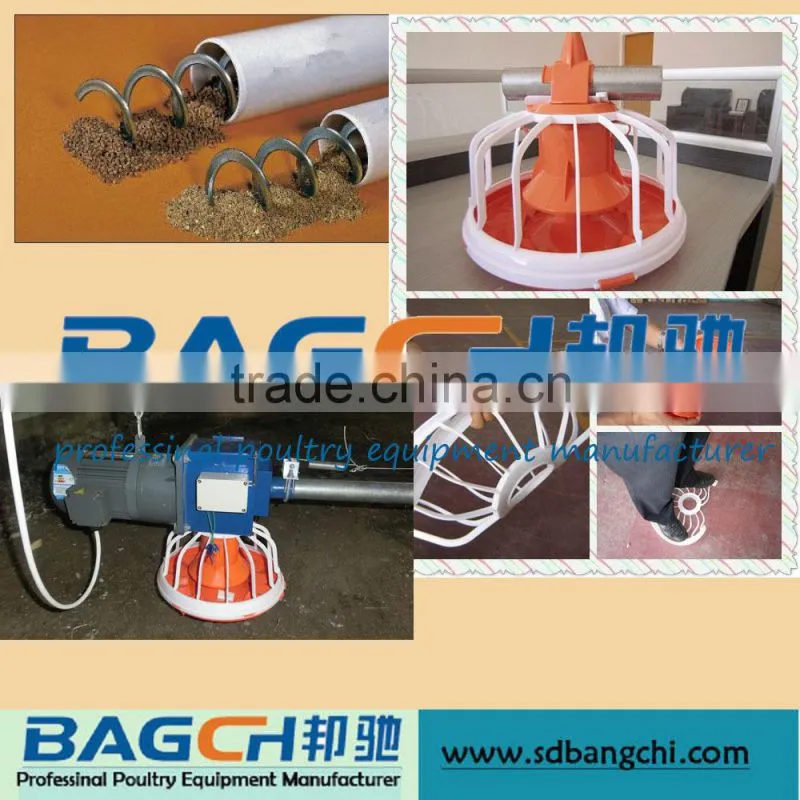

1. Bangchi poultry equipment watering and feeding system --Pan Feeding Line System
| container | 120 liter,V hopper |
| diameter of feed pan | 360mm,14 slot |
| hot galvanized pipe's diameter | 45mm with 3-4 aperture |
| motor | 380V,translation speed:450kg/h |
| winch | 350 two-way hoist winch pan |

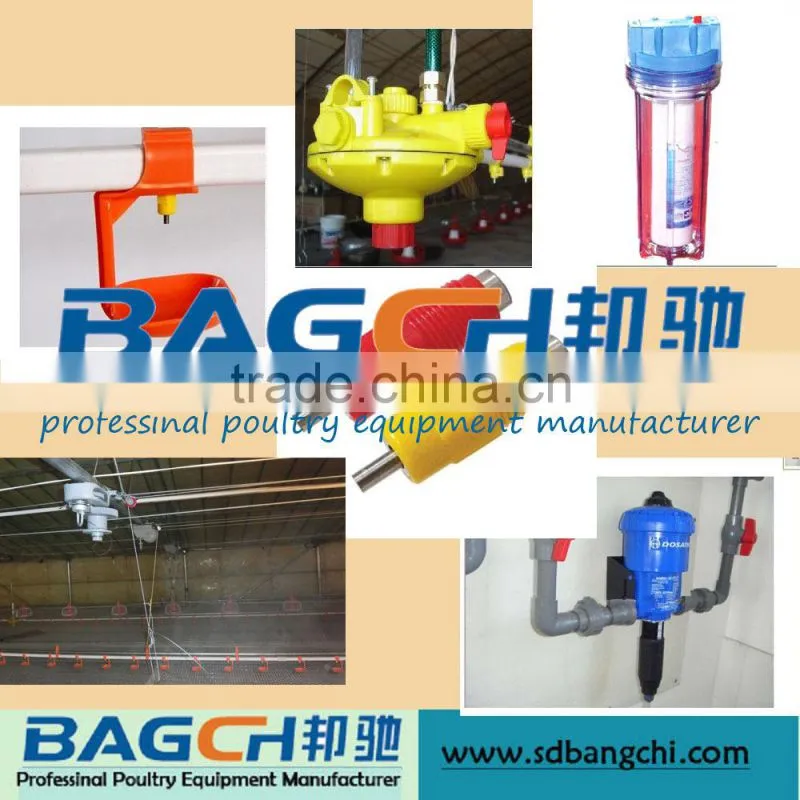

2. Bangchi poultry equipment watering and feeding system --Nipple drinking system
Max drinking length |
150m |
Drinking pipe |
8/10/12/15nipples |
Drip cup |
Single-arm/double-arm drip cup |
Nipple diameter |
25mm(roundpipe)/22mm(square) |
Drinking capacity |
8-12 birds/nipple |
Hanging point |
3m |
Water rate |
≤90ml/min |
Winch rated load |
1500 pond |
Pipe material |
PVC material |
Winch shake |
1.5m |
Water Level Display Height:
Chicken day age: 1-7 days 8-14 days More than 15 days
Water level height: 50-80mm 80-200mm 200-350mm
In summer, the chickens have large water consumption, and
the water level can be raised by 30-50mm.

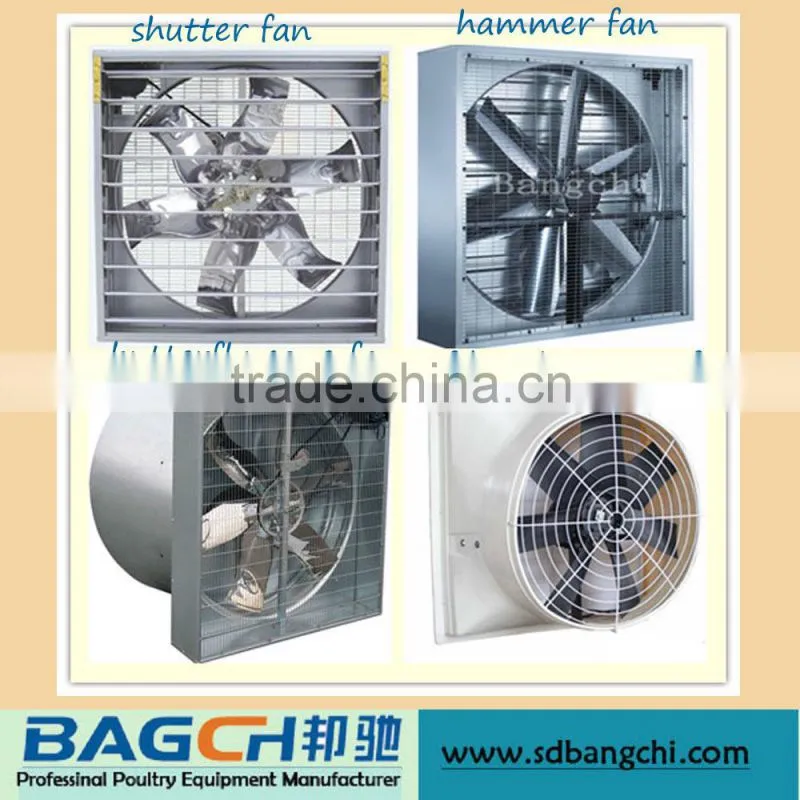

3. Bangchi poultry equipment watering and feeding system --Ventilation System
centrifugal fan's diameter
| model | blade diameter-mm | rotation speed of fan blade-rpm | air volume-m3/h | power-KW | rated voltage-V | noise decibels-DB | size-mm |
| BC-1382 | 1270(50'') | 437 | 43170 | 1.1 | 380 | ≤68 | 1380*1380*450 |
| BC-1000 | 910(36'') | 437 | 20800 | 0.75 | 380 | ≤68 | 1000*1000*450 |

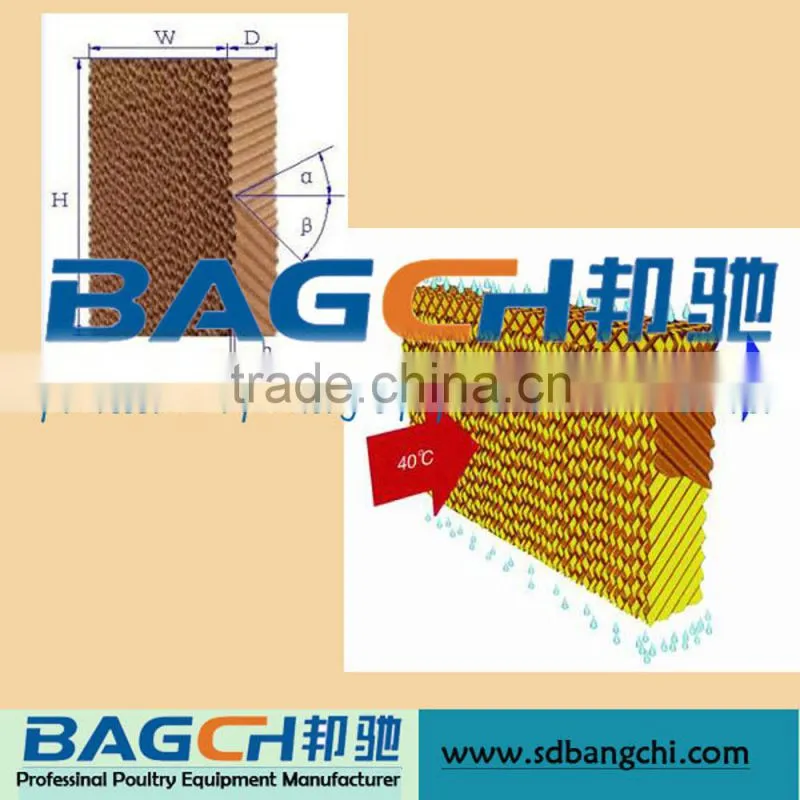

4. Bangchi poultry equipment watering and feeding system --Cooling Pad System
Available Size 7090/5090
Note: Size could be made according to the customer.
H: Height W: Width D: Depth h: corrugation height
α: corrugated sheet angle (1) β: corrugated sheet angle (2)
|
Pad 7090 |
Pad 5090 |
|
H (mm) |
1500, 1800, 2000 |
1500, 1800, 2000 |
|
W (mm) |
600, 300 |
600,300 |
|
D (mm) |
100, 150, 200,300 |
100,150,200,300 |
|
h (mm) |
7 |
5 |
|
α (*) |
45 |
45 |
|
β (*) |
45 |
45 |
|
Sizes of Evaporative Cooling Pad can be made by buyers request
5. Bangchi poultry equipment watering and feeding system --Heating System
oil heater parameter:
Basic parameters |
Unit |
BC-5A |
BC-10A |
BC-20A |
|
Rated heat |
10 000 kcal |
5 |
10 |
20 |
|
Thermal efficiency |
% |
≥90 |
≥90 |
≥90 |
|
Hot air outlet temperature |
°C |
40-80 |
40-80 |
40-80 |
|
Rated amount of hot air |
m3/h |
9800 |
18000 |
24000 |
|
Rated fuel consumption |
kg/h |
3-6 |
6-12 |
12-24 |
|
For fuel |
Diesel fuel |
Diesel fuel |
Diesel fuel |
Diesel fuel |
|
Power |
kw |
0.87 |
1.27 |
1.82 |
|
Dimensions |
mm |
2050×920×1450 |
2120×1020×1560 |
2220×1120×1560 |
|
Weight |
kg |
250 |
300 |
340 |
|
Heating area |
m2 |
200-400 |
500-700 |
800-1200 |
|
Blower |
kw |
0.75 |
0.55×2 |
0.75×2 |
|

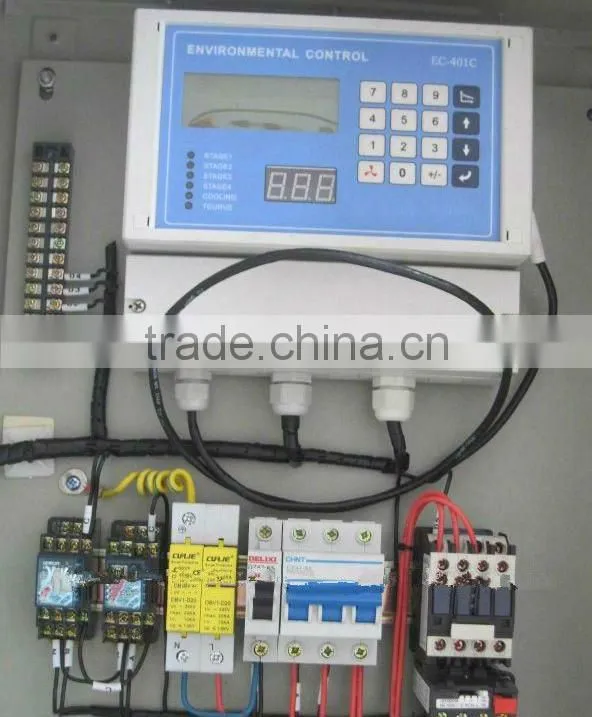

6. Bangchi poultry equipment watering and feeding system --Environment Controller
7. Bangchi poultry equipment watering and feeding system --Chicken plastic slat
New-type reinforced structure and material ,made of modified
and purified raw plastics, high intensity and durability, anticorrosion ,
easy clean and installation and long service life.
Our services
Why so many people choose us?
1.We will choose high quality low price of the shipping company for all customers
2.Loading the goods, we will track all the way, to ensure product safety,
quick to arrive at the designated ports
3.Arrival of the goods, we will provide installation instructions and subsequent
technical guidance
4.Company for products and accessories, for a long time to be able to provide
various products accessories at cost to the customer at any time
Our company information
1.Products
Feeding and drinking lines
Fan series
Evaporative cooling pad series
Environment controller
Automatic heaters series
Chicken plastic slat floor
Air inlet
Light trap
2.Conpany introduction
Our company has concentrate on poultry equipment for many years.We
already gainmany reliable customer with high quality,competitive price
and superiorservice.Welcome you contact us here.You can trust us!!
FAQ
Q:I need quotation for full sets poultry farm equipment.
A:Please let me know the following info:
1.House size:Length&Width
2.Height of side central wall
3.If for chicken/broiler,chicken weight while moved out.
4.If for breeder,rearing density or target breeder amounts.
