Specifications
Chicken equipment for breeders and broilers
Product Description

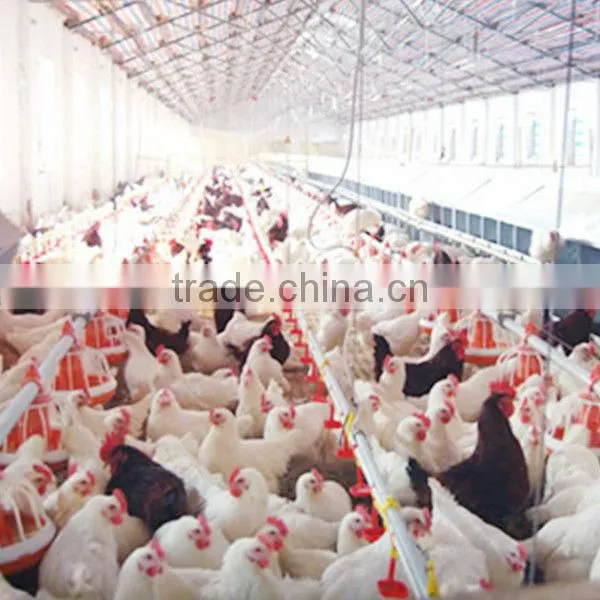

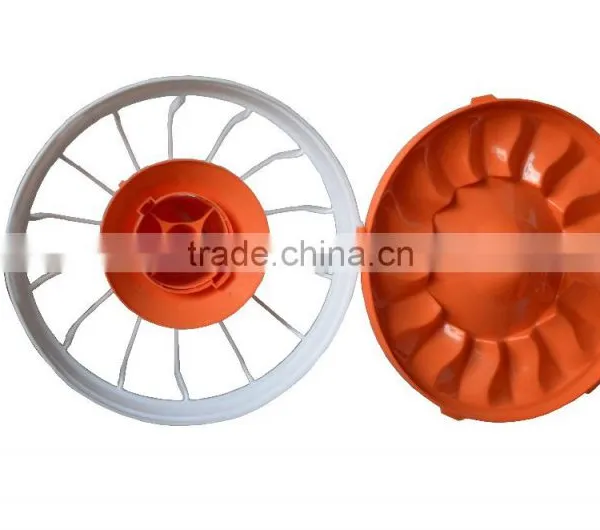

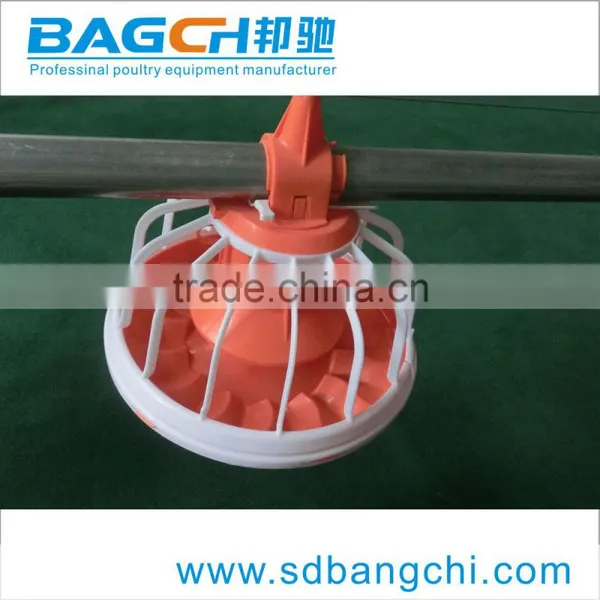

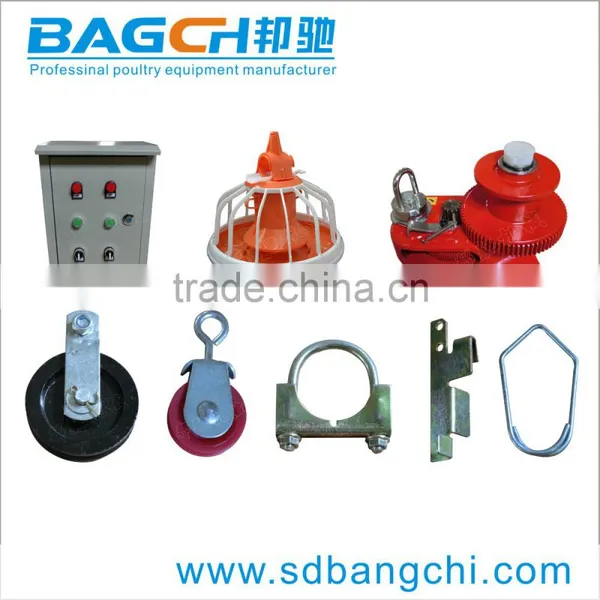

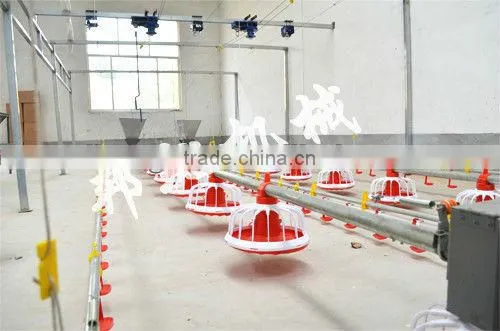

Meat chicken disk type automatic feeding system consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance Parameters of Feeding Line System

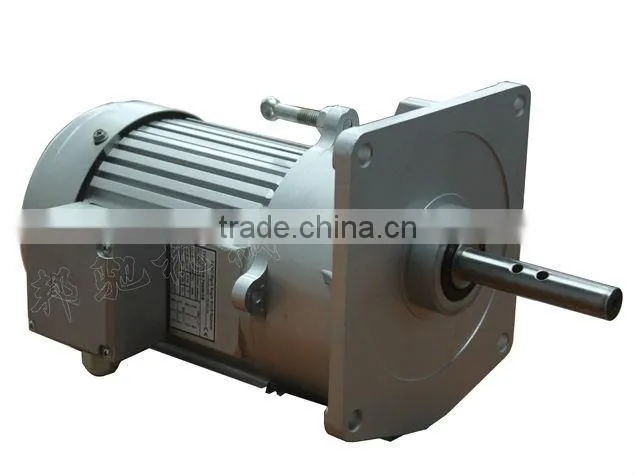

1. High-quality special driving reduction motor.
Power: 0.75kw, Voltage:380V Frequency: 50HZ, Three-phase

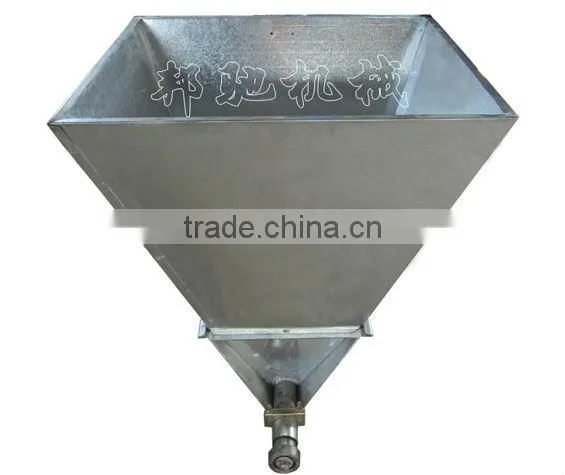

2. V-shaped Bin ( with Hopper)
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-DIP galvanized sheet

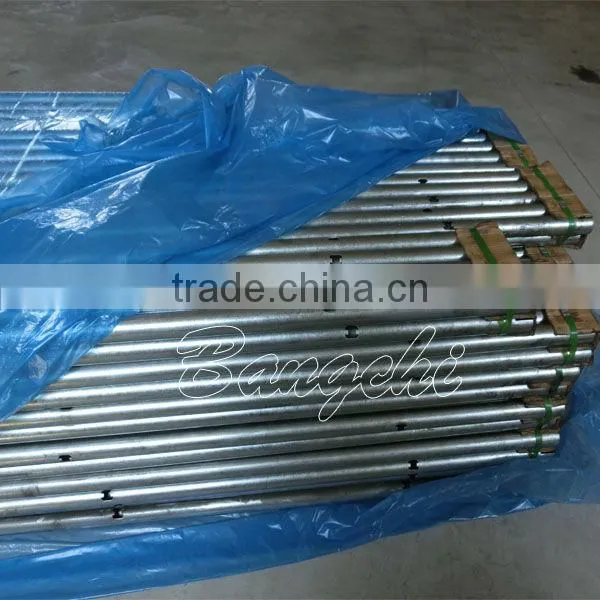

3. Feeding pipe
Diameter of conveying pip: Φ 45mm
Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/m2

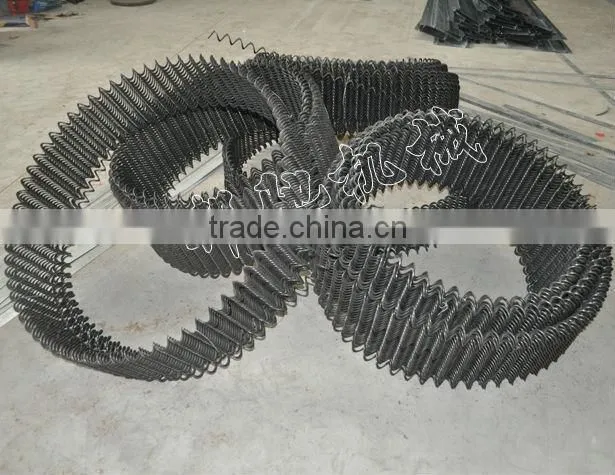

4. Helical spring auger from South Africa, feeding capacity: 450kg/h.

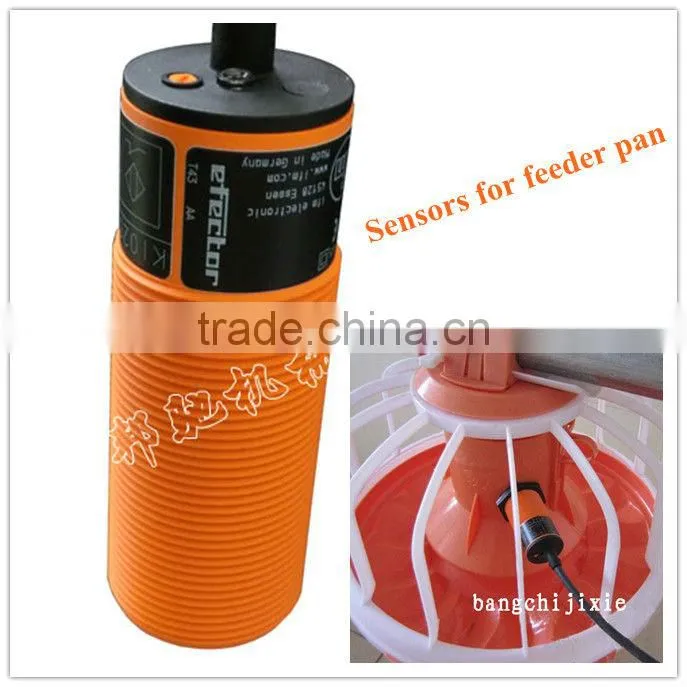

5. Material level sensor from Germany IFM: Time delay range 0 to 2 hours.

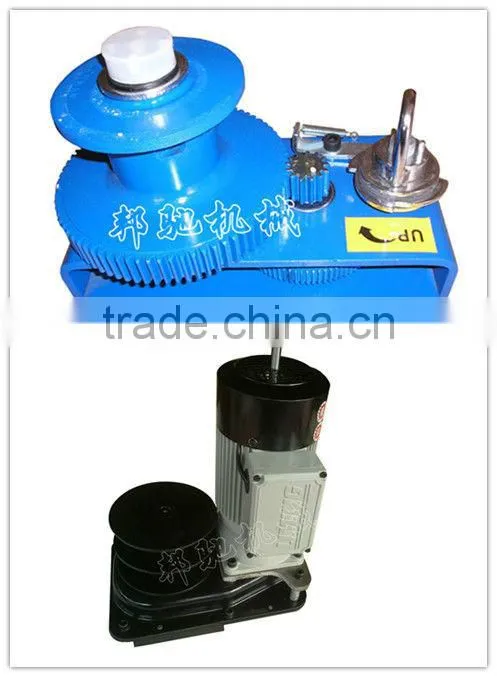

6. Winch for feeding lines
