Evaporative water cooling pad for poultry
Our company has established and concentrated on poultry equipment for many years. We've gained lots of regular customers around the world because of our High Quality Products,Competitive Price & Superior After-sale Service.
Detailed Product Description
Evaporative cooling pad features:
1) Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2) Large evaporation area, cooling efficiency as high as 80%.
3) The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.
4) The product does not contain phenol which is irritant to the skin and the like chemical products. It is safe, energy saving, environmental protective, economic and durable.
5) Galvanized sheet and aluminum panel optional.

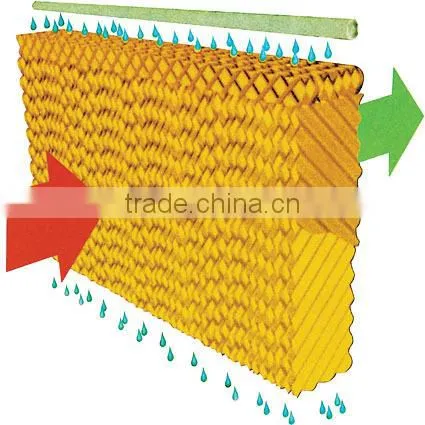

Working Principle
When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.
Three material frame can be choose:
1) Aluminum Alloy Frame
2) 430 stainless steel frame
3)Galvanized steel frame
3. Size choose:
Height: Can be made by customer’s request
Width: Can be made by customer’s request
Depth: 100mm and 150mm can be choose

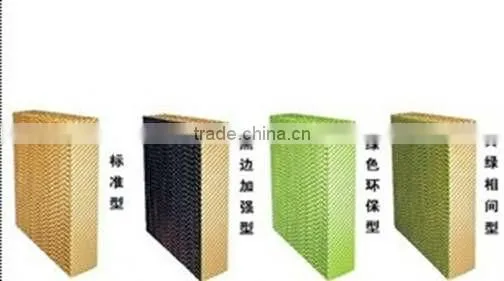

BC series cooling pad: Four colors can be choose
Available Size 7090/5090
Note: Size could be made according to the customer.
H: Height W: Width D: Depth h: corrugation height
α: corrugated sheet angle (1) β: corrugated sheet angle (2)
|
Pad 7090 |
Pad 5090 |
H (mm) |
1500, 1800, 2000 |
1500, 1800, 2000 |
W (mm) |
600, 300 |
600,300 |
D (mm) |
100, 150, 200,300 |
100,150,200,300 |
h (mm) |
7 |
5 |
α (*) |
45 |
45 |
β (*) |
45 |
45 |
Sizes of Evaporative Cooling Pad can be made by buyers request
