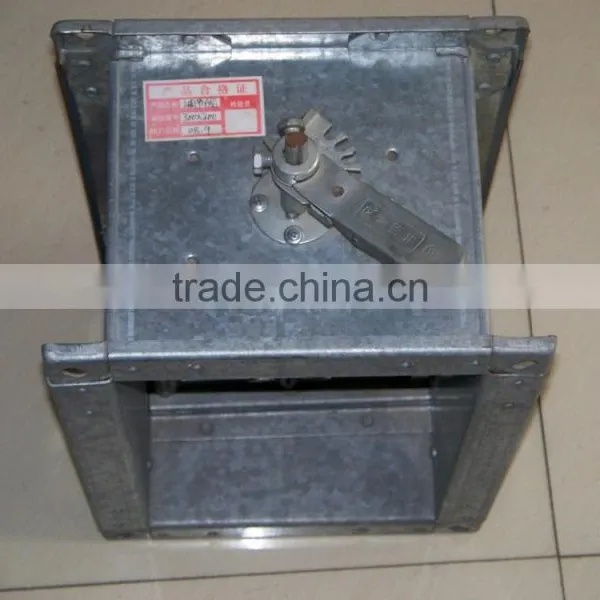

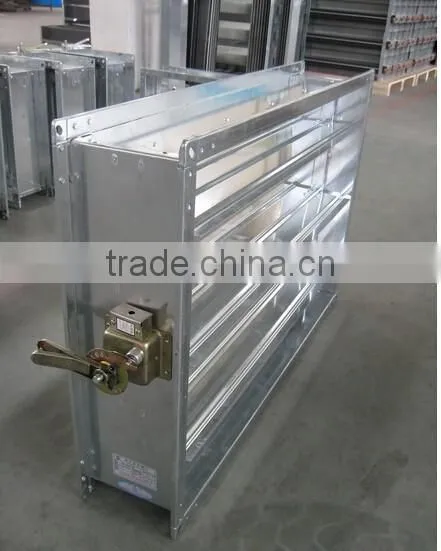

fireproof control fire damper / duct damper

The feature of fireproof control  valve FFH-2

It is applicable to air vents of central air conditioning systems that have requirements for smoke and fire resistance particularly applicable to important buildings that have automatic fire extinguishing units with halogen instead of methane.

All valves should b shut off before the gas is released to put out a fire,and after the fire is extinguished,all valves should be turned on for ventilation and exhaust. When the exhaust system is also used as ventilation air conditioning system, air conditioning requirements for ventilation should be taken into full consideration, and so should the requirements for exhaust and fire protection when fire breaks out. Besides, it is also applicable to ceilings of ventilation and air conditioning pipe lines as well as places where manual operation is not available.

Discharges fume valve serial products control device position

Discharges fume valve class: The control device generally installs on Yu BMIAN, stands looked against the wind in one side, what control device in left side is left -like, what control device in right flank is right -like. If the user has the request in addition please in ordering time indicate.

Suitable

Discharges fume the valve to install generally in discharges fume on system's air hose, uses in having time the fire carries on discharges fume.

Performance
SD,DC24V,0.5A.

Uses the SD control device, power source DC24V,0.5A.

Usually often shuts, receives time the control center DC24V electrical signal opens.

Manual opens, hand reset.

After valve movement, outputs the opening signal. According to the user's needs may with other equipment interconnection.

PYFH-2 PYFH-6

Discharges fume fire resisting damper PYFH-2 PYFH-6

Suitable

Discharges fume the fire resisting damper to install generally in discharges fume on system's air hose, uses in has when the fire carrying on discharges fume, when and in the air hose the temperature achieves 280 automatic shut-off.

Performance

SFD,DC24V,0.5A.
,DC24V.

Uses the SFD control device, power source DC24V,0.5A. usually often shuts, receives time the control center DC24V electrical signal opens.

Manual opens, hand reset.

After valve movement, outputs the opening signal. According to the user's needs may with other equipment interconnection.

The temperature achieves 280 when automatic closes.

PYF-4 PYF-8

Controls far discharges fume valve PYF-4 PYF-8

Controls far discharges fume the valve to install generally in discharges fume on system's air hose or the smoke vent place, uses in has when the fire carrying on discharges fume, the human can in the room inside control valve.

BSD,DC24V,0.5A.
,DC24V.

Uses the BSD control device, power source DC24V,0.5A. usually often shuts, receives time the control center DC24V electrical signal opens.

The long-distance range manual opens, long-distance range hand reset.

After valve movement, outputs the opening signal. According to the user's needs may with other equipment interconnection.

PYFH-5 PYFH-7

Controls far discharges fume fire resisting damper PYFH-5 PYFH-7

Controls far discharges fume the fire resisting damper to install generally in discharges fume on system's air hose or the smoke vent place, uses in has when the fire carrying on discharges fume, when the haze achieves 280 automatic closes, the human can in the room inside control valve.

BSFD,DC24V,0.5A.
,DC24V.

Uses the BSFD control device, power source DC24V,0.5A. usually often shuts, receives time the control center DC24V electrical signal opens.

The long-distance range manual opens, long-distance range hand reset.

After valve movement, outputs the opening signal. According to the user's needs may with other equipment interconnection.

280.

The temperature achieves 280 when automatic closes.

Installs notice

DN20,≤6m,≤3,≥90°,≥300mm.

The telemechanics control cable when installs should wrap in the DN20 steel pipe, span ≤6m, crook ≤3 place, bending angle ≥90°, bevelling radius ≥300mm.

PYK-2- PYK-2-

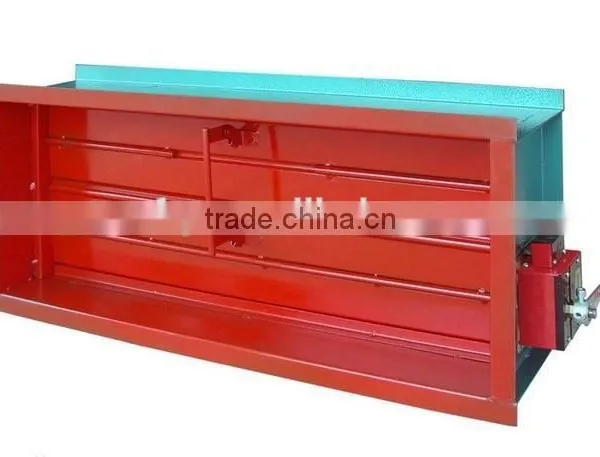

Multi-bladed smoke vents (compression supply-air outlet) PYK-2- PYK-2-

The multi-bladed smoke vents install generally before the corridor or against smoke the room and the non-window room discharge fume on the system.

The compression supply-air outlet installs before against smoke indoor, the fire occurs when indoor forms the positive pressure before.
SD,DC24V,0.5A.

Uses the SD control device, power source DC24V,0.5A.

,DC24V.
PYK-5- PYK-5-

Multi-bladed fire protection smoke vent PYK-5- PYK-5-

Multi-bladed discharges fume the fire protection mouth to install generally before the corridor or against smoke the room and the non-window room discharges fume on the system. When the haze temperature achieves 280 automatic closes, achieves the fire protection the goal.

Ordering notice

Multi-bladed smoke vents and in multi-bladed fire protection smoke vent maneuver box's position ordinary circumstancesIn right flank,In place above, user, if has the various requirement please in ordering time indicate.

PYK-3- PYK-3-

Controls the multi-bladed smoke vents far (compression supply-air outlet) PYK-3- PYK-3-

Controls the multi-bladed smoke vents to install far before the corridor or against smoke the room and the non-window room discharges fume on the system. Controls the compression supply-air outlet to install far when against smoke the room, the fire occurs indoor forms the positive pressure before. May control in the room.
BSD,DC24V,0.5A.
,DC24V.

PYK-4- PYK-4-

Controls multi-bladed fire protection smoke vent PYK-4- far PYK-4-

Multi-bladed discharges fume the fire protection mouth to install generally before the corridor or against smoke the room and the non-window room discharges fume on the system. When the haze temperature achieves 280 automatic closes, achieves the fire protection the goal. May control in the room.

BSFD,DC24V,0.5A.
,DC24V.
Cntrols the multi-bladed smoke vents far and controls the multi-bladed fire protection smoke vents far in maneuver box's position ordinary circumstancesIn right flank,In place above, user, if has the various requirement please in ordering time indicate.

Controls the multi-bladed smoke vents far and controls the multi-bladed fire protection smoke vents far in the control cable going beyond a line position ordinary circumstancesIn place above,In right flank, user, if has the various requirement please in ordering time indicate.

PYK-1

Board style smoke vent PYK-1

The board style smoke vent is suitable in the fire prevention discharges fume pipeline's induction port, may also use in against smoke compression supply-air outlet. May control opening far.
