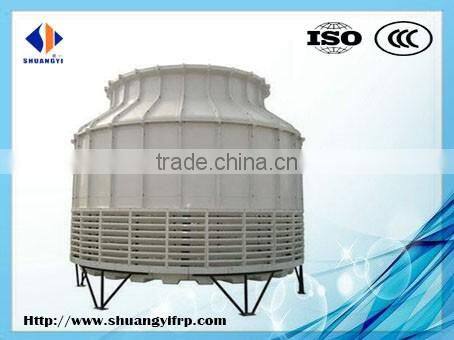

Cooling tower for air conditioning 20 years manufacture China

 1, Good performance

The new designed DBNL3 cooling tower water distribution and the flow field very uniform reached the best overall performance.

2, Excellent quality:

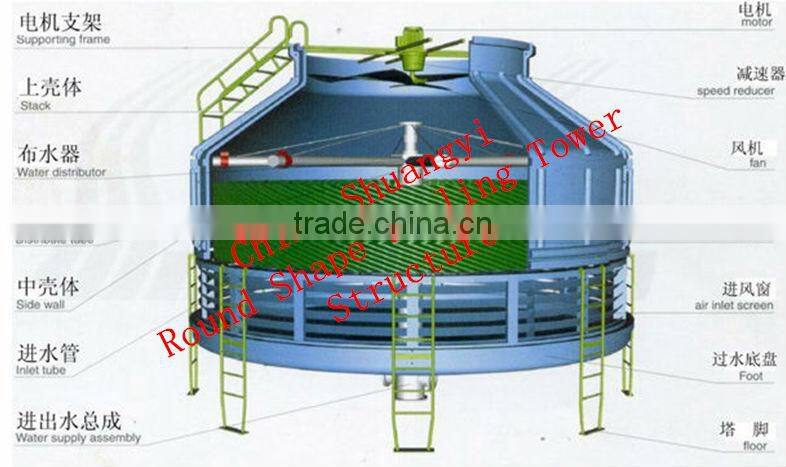

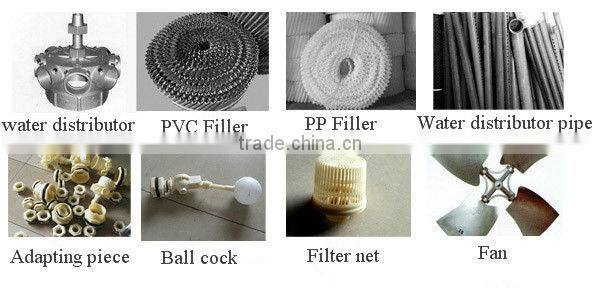

This cooling tower adopt ours patented fills, three splashed sprayer to distribute water, full sealed motor special used for cooling tower, wide blade dedicated fan and optimization design of belt drive systems, shell used the FRP material, vivid color, bright and clean surface, anti-aging.

 3, Environment protection, save energy.

 This type of cooling tower adopt the water collector collect the flying water, made the flying water loss under 1‰,prevent the pollution of the recycle water; This wide blade, low speed fan can reduce the loss of the dynamic pressure, save energy and environment protection.

 4, low noise

 The speed reducer used international famous bearings, wide fan blade, low wind speed, made the noise of the fan to be under control.The sprayer and the special designed fills make the water distribution noise to be lower.

 5, Small volume, light weight

The cooling tower is optimization designed by Solid Edge CAD,decreased the floor space maximallyThe body of the cooling tower used the HDG steel frame and FRP material shell, thus the weight of the cooling tower is light.

6, Guarantee of the cooling tower

DBNL3 Cooling tower strict tested by the government FRP products quality supervision and inspection center, it is qualified.DBNL3 Cooling tower passed the ISO9001-2000 quality certification

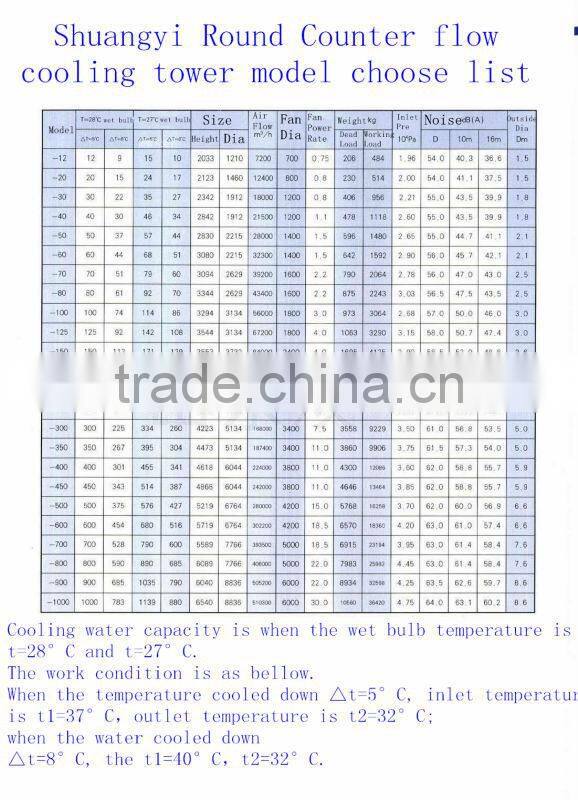

Cooling tower DBNL3-200  Parameters:

  Above is the model choose list of the round shape counter flow cooling tower.

Shuangyi group is a large modern enterprise which integrating science, industry and trade, mainly produce the FRP cooling tower, fan, water tank, ventilation pipes, winding pipe and tank, central air conditioning terminal equipment, engineering installation, pipes, butterfly valve, ball valve, globe valve, and other FRP products, etc.Our group built in 1980,have 3000-3500 workers.

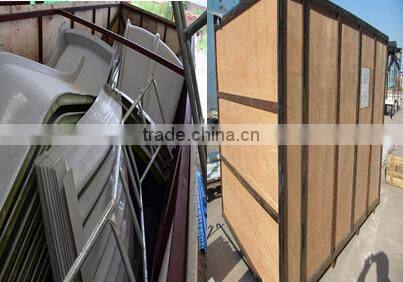

1) For the small size cooling tower, which is not enought to one whole container, we packing it in the playwood box which is reinforced by the steel frame, just like the picture below:

 2) For the big size cooling tower, which is big enought to load in the container. We can load it directly. Just like the picture blow.

 1) Good cooling tower sales team, who is knowing the cooling tower well, good at comunication, familar witht the international trading process.

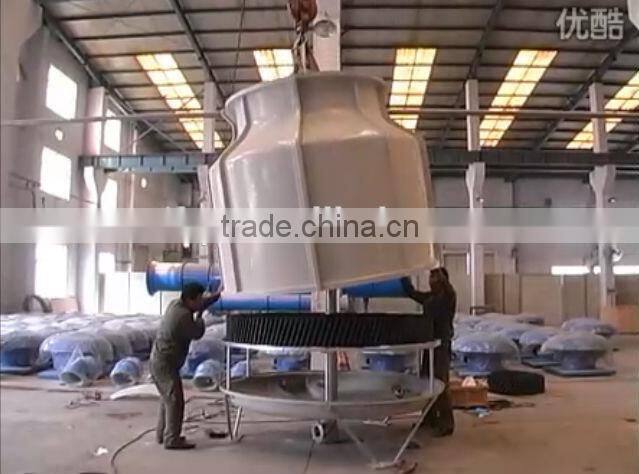

 2) Professional after sales service group, we can install the cooling tower overseas. And we have the cooling tower installation video.
