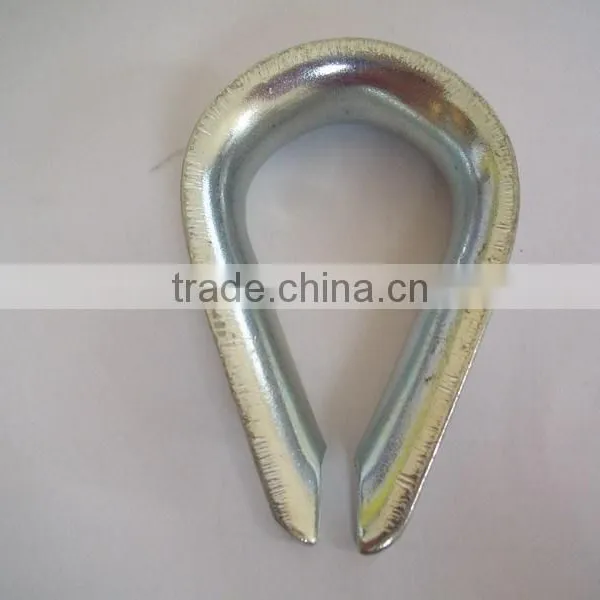

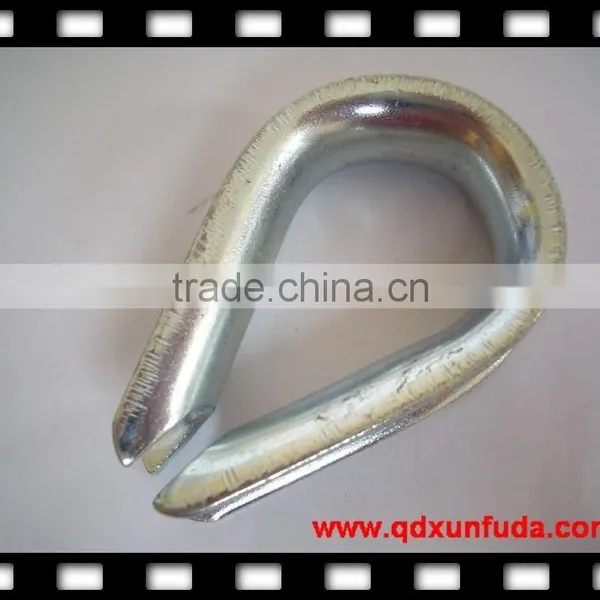

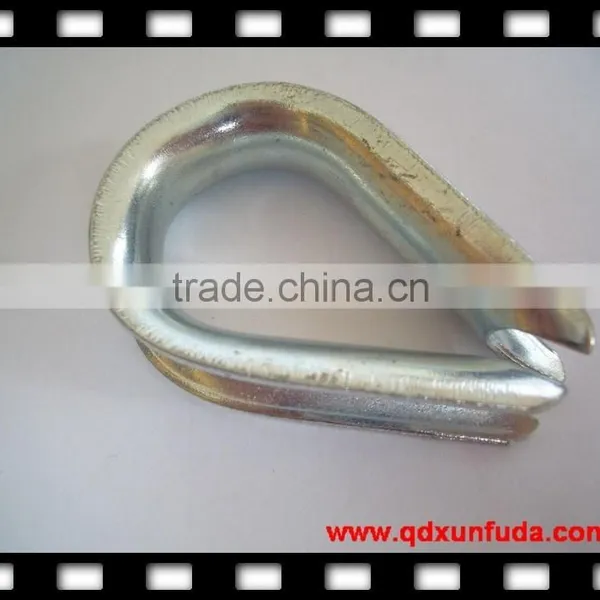

Galv DIN 6899 B wire rope thimble
- 500000 Piece / Pieces per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card
- mould ,plastic mould. injection mould ,plastic injection
- plastic , plastic product, plastic injection, plastic accessory, plastic part.
- aluminium and zinc hardware sliding Windows lock for OEM
- zamak windows bolt Windows latch for OEM
- Zinc windows latch aluminium Window latch for OEM
- aluminium zamak Windows lock for OEM
Product Details
Place of Origin: | Shandong, China | Brand Name: | TY | Model Number: | G-411 |
Product Description
Specifications
DIN 6899B thimble1.Type:G411,G414,DIN6899B
2.Surface:electro gal.or HDG
3.Material:carbon ste
Galv din6899b wire rope thimble
1.Material: carbon steel, Q235 steel
2.Standard: DIN 6899 B
3.Surface: electrogalvanized or hot-dip galvanized
4.MOQ:1000pcs
5.Port: Qingdao
6.Delivery time: within 30 days after signing contract
7.Pack: gunny bags, cartons, or special requirements from customers can be accepted
8.Payment: 30% deposit, t/t
9.Similar products: US type G-414 heavy duty thimble, DIN6899A,Din6899B
14.Main products: steel wire rope, wire rope clips, thimbles, shackles, turnbuckles, thimble,wire tensioner,hooks,spring hooks,chain
Pope DIA. (IN.) | Weight per 100 (lbs.) | Dimensions (in.) | |||||||
A | B | C | D | E | F | G | H | ||
1/8 | 2.50 | 1.94 | 1.31 | 1.06 | .69 | .25 | .16 | .05 | .13 |
3/16 | 2.50 | 1.94 | 1.31 | 1.06 | .69 | .31 | .22 | .05 | .13 |
1/4 | 3.75 | 1.94 | 1.31 | 1.06 | .69 | .38 | .28 | .05 | .13 |
5/16 | 3.75 | 2.13 | 1.50 | 1.25 | .81 | .44 | .34 | .05 | .13 |
3/8 | 6.25 | 2.38 | 1.63 | 1.47 | .94 | .53 | .41 | .06 | .16 |
1/2 | 12.50 | 2.75 | 1.88 | 1.75 | 1.13 | .69 | .53 | .08 | .19 |
5/8 | 25.00 | 3.50 | 2.25 | 2.38 | 1.38 | .91 | .66 | .13 | .34 |
3/4 | 50.00 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | .78 | .14 | .34 |
7/8 | 85.00 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | .94 | .16 | .44 |
1 | 100.00 | 6.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | .16 | .41 |
1 1/8-1 1/4 | 175.00 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | .22 | .50 |
