DIN 5299 C METAL SNAP HOOK
USD $0.001 - $1
/ Ton
0 Ton(Min.Order)
- 10 Ton / Tons per Month
- qingdao
- T/T Credit Card
You May Like
-
mould ,plastic mould. injection mould ,plastic injection
-
plastic , plastic product, plastic injection, plastic accessory, plastic part.
-
aluminium and zinc hardware sliding Windows lock for OEM
-
zamak windows bolt Windows latch for OEM
-
Zinc windows latch aluminium Window latch for OEM
-
aluminium zamak Windows lock for OEM
Product Details
| Place of Origin: | Shandong, China | Brand Name: | TY | Model Number: | DIN5299C |
Product Description
Specifications
spring hooks DIN5299C1. Type: MANUFACTURER SUPPLY
2. Material: carbon steel

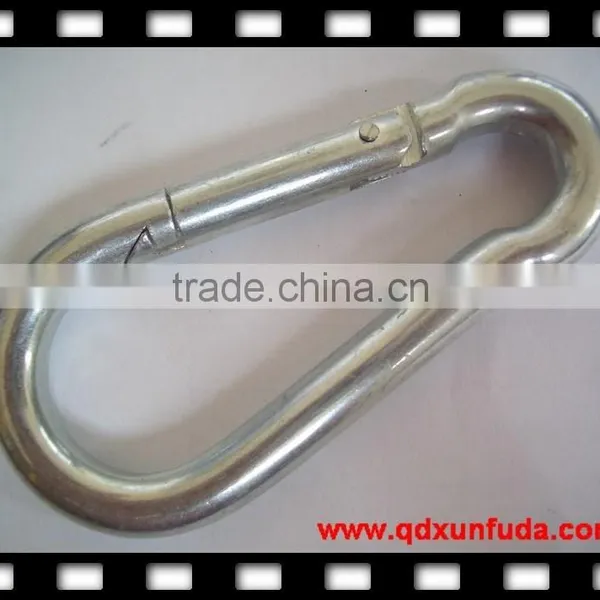

3. DIN5299C snap hook
snap hooks DIN5299C rigging hardware
1) Size: 4mm-15mm
2) Material: Carbon Steel
3) Surface: ZP
4) Beside the commerial type snap hook, we can also provide the following snap hooks, such as Snap Hook with Eyelet; Snap Hook with Screw; Snap Hook with Eyelet and Screw.
high quatliy
good delivery time
Size(mm) | A(mm) | B(mm) | C(mm) | D(mm) | L(mm) | SWL(mm) | N.W(kg/100pcs) |
4x40 | 20 | 6 | 6 | 4 | 40 | 100 | 0.8 |
5x50 | 25 | 6 | 7 | 5 | 50 | 160 | 1.6 |
6x60 | 30 | 9 | 7 | 6 | 60 | 260 | 2.8 |
7x70 | 35 | 10 | 10 | 7 | 70 | 335 | 4.5 |
8x80 | 40 | 11 | 11 | 8 | 80 | 400 | 6.3 |
9x90 | 45 | 13 | 11 | 9 | 90 | 500 | 9.4 |
10x100 | 50 | 16 | 12 | 10 | 100 | 650 | 12.5 |
11x120 | 57 | 18 | 19 | 11 | 120 | 700 | 19.2 |
12x140 | 67 | 20 | 20 | 12 | 140 | 800 | 25.8 |
13x160 | 74 | 22 | 29 | 13 | 160 | 1300 | 35.1 |
14x180 | 86 | 22 | 42 | 14 | 180 | 1600 | 45.5 |
15x200 | 90 | 26 | 42 | 15 | 200 | 1800 | 61.8 |
Specifications
1>material:carbon steel,alloy steel,stainless steel
2>surface: ele galv,hot dipped galv,self-color
3>treatment:drop forged
