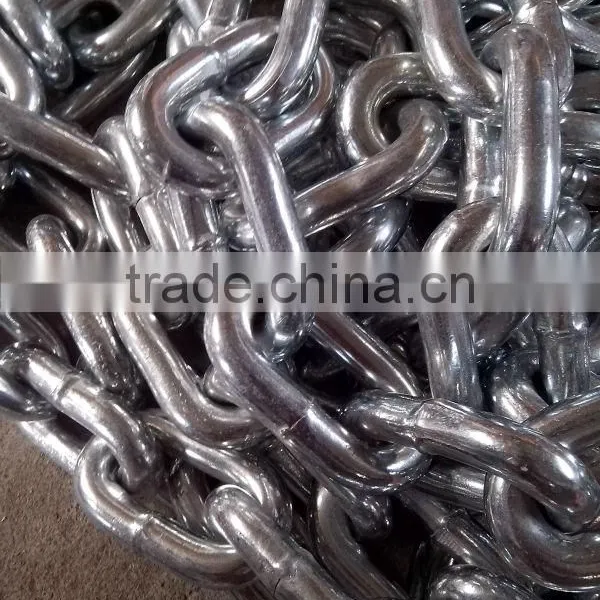

DIN 763 Chain
Negotiable
/ Ton
1 Ton(Min. Order)
- QINGDAO
- T/T Credit Card
You May Like
-
DIN 763 Chain China Supplier
-
China Manufacturer Chain Repair Links;repair Link for Chain Rigging Hardware
-
China Supplier Rigging Hardware Galvanized Link Chain Repair Link
-
G80 Weldless Alloy Oblong Master Link US Type A 342 Rigging Hardware
-
Rigging Hardware High Quality Manual Operated Chain Blocks Pulley Hoist
-
Hardware Rigging Forged Carbon Painted Red G-341weldless Pear Shaped Link
Product Details
| Place of Origin | Shandong, China | Brand Name | TY | |
| Model Number | DIN763 | Structure | Welded Chain | |
| Function | Other | Material | Iron | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
DIN 763 chain1.Material : carbon steel
2.surface : self color , white galved, H.D.G
3.structure: welded chain
| DIN 763 TYPE CHAIN | |||||||
| NET WEGIHT | |||||||
| LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | PER M(KG) | ||||
| MM | I.L | O.W | N | N | KG | ||
| 2.00 | 22 | 8 | 800 | 1250 | 0.06 | ||
| 2.50 | 24 | 10 | 800 | 2000 | 0.1 | ||
| 3.00 | 26 | 12 | 1050 | 3200 | 0.15 | ||
| 3.50 | 28 | 14 | 1540 | 3850 | 0.2 | ||
| 4.00 | 32 | 16 | 2000 | 6000 | 0.27 | ||
| 4.50 | 34 | 18 | 2500 | 6300 | 0.35 | ||
| 5.00 | 35 | 20 | 3150 | 10000 | 0.43 | ||
| 5.50 | 38.5 | 22 | 3800 | 9500 | 0.52 | ||
| 6.00 | 42 | 24 | 4500 | 14000 | 0.63 | ||
| 7.00 | 49 | 28 | 6000 | 18000 | 0.86 | ||
| 8.00 | 52 | 32 | 8000 | 25000 | 1.1 | ||
| 8.50 | 56 | 34 | 9000 | 22500 | 1.25 | ||
| 9.00 | 59 | 36 | 10500 | 32000 | 1.41 | ||
| 10.00 | 65 | 40 | 12500 | 40000 | 1.75 | ||
| 11.00 | 72 | 44 | 15800 | 47500 | 2.11 | ||
| 12.00 | 78 | 48 | 18800 | 56500 | 2.55 | ||
| 13.00 | 82 | 52 | 21200 | 6300 | 2.95 | ||
| 16.00 | 100 | 64 | 33000 | 10000 | 4.45 | ||
| 18.00 | 113 | 70 | 42300 | 127000 | 5.65 | ||
| 19.00 | 119 | 72 | 47300 | 142000 | 6.25 | ||
| 20.00 | 120 | 75 | 50000 | 160000 | 7 | ||
| 22.00 | 127 | 82 | 63300 | 190000 | 8.55 | ||
| 25.00 | 140 | 85 | 81700 | 245000 | 10.9 | ||
| 28.00 | 152 | 96 | 120000 | 300000 | 13.9 | ||
