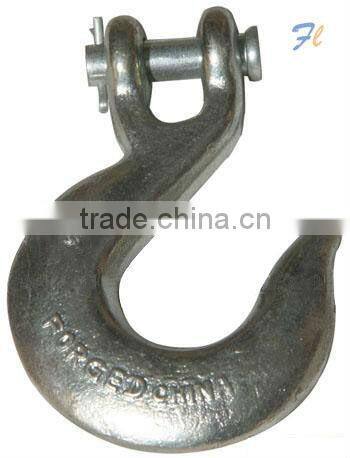

rigging hardware H331 forged steel US type clevis slip hook with latch china
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- qingdao
- T/T Credit Card
You May Like
-
mould ,plastic mould. injection mould ,plastic injection
-
plastic , plastic product, plastic injection, plastic accessory, plastic part.
-
aluminium and zinc hardware sliding Windows lock for OEM
-
zamak windows bolt Windows latch for OEM
-
Zinc windows latch aluminium Window latch for OEM
-
aluminium zamak Windows lock for OEM
Product Details
| Place of Origin: | Shandong, China | Brand Name: | TY | Model Number: | H-331 A-331 |
Product Description
Specifications
rigging H331 forged steel US type clevis slip hook with latch china1)Material: H331 carbon steel G43
2)Size: all size

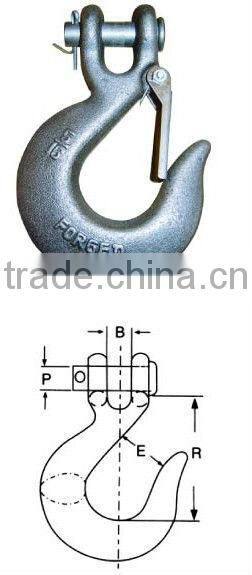

rigging hardware H331 forged steel US type clevis slip hook with latch china
Size of chain | Working load limit(lbs) | DIMENSIONS(in) | Weight (lbs) | ||||
H-330 | A-330 | B | E | P | R | ||
1/4 | 1950 | 2750 | 0.44 | 0.94 | 0.38 | 2.56 | 0.50 |
5/16 | 2875 | 4300 | 0.50 | 1.06 | 0.44 | 2.87 | 0.75 |
3/8 | 4000 | 5250 | 0.59 | 1.31 | 0.47 | 3.25 | 1.20 |
7/16 | 5000 | 7000 | 0.66 | 1.56 | 0.56 | 3.70 | 2.06 |
1/2 | 6500 | 9000 | 0.75 | 1.69 | 0.63 | 4.00 | 2.80 |
5/8 | 9250 | 12500 | 0.91 | 2.00 | 0.75 | 4.94 | 4.75 |
3/4 | 12500 | 19250 | 1.31 | 2.50 | 1.00 | 6.09 | 10.30 |
