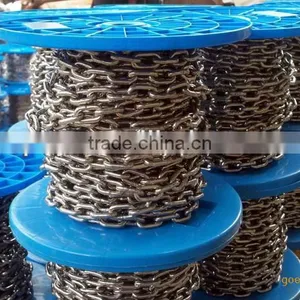

DIN766 link chain
Negotiable
/ Ton
1 Ton(Min.Order)
- 10 Ton / Tons per Month
- qingdao
- T/T Credit Card
You May Like
- Railroad wire mesh protective fence Custom rail guardrail net
- Hot-dip galvanized railway line protection fence/Railway protective fence
- Dark green high speed rail rail safety isolation net fence net
- High speed rail protective fence closed fence net barbed wire fence manufacturers
- The high speed rail protective fence is strong and anti-aging Airport fence
- Railway guardrail fence High speed rail protective fence railway welded mesh isolation grid
Product Details
Place of Origin: | Shandong, China | Brand Name: | TY | Model Number: | DIN766 |
Structure: | Welded Chain | Function: | Other | Material: | Iron |
Standard or Nonstandard: | Standard |
Product Description
Specifications
DIN766 link chain1.Material: Carbon Steel/Stainless Steel
2.Surface: HDG, SC, E/GALV
DIN766 link chain
2. Place of origin: shangdong china mainland
3. Structure : welded chain
4. Link chain with zinc plated and self color is ok or according to your requirement
5. Surface treatment: Electrical galvanized,hot dipped galvanized,zinc plated,polish

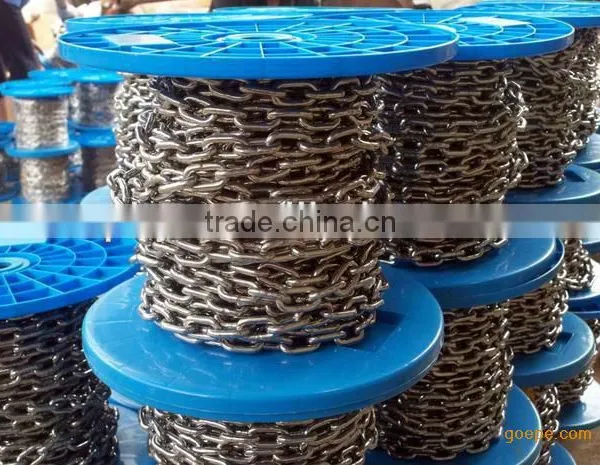

6. packing:gunny bag,plastic spool,plastic bucket,iron bucket,steel drum,wooden case
SIZE d | INSIDE LENGTH t | INSIDE WIDTH b1 | OUTSIDE WIDTH b2 | LENGTH PER 11 LINKS | BREAKING LOAD | WEIGHT PER M | |||||
MM | ±MM | MM | ±MM | -MM | MM | MM | MM | +MM | -MM | KN | KG |
2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 13.2 | 1.0 | 0.5 | 1.25 | 0.07 |
3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 4.00 | 0.16 |
4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 8.00 | 0.32 |
5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 12.50 | 0.5 |
6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 16.00 | 0.8 |
7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 25.00 | 1.1 |
8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 32.00 | 1.4 |
9 | 0.3 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 40.00 | 1.8 |
10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 50.00 | 2.2 |
11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 63.00 | 2.7 |
12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 72.40 | 3.10 |
13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 80.00 | 3.8 |
14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.2 | 451 | 5.4 | 2.7 | 100.00 | 4.4 |
16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 | 125.00 | 5.7 |
18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 160.00 | 7.3 |
19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 180.00 | 7.97 |
20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 200.00 | 9.0 |
22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 243.20 | 11.0 |
23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 250.00 | 12 |
26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 320.00 | 15 |
