ANCHOR CHAIN STUD LINK ANCHOR CHAIN CHINA SUPPLIER

FOB Price

Negotiable / Ton

2 Tons(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

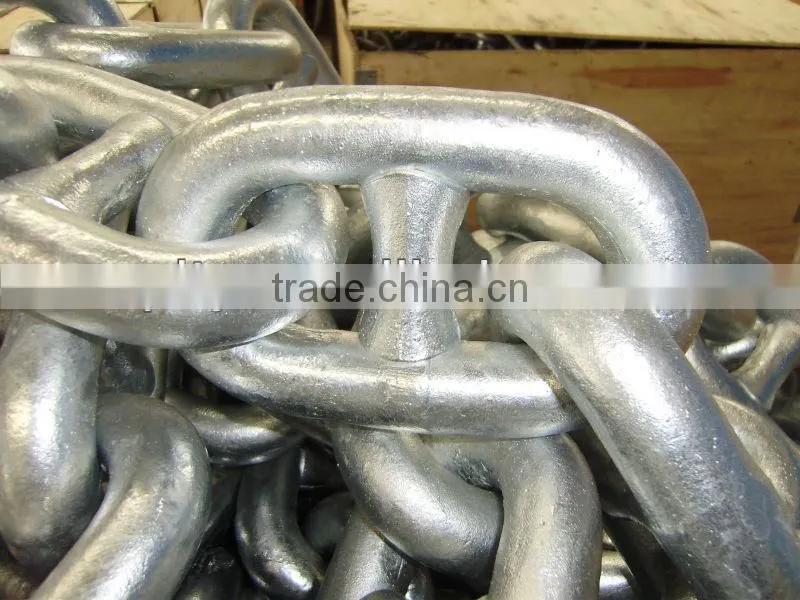

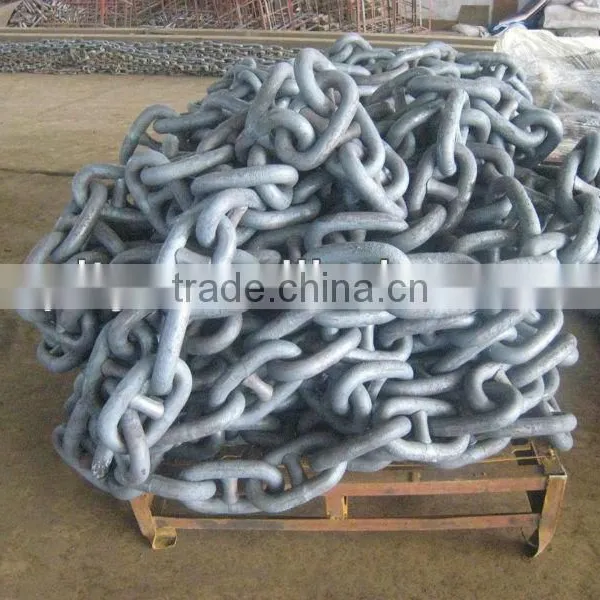

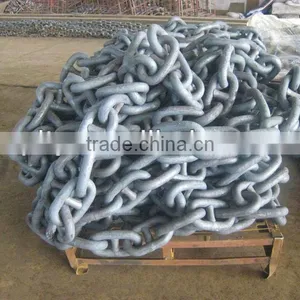

STUD LINK ANCHOR CHAIN
1.Stud link anchor chain and studless link anchor chain

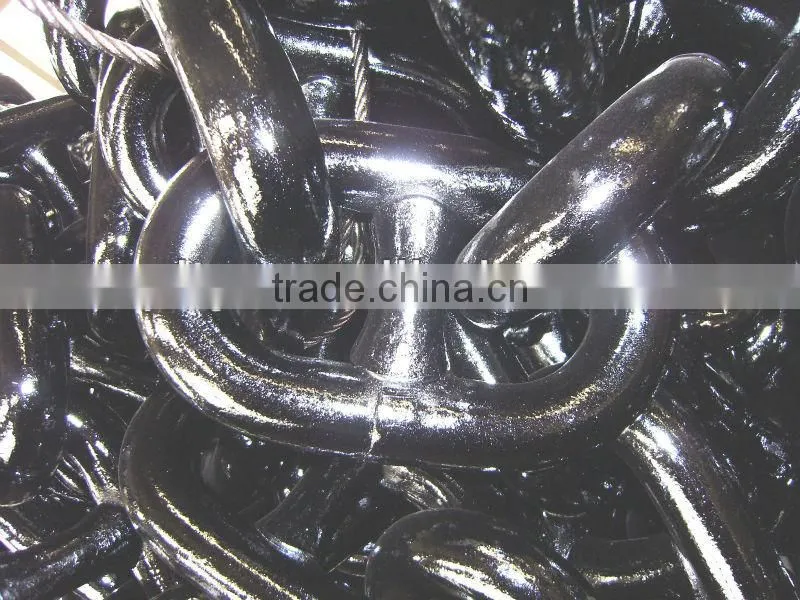

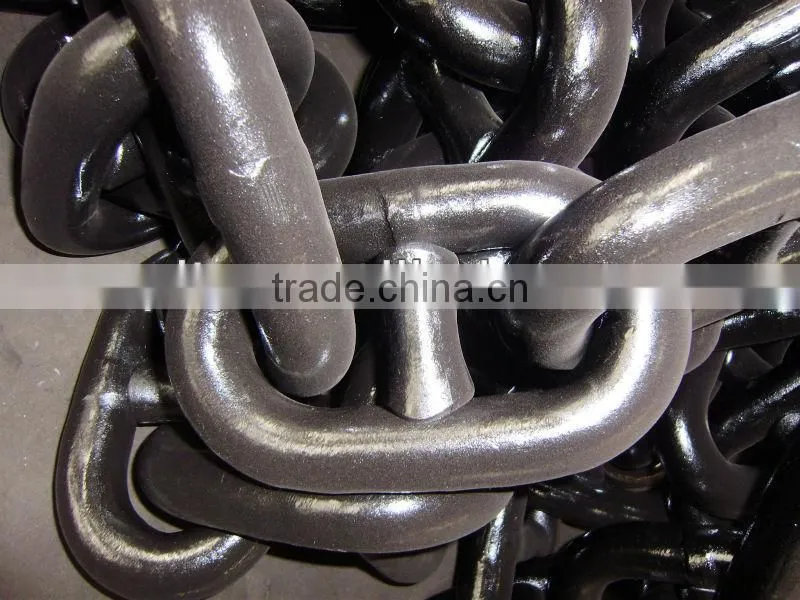

2.Surface: Black coated, Hot galvanised or EG

ANCHOR CHAIN STUD LINK ANCHOR CHAIN CHINA SUPPLIER

MATERIAL:U1:CM370 U2:CM490 U3:CM690

STUD LINK ANCHOR CHAIN, LINK SIZE(6*3.6D),TEST LOAD AND WEIGHT
DIAMETER		CHAIN LINK SIZE		AM1 U1 STUD LINK CHAIN		AM2 U2 STUD LINK CHAIN		AM3 U3 STUD LINK CHAIN		APPROX WEIGHT
DIAMETER		OUTSIDE LENGTH	OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	27.5M
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98
9/16	14	84	50.4	58	82	82	116	116	165	119
5/8	16	96	57.6	76	107	107	150	150	216	156
11/16	17.5	105	63	89	127	127	179	179	256	186
3/4	19	114	68.4	105	150	150	211	211	301	230
13/16	20.5	123	73.8	123	175	175	244	244	349	260
7/8	22	132	79.2	140	200	200	280	280	401	300
15/16	24	144	86.4	167	237	237	332	332	476	370
1-1/16	26	156	93.6	194	278	278	389	389	556	431
1-1/8	28	168	100.8	225	321	321	449	449	642	496
1-3/16	30	180	108	257	368	368	514	514	735	564
1-1/4	32	192	115.2	291	417	417	583	583	833	635
1-5/16	34	204	122.4	328	468	468	655	655	937	712
1-7/16	36	216	129.6	366	523	523	732	732	1050	800
1-1/2	38	228	136.8	406	581	581	812	812	1160	887
1-9/16	40	240	144	448	640	640	896	896	1280	1032
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438
2	50	300	180	686	981	981	1370	1370	1960	1546
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010
