Automatic Broiler Feeding Line for Poultry Farming Equipment

automatic broiler feeding line for poultry farming equipment

Automatic broiler feeding line includes:

This system convey feed through the rotation of helical spring auger, including main feed line and pan feeding line.

Main feed line:Silo/Manpower hopper is the beginning of main feed line. There is a feed sensor

at the end of main feed line which controls motor on and off to achieve feed delivery.

Advantages:Reduce Labor intensity, one person is enough for one house.

Main components of main feed line:

1).Driving motor, Power:0.75kw, Voltage:380V or 220V,Single phase or 3 phase, 50hz/60hz.

2).Feed level sensor,Germany IFM Feed sensor with high performance.

3).Feed conveying pipe, Diameter of conveying pipe:75*3.6mm, Material:PVC.

4).Auger, Helical spring auger from South Africa Feeding ability:1400kg/h, Maximum.

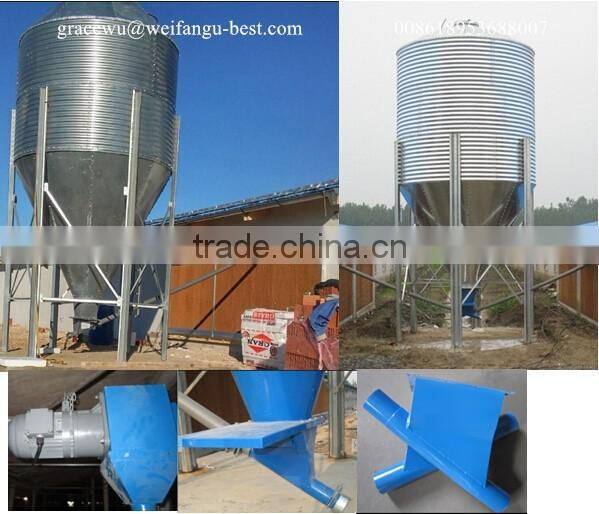

5).Silo, Steel sheet with double layer galanvized ensure a service life of more than 10 years.

 Silo Parameters:

6).Manpower hopper, Galvanized sheet material, which can keep feed fresh. If you only build one or two

chicken shed we suggest you use manpower hopper instead of silo.

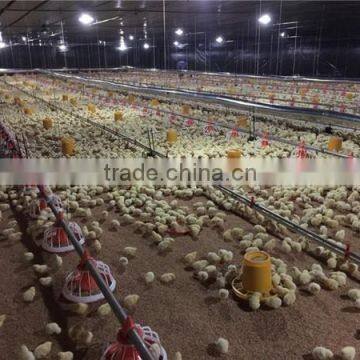

Pan feeding line:there is a feed sensor at the end of each pan feed line which controls motor on and off to

achieve automatic feed delivery

Main components of Pan feeding line:

1).Driving motor, Power:0.75kw,1.1kw,1.5kw, Voltage:380V or 220V,Single phase or 3 phase, 50hz/60hz.

2).Feed hopper, Bin volume:115L,200L. Material:hot-dip galavnized sheet.Thickness:1mm.

3).Pan feeding system, Feed pipe:3m/3pan, or 3m/4pan. Diameter:45mm.Thickness:1.2mm

    Material:hot-dip galavnized steel pipe the zinc coating amount is more than 275g/m2.

4).Spring auger,imported from South Africa.

5).Feed sensor, imported from Germany.

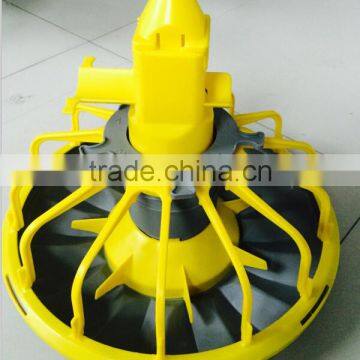

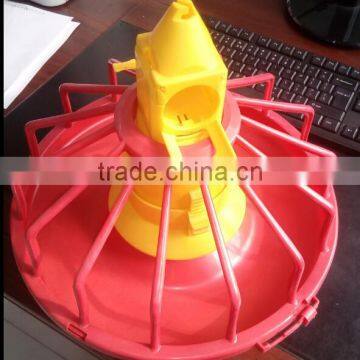

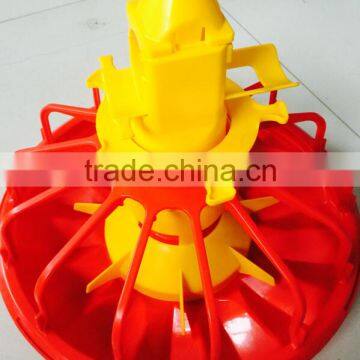

6).Feed pan,we have many types of broiler feed pan, and we can also provide customized pan.

Main features of broiler feed pan:

-Outside adjustment feed pan has 6 gears of feed amount, and the other kinds has 13 gears.

-Feed pan slide switch could adjust feed flow until it is filled.

-Outside adjust pan is more convenient, accurate and quick to adjust feed flow.

-Pan bottom can be disassembled on the ground, working for day-old chicks.

-V-pan plate design can reduce feed storage on bottom, so birds can always eat fresh food.

-The edge of pan plate tilt towards the center, which can avoid waste of food.

-The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

-Feed pan installation has fixed type or swing type.

Our company also can provide:

1. Automatic nipple drinking system:

2.Automatic Cooling pad system:

4. Automatic ventilation system:

5.Environment control system:

6.Poultry heater system:

7.Spraying&disinfection system:

To give you a reliable price, please let us know:

1).Size: (length×width × height)

2).Quantity (discount based on order)
3).Weight of chicken when you sale to the market (the rearing period, From   -  weeks)

4).Types of chicken: laying hens or broiler chickens

5).Types of breeding: in cages or on the ground

6).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

Packaging&Shipping-automatic broiler feeding line:

• Feeder pan: unassembled, in carton box;
• Feeding pipe: 20pcs per bunch, in bulk;
• Hanging system: in carton box;
• watering pipe fitted with nipple, in plastic bag, 20pcs per each;
• Water spare parts like medicator, regulator,cup in carton box.

Company projects-automatic broiler feeding line:

We have lots of construction projects home and abroad, our sales volume in Philippine market is  NO.1, we are the best

and the most reliable supplier in this area, our company also have exported to Sudan, Saudi Arabia, Algeria, Nigeria,

Zimbabwe, Mozambique, South Africa,Tanzania, Zambia, Taiwan,Philippines,Indonesia,Pakistan,Uzbekistan,UAE,

Lebanon, Qatar, Palestine, Kosovo, Peru, Columbia, Honduras, Dominica Republic,Paraguay, Costa Rica, Australia, Fiji…

All get good feedback.In addition, our company is recruiting global agents, welcome you to join us with our utmost and

warm expectation.If you need more specific information, please contact us , we will provide you professional and detailed

solving plans.

Company information-automatic broiler feeding line:

Weifang U-BEST Husbandry Equipment Co,.Ltd is located in the cultural World kite capital, Weifang, China, where

enjoys convenient access to major transportation networks. Our company specializes in the collection of animal husbandry

equipment research& development, manufacture, sales, installment, overall design and after-sale maintance in the

integration of modern comprehensive import and export service. We are pursuing to be the most visible animal husbandry

equipment and solution provider worldwide.

Please feel free to contact us for more details about automatic broiler feeding line.
