Automatic Poultry Feeder and Drinker for Broiler Chick Automatic Poultry Feeder and Drinker for Broiler Chicken
Brand: U-Best
Poultry Automatic Pan Feeding/Feeder System
Automatic pan feeding/feeder system consists of a driving motor, a hopper, a conveying pipe, an auger, feed pan, a suspension lifting device, an anti-perching device and a feed sensor.
Parts and Parameter:

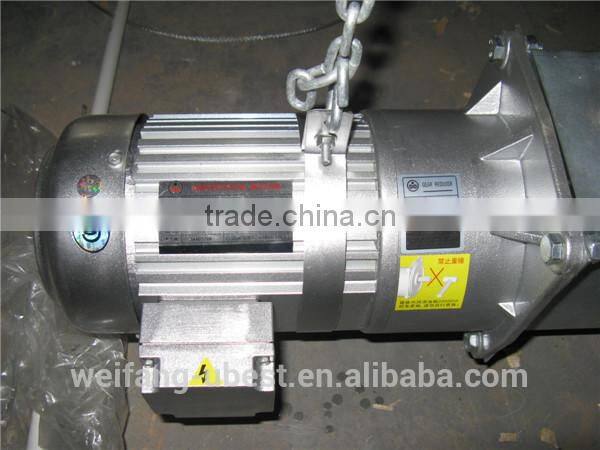

(1).Driving Motor high-quality special driving reduction motor, China Taiwan motor and European motor for your choice | |
Power:0.75KW/1.1KW/1.5KW; Voltage: 220V, 380V, others; Frequency:50HZ,60HZ; Phase:1-phase,3-phase. | |

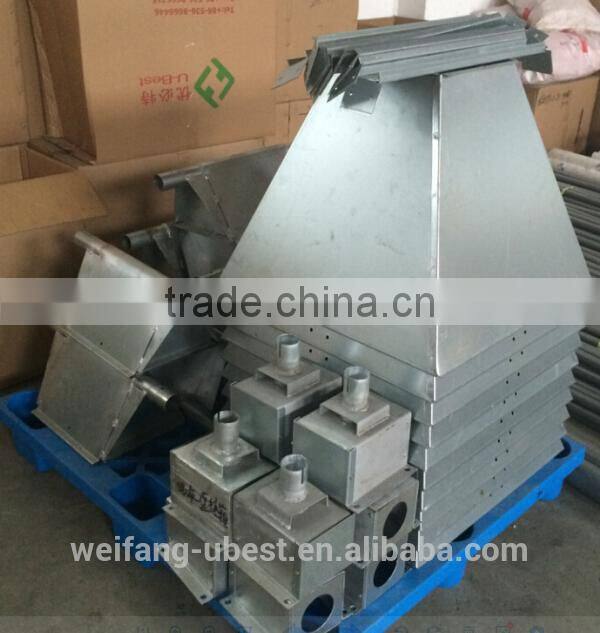

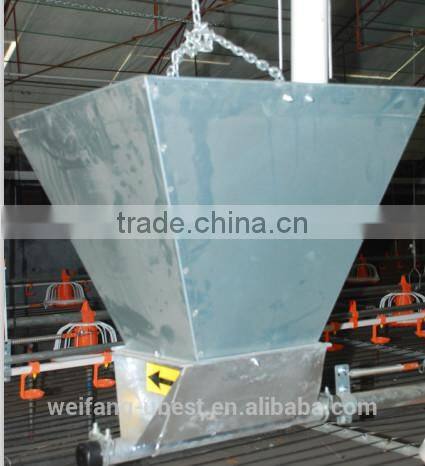

(2).V-Shaped Bin with Hopper |
|
Bin Volume:115L, Hopper volume:38L Material: hot-dip galvanized sheet | |

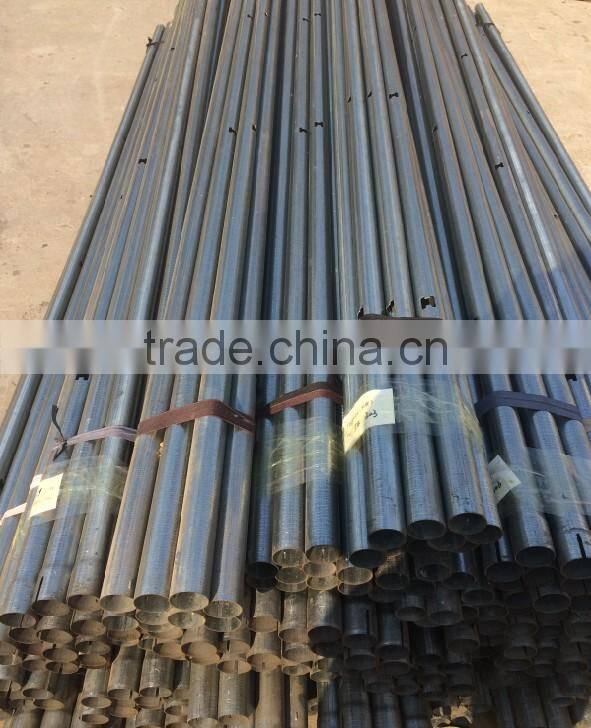

(3).Conveying Pipe and Auger |
|
Diameter:Φ45mm; Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2 | |

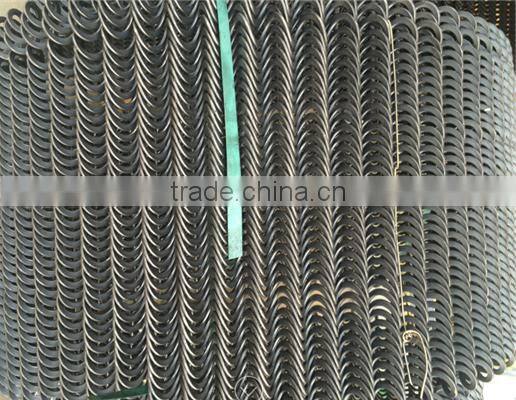

Auger Helical spring auger imported from South Africa, Feeding ability:450kg/h Maximum conveying length:140m | |

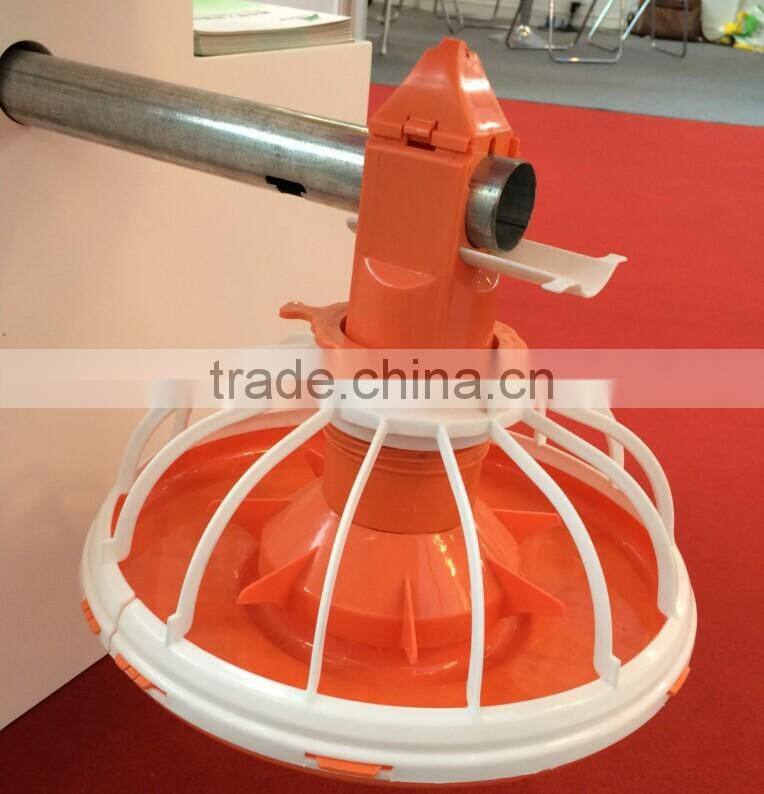

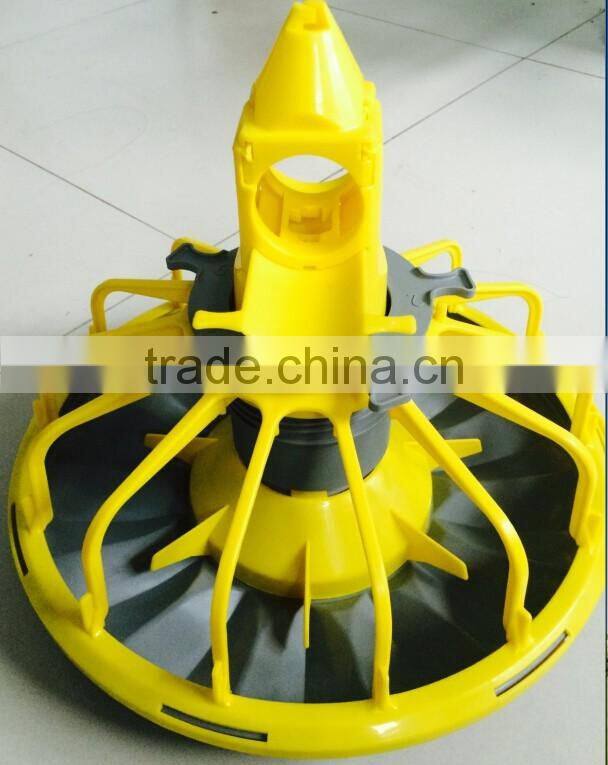

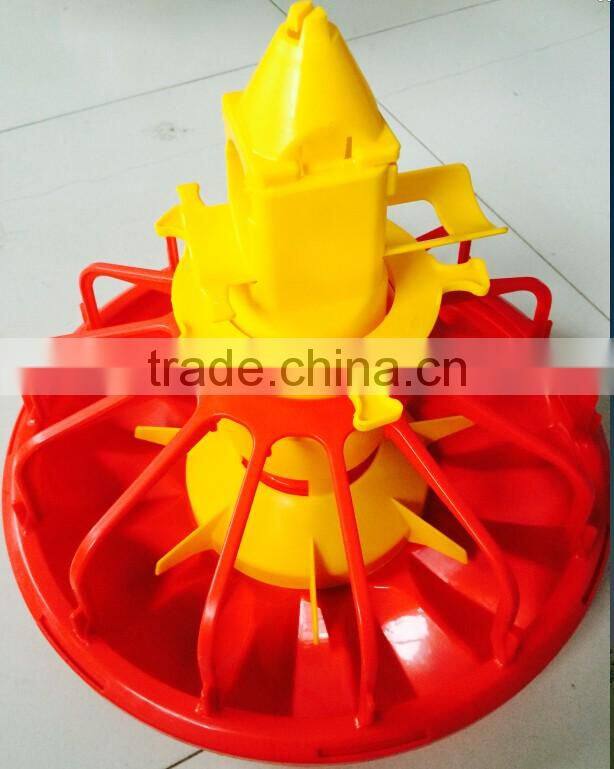

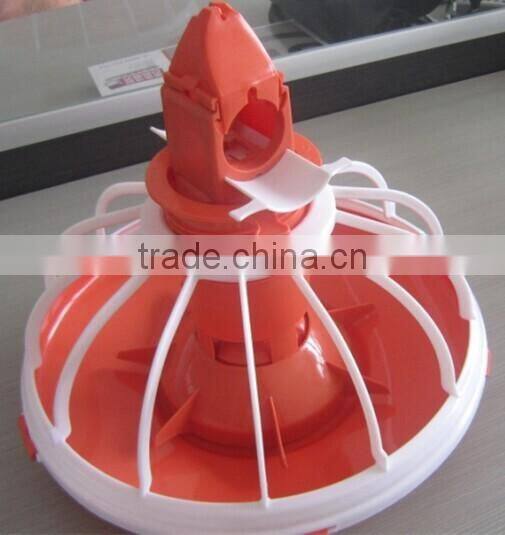

(4).Feeder Pan |
|
Pan distance: 4 pans/3 meters, 3 pans/3 meters. Material: ABS PP Diameter:360mm×360mm | |
(5).Feed Sensor | |
Imported from Germany; time delay range 0 to 2 hours. | |
(6).Hanging System winch in the middle of house, hanging point 3m, all steel wire. | |
(7).Anti-roost System | |
Noted Point: Max provide length: 150m Feeding line distance: 3m |
A Complete Set Automatic Poultry Equipment for Broiler Chicken Also Includes The Following Parts:
Main Parts and Parameters of Automatic Poultry Equipment | |
1. Main Feed Stock Line of Silo/Manpower Hopper System | automatically convey feed from silo or manpower hopper into feed ling line hopper . |
2. Pan Feeding/Feeder System | automatically convey feed into each feeder pan. |
3. Nipple Drinking/Drinker System | supply clean water to each nipple drinker, chicken can drink water from 360 degree freely. |
4.Ventilation System | exclude bad air out of chicken house and keep a suitable temperature for different stage chicken. |
5. Cooling Pad System | decrease chicken house temperature greatly and quickly when in hot season time. |
6. Environmental and Power Control System | setting suitable climate situation according to different stage chicken requirement, through control ventilation fans, air let and cooling pad's on /off to control the chicken climate automatically. |
7. Spraying and Disinfection System | humidify, cool, disinfect and clean chicken house. |
8. Heating System | warm chicken house. |
Packaging and Shipping:
Standard export package of automatic poultry feeder for export is in container. Shipment in 15 days after the order confirmation.
water: | PVC pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk; |
Company Information - Weifang U-Best Husbandry Equipment Co.,Ltd
We are professional leading manufacturer and supplier of automatic poultry feeder in China!
We have our own production line so we can control the quality very well with a good price! Our Equipment has passed ISO9001: 2008/PC Certification By SGS/Soncap/SASO Certification!
Because of our High Quality Products, Competitive Price and Superior After-sale Service, our poultry equipment has been exported to more than 40 countries and have good market reputation!
We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.
FAQ:
1. Q: I need a complete automtic poultry feeder equipment, and also need a best price, what should I do?
A: pls let us know:
(1). Chicken House Size (length x width x height).
(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
(4). Maximum and Minimum Temperature of Farm Location.
(5). House Type: close type of two side bricks building wall with 36” fans and air inlets, or open type of using curtain in two sides.
2. Q: what's the material of feeding pan and feeding pipe?
A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.
3. Q: how long is the life of your products?
A: more than 15 Years.
4. Q: Do you have any certificate?
A: ISO9001: 2008/PC Certification By SGS/Soncap/SASO.
5. Q: Sample available?
A: yes. but the client pay for the freight fee.
