automatic feeder system for poultry
automatic poultry feeder system includes:
Main feed line:Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main
feed line which controls motor on and off to achieve automatic feed delivery.
Advantages:Reduce labor intensity, one person is enough for one house.
poultry pan feeding line: There is a feed sensor at the end of each feeding line which controls motor on and off to
achieve automatic feed delivery.
Main feed line system:
(1).Silo features:Material: Galvanized sheet; Capacity:2.5T to 27T; Silo boot: one/two/three/four outlet
Silo Parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
--- |
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
--- |
--- |
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |
(2).Driving motor: 0.75kw, 380V, 50HZ, three phase, AC current
(3).Feed conveying pipe: diameter: 75*3.6mm, Material: PVC; Auger from South Africa, Feeding abality: 1400kg/h
(4). Feed Level sensor Germany IFM feed level sensor.
(5).If you don't use silo, you can use manpower hopper.Usually,if you just build one or two farm,we suggest you use
hopper instead of silo.

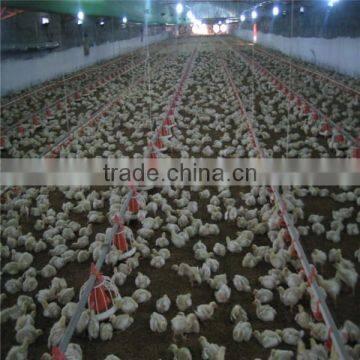

Automatic poultry pan feeding system:
(1).Feeder pan
(2).Delivery: 45mm diameter Auger ;450kg/h
(3).Hopper:70kg,1.0mm thickness,galvanized sheet
(4).Feed sensor and Drive motor:380v,50hz,0.75kw
(5).Hanging system , Anti-roost system.

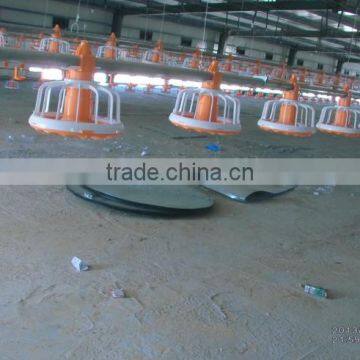

Details of broiler feeder pan:
Details of broiler feeding pan | |
No. of grilles per pan |
14 |
No. of birds per pan could feed |
40-55 |
Distance per grille |
70mm |
Density of broiler |
13-18 birds/M2 |
Max feed per pan for one bird per day |
180g/bird |
Dimension |
330mm×330mm |
Fearures: Easy installation.
The system can used consistently from day old to adult.
Long life.
Slates can easy to clear and keep poultry healthy.
Three types broiler feed pan are optiional:
Feed pan for femal chicks:
Feeder pan for male chicks:
Our package type:
Other systems also can be offered:

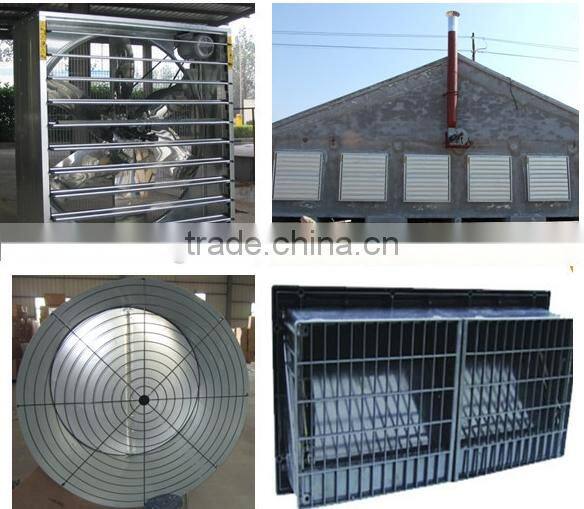

Ventilation system:

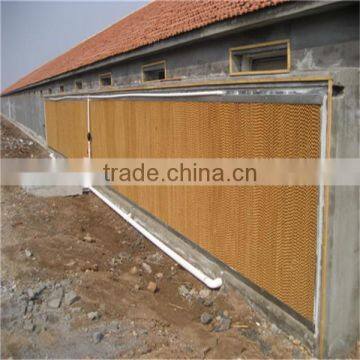

Cooling pad system:

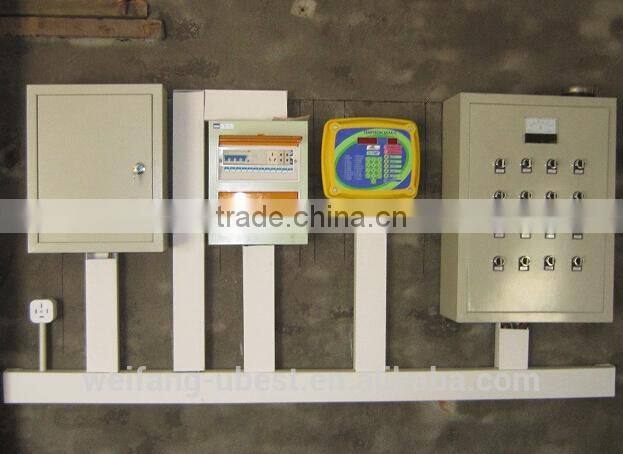

Envrionment control system:

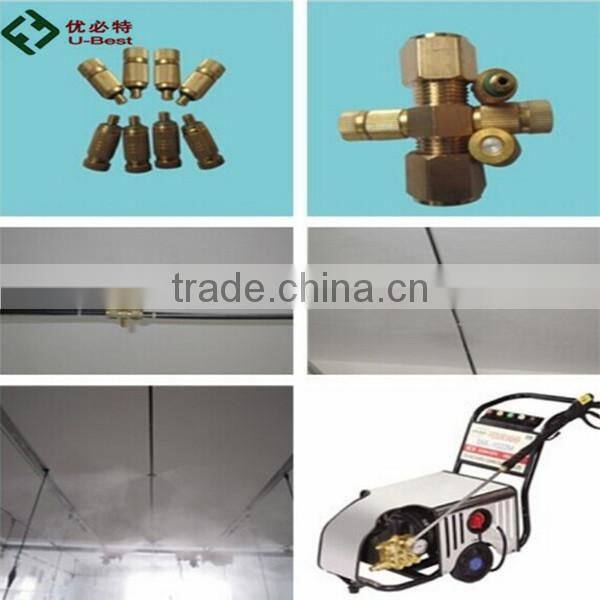

Spraying and fogging system:
U-BEST Husbandry Equipment Co,.Ltd is located in the cultural World kite capital, Weifang, China, where
enjoys convenient access to major transportation networks. Our company specializes in the collection of animal
husbandry equipment research& development, manufacture, sales, installment, overall design and after-sale
maintance in the integration of modern comprehensive import and export service. We are pursuing to be the
most visible animal husbandry equipment and solution provider worldwide.
Please feel free to contact us for more details about automatic feeder system for poultry.
To be the best partner of Poultry Husbandry Equipment.
