Plastic chicken house feeder pan
(brand:U-BEST)

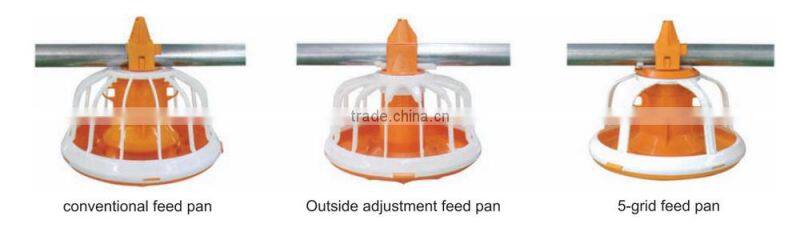

Feed pan type:
Main features of broiler feed pan:
*Outside adjustment feed pan has 6 gears of feed amount,and the other kinds has 13 gears.
*Feed pan slide switch could adjust feed flow until it is filled.
*Outside adjustment feed pan is more convenient,accurate and quick to adjust feed flow,the operation is to hand by the out side grids and rotate up and down.
*Pan bottom can be disassembled on the fround,working for day-old chickens.
*V-Pan plate design can reduce feed storage on bottom,so birds can always eat fresh feed .The design can also prevent the birds from staying too long on the plate.
*The edge of pan plate tilt towards the center,which can avoid waste of food.
*The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.
*Feed pan installation has fixed type or swing type.
Details of chicken feeder:
Feeding ability 40~55 chickens/pan feeder
Grilles 14 grilles/pan feeder
Space between two grills 40-50mm
Dimension 360mm×360mm
Material PP
Pan feeder spacing 3 pans/3m,1m spacing;
4 pans/3m,0.75m spacing
Components of automatic pan feeding system
Automatic pan feeding system consists of driving motor, hopper, conveying pipe, auger, pan feeder, feed sensor, a suspension lifting device and an anti-roost device etc.
The main function of the pan feeding system is to convey the feed in the hopper into each pan feeder to ensure the eating and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Weifang U-Best husbandry equipment company:
U-best offers a wide range of products with targeted designs according to clients' requirements in order to satisfy different environmental conditions. U-best will always be producing the state-of-the-art facilities, compounding with professional after-sale service to show all of the world.
