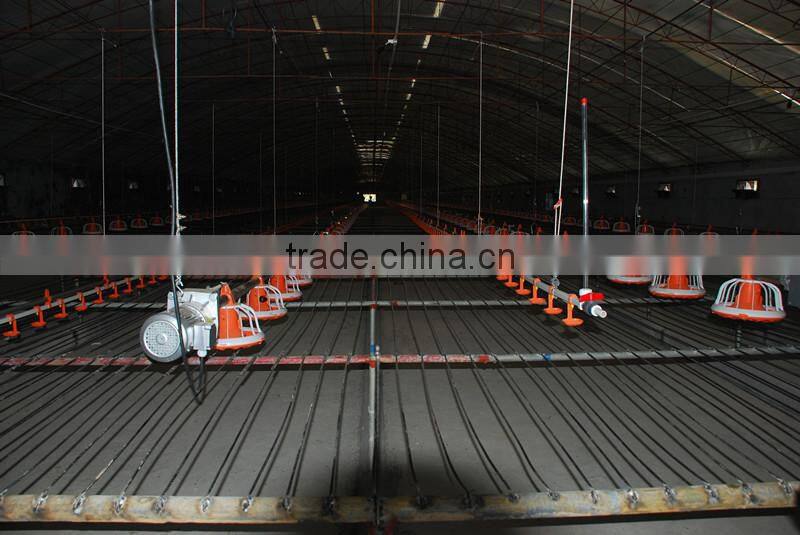

Automatic poultry broiler pan feeding system
(brand:U-Best)
Broiler pan feeding system:
The automatic feeding system conveys feed into hopper or tray by rotations of auger.,include:main stock line system and automatic feeding line system.
Product components:
A driving device ,a forage tower,a conveying pipe ,an auger and a material level sensor.the main stocking line system is mainly used to convey feed from the forage tower into the hopper of the feeding line and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

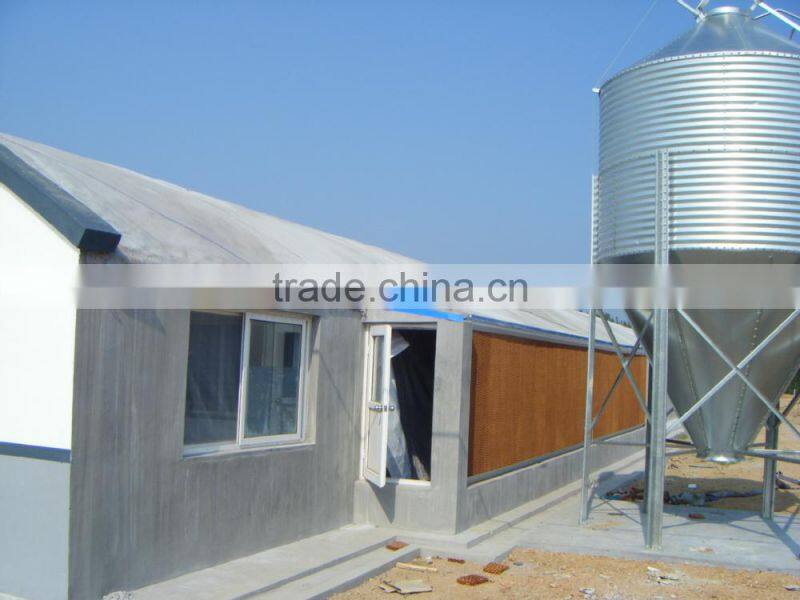

1.Forage tower of main feed line:
Model | Volume(m3) | Height(no foundation)(m) | Diameter(m) |
MRS-4.0(1802) | 6.2 | 4.9 | 1.833 |
MRS-7.3(2701) | 11.2 | 4.5 | 2.75 |
MRS-10.6(2702) | 16.4 | 5.68 | 2.75 |
MRS-14.0(2703) | 21.6 | 6.8 | 2.75 |
MRS-20.8(3602) | 32 | 6.9 | 3.667 |
MRS-27.3(3603) | 42 | 7.9 | 3.667 |
Material description:silo roof plate and silo wall plate layer-galvanized sheets with the thickness of l.2mm;second layer of silo wall plate-galvanized sheet with the thickness of 1.5mm;conical bottom plate-galvanized sheet with the thickness of 1.5mm;silo column-hot dip galvanizing on the surface No.10 channel steel;support-3.6mm,8 supports/silo. | |||
2.Automatic pan feeding system:
Diameter of conveying pipe:75*3.6mm,material:PVC
Helical spring auger from south Africa,feeding ability:1.400kg/h.maximum
Conveying length:60m
Radius of bending pipe:R 1500(inclination angle 30 degrees)

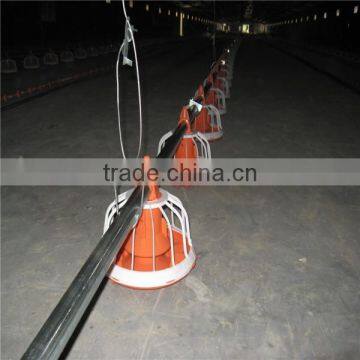

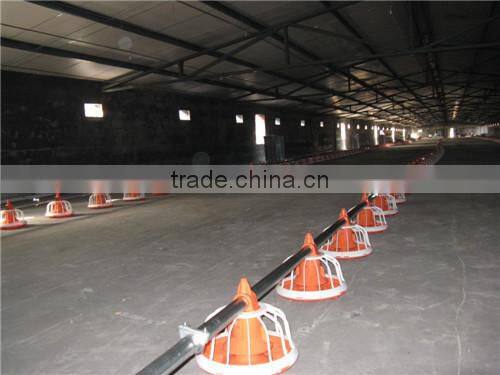

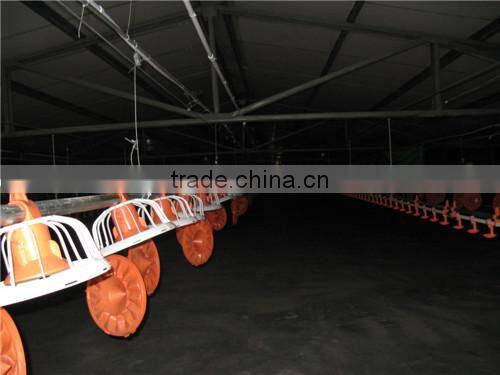

3.trays (with control tray)

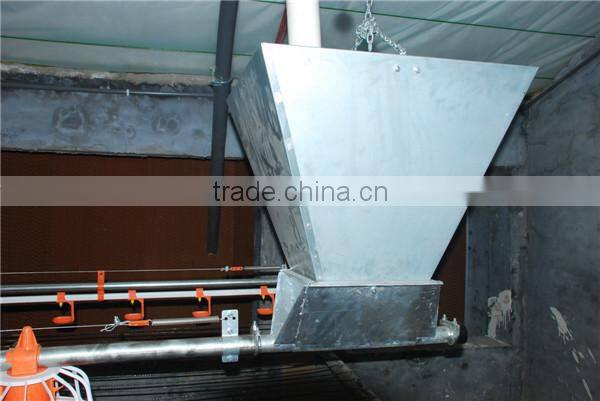

4.Hopper

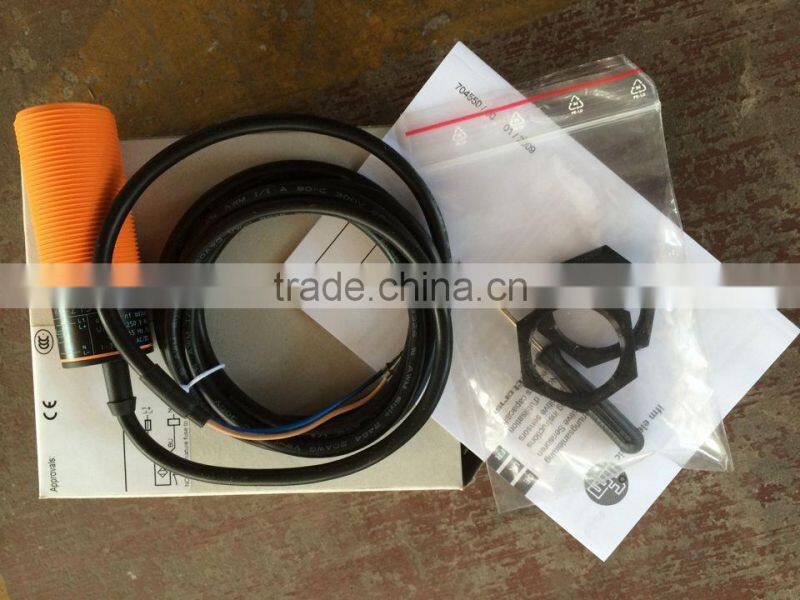

5.Material level sensor
from Israel.Time delay range 0 to 2hours.

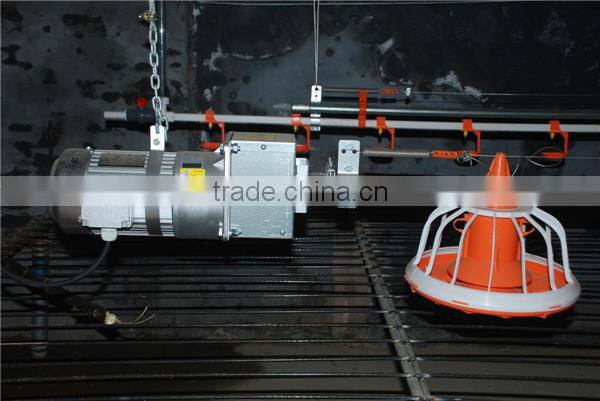

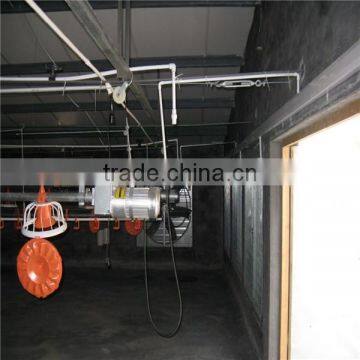

6.motor device
high-quality special driving reduction
Power:0.75kw, voltage:380v,frequency:50hz,three-phase AC current.

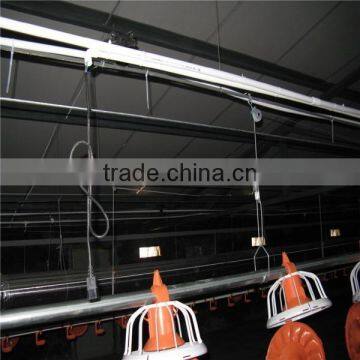

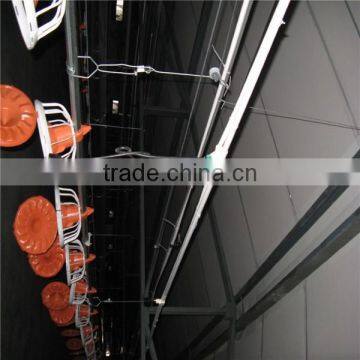

7.suspension lifting device
Suspension lifting system mainly including:winch chain,wheel S-type hook,Fixing material,steel wire ropes and so on.
U-Best poultry feeding line service:
We supplied series service,you will have no any worries for chicken breeding.welcome to visit our factory and pls feel free to contact me.
Weifang U-Best Husbandry Equipment company:
U-best offers a wide range of products with targeted designs according to clients' requirements in order to satisfy different environmental conditions. U-best will always be producing the state-of-the-art facilities, compounding with professional after-sale service to show all of the world.
U-Best contact person:
If you and your friends are interested in automatic chicken house design and equipment,pls contact me freely.We will supply you best price .It is our honor to serve for you.Thank you very much.
