Nipple Drinker for Broiler Breeder and Chicken

Nipple drinker for broiler breeder and breeder (U-Best)

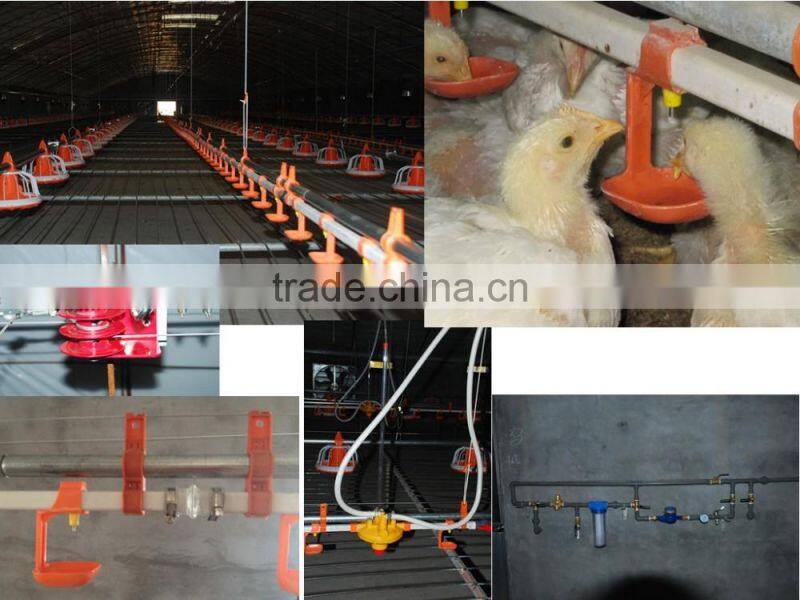

Main part of the system:filter,pressure regulator,nipple drinking line.Lifting and suspension system,electric shock system etc.

Lifting and suspension system:

Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone's distortion,it is bad for chicken growth,and also can have some water wasting).it is very easy to adjust drinking system's height  if use this system.

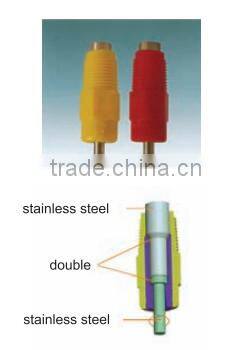

Nipples for the system:

Use good quality engineering plastic for outer,for the inner,we use good quality stainless stell.All nipples are anti-rusting,service life over 10 years.

Double-sealing structure,with good seal ability,can avoid to effect the chicken house for leaking.Valve rod is movable in 360 degree,it's suitable for all chicken to drink.

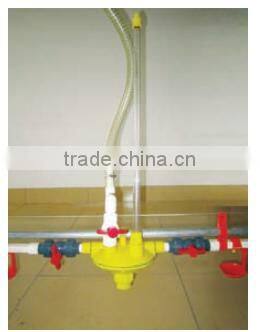

Water display level tube:

Use high transparency& impact resistant materail,it is sturdy and durable,and convenient to watch water level.This device with advanced design,it is very easy to take down and clean.

Nipple capacity ablility:

Broiler:8-12/nipple.

Reserve layer:12/nipple.

Reserve turkey:12/nipple.

Duck:10/nipple.

Breeder:10/nipple.

Pressure regulator:(double barreled with large flow capacity)

Advantage of the pressure regulator:Regulating stability

High switching performance

Water supply is sufficient& equality

Recoil cleaning with good cleaning result,and can save time and save water.

Good quality movable valve,it is easy to change.

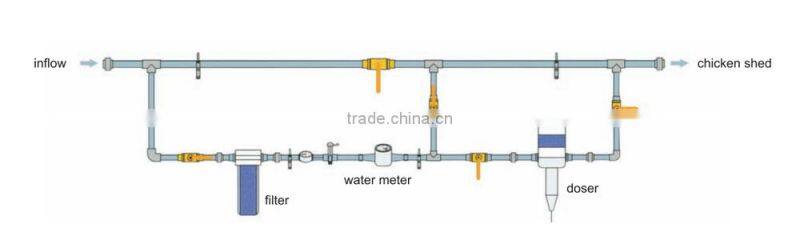

Front part of drinking system:

Front part is controller of water,it is main function is to adjust water supplying pressure and stabilizing drinking volume.This part is usually installed in control room.

* Pressure regulator:make sure to supply stable water to drinking line.Anti-backlash device can discharge the impurity in pipe.

* Filter:main function is to clean water and avoid blocking nipples.

* Water meter:to measure water usag volume.

* Doser:can add medicine exactly to prevent disease.

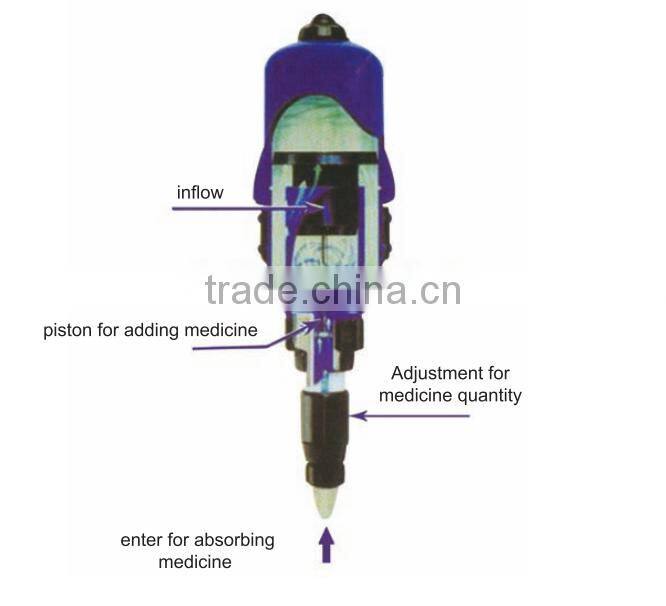

Doser:

* Can add medicine into drinking system automatically.

* Dont use power.It is economical and reliable.

* Accurate,after setting,it can adjust medicine volume according to water pressure change.

* It is easy to control and maintain,with good corrosion resistance.
