TAIYU Farm Machines for Laying Hens
My introduction is as following:
Cage specification of laying hens
Cage fittings specification
Picture showing
Company service
Contact with me
Farm machines for laying hens - cage specification of laying hens
Type |
Tier |
Capacity (birds) |
Size per unit (L*W*H) (M) |
Surface treatment
|
Lifespan (years) |
L1 |
3 |
96 |
1.9 by 1.8 by 1.6 |
electro galvanization |
8 |
L2 |
3 |
120 |
2.0 by 1.8 by 1.62 |
electro galvanization |
12 |
L4 |
3 |
120 |
2.2 by 2.4 by 1.65 |
hot galvanization |
20 |
L6 |
4 |
128 |
1.9 by 1.8 by 1.8 |
electro galvanization |
8 |
L7 |
4 |
160 |
2.0 by 2.4 by 1.77 |
electro galvanization |
12 |
L8 |
4 |
160 |
2.2 by 3.0 by 1.95 |
Hot galvanization |
20 |
Note:
1. All of them have the necessary fittings:cage, cage frame, drinker, water pipe,
water tank (or water pressure regulator), feeding trough, connectors and the installation tools.
2. Hot galvanization will make more zinc coat in the surface of the cage mesh. then the cage won’t rust easily. So the hot galvanization will have longer lifespan.
3. Same capacity, bigger size will make the chicken have more space and feel more comfortable.
4. L4 and L8 type is the best quality cage, which has no overlap between each tier and the manure will drop on the floor. The manure won’t corrode the cage. So the cage will have longer lifespan.
5. Thicker wire diameter and good cage frame will also extend lifespan
Farm machines for laying hens - cage fittings specification
Cage mesh |
wire diameter from 2.0mm to 4.0mm cold galvanized or hot deep galvanized |
Cage frame |
Angle bar frame and U- type steel frame |
Feeding trough |
1) 80*90*110mm 2) 70*80*120mm 3) 70*80*90mm The loading capacity of each layer of one Group: 60KG/PC Above Size is as to different usage, different quality. |
|
Water pressure controlling system |
Supply cleaning and average fresh water for each chicken |
Drinkers |
Stainless steel nipple drinkers Warranty of best quality is 15 years |

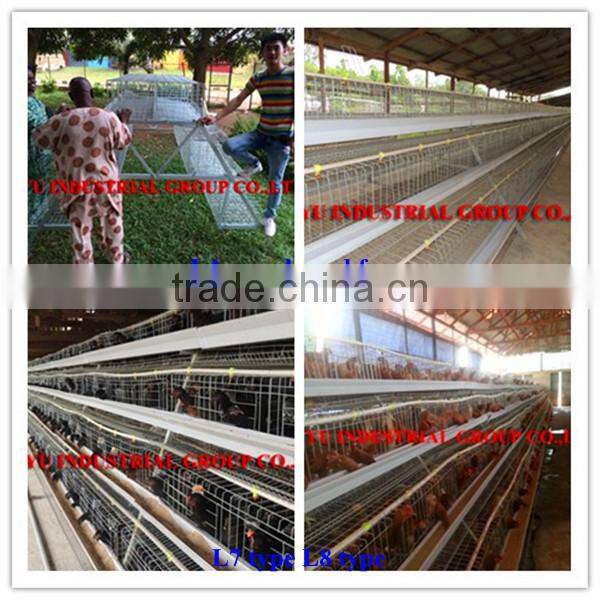

Farm machines for laying hens - farm project picture showing

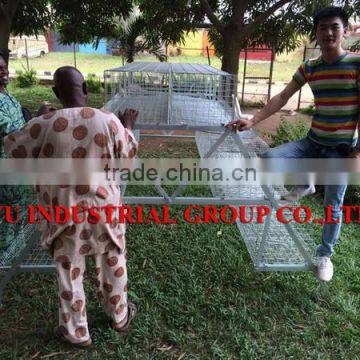

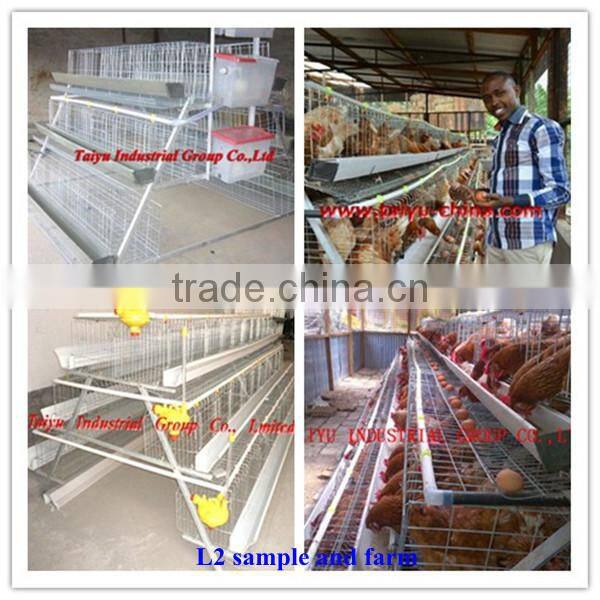

Cage sample

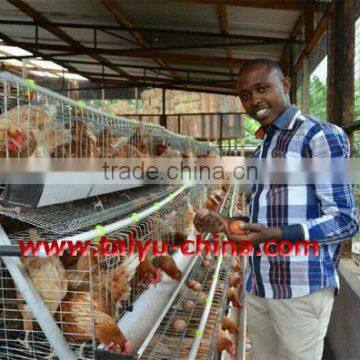

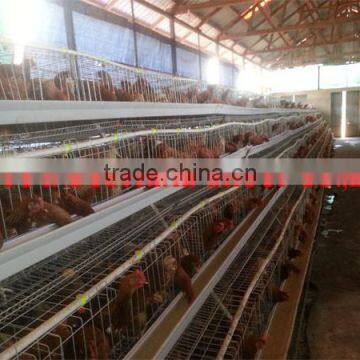

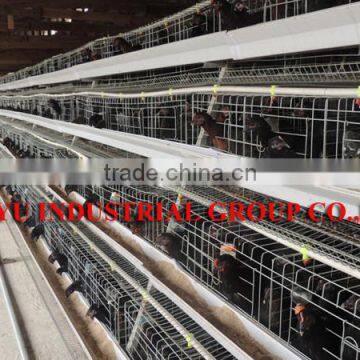

Layer cage farm

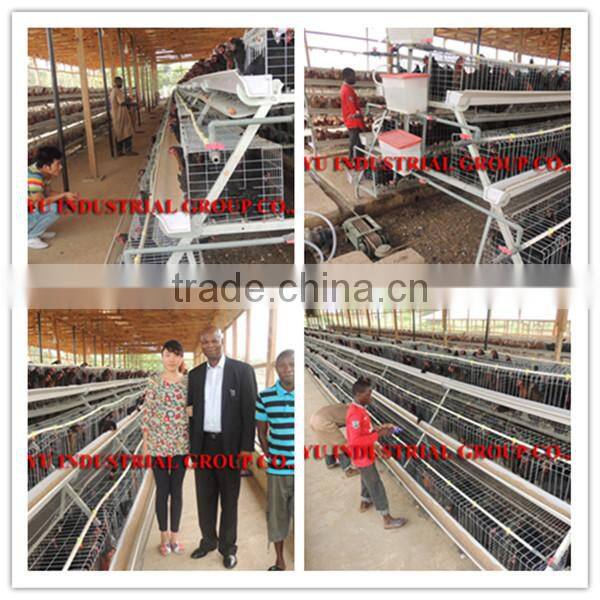

New layers cage farm with manure removal machine. We took the picture when we visited customers this year.
Each year, we visit customers, check the cage quality and change broken fittings for customers freely.
Farm machines for laying hens - company services

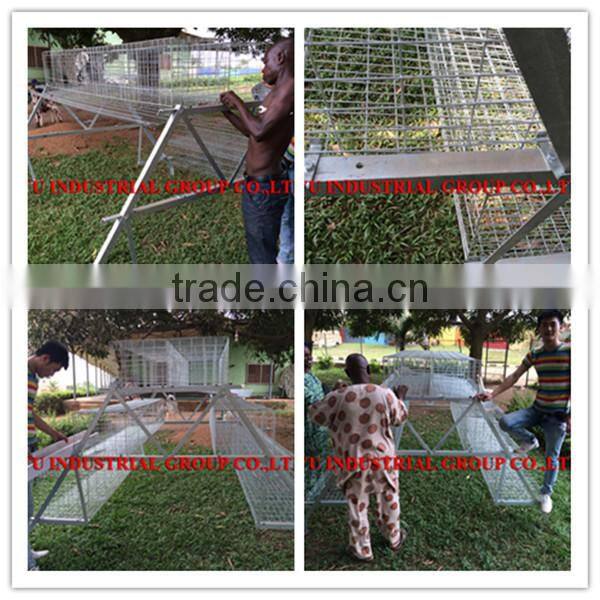

Cage installation.
We can help customers install the cage when we visit them.We will also send the installation tools and instruction to customers when they import the cage. We have agents in some countries and they have installation team and can install the cage for you.

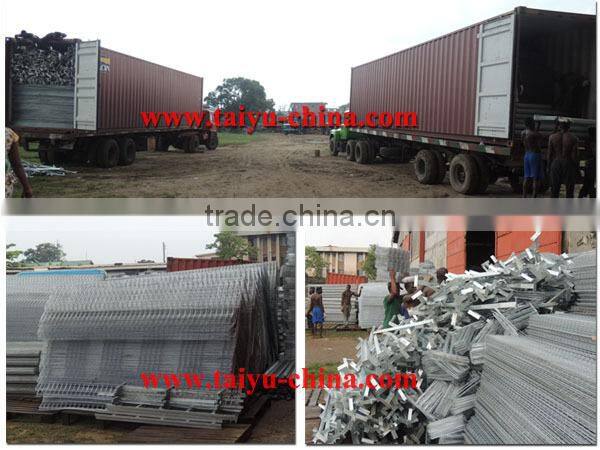

Foreign warehouse and agent
Warehouse and agent in some african countries, like Nigeria, Kenya, Uganda, Zimbabwe, Tanzania and so on.
Customers can check the cage quality from the agent any time. And they can also get their cages from our warehouse directly.
In this way, they can save much time and money.
