Specifications

Feeding systems

Automatic Pan Feeding

There are several different systems available for delivery and distribution of feed to

broilers. Since feed constitutes the major share of total production cost,

wastage should be an important consideration in the choice of system.

One of the major systems available is Automatic pan feeders.

Automatic pan feeding systems have become the industry standard.

Lyra is our new pan feeders, which has been designed to guarantee

excellent results with broilers and commercial layers.

The idea is to ensure - Quick turnaround time, Simplicity of operation, Feed savings and Overall reliability

Advantages of the pan feeding systems are:

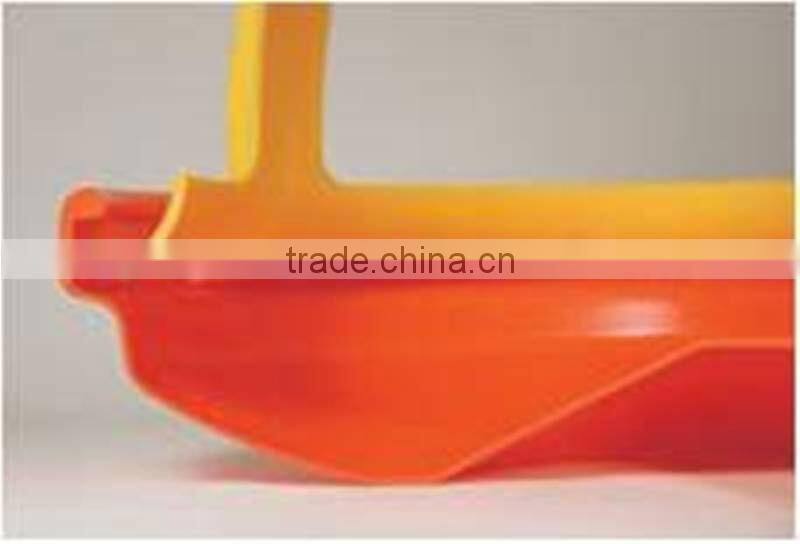

• 100% pure durable polypropylene, made in Italy. The surface is smooth for easy cleaning and to prevent feed from getting trapped.

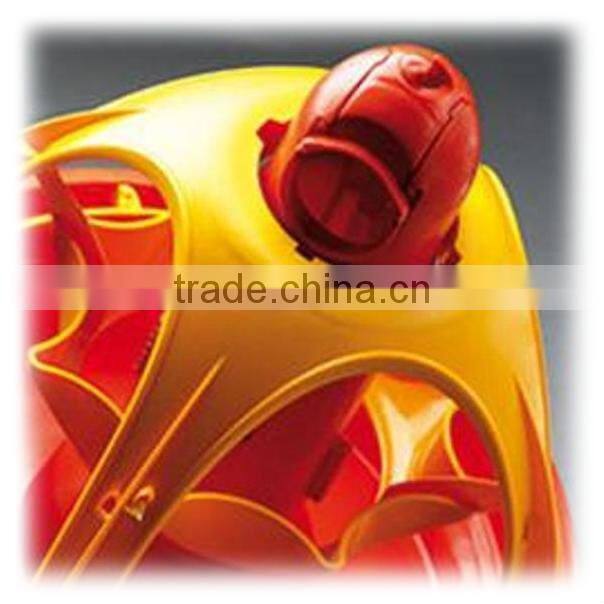

• The special grid shape and the central ring let chicks use the pan but discourages them from stepping into it and, at the same time, they assure the maximum feed access.

• The special edge reduces  the feed waste, in all conditions to a minimum.

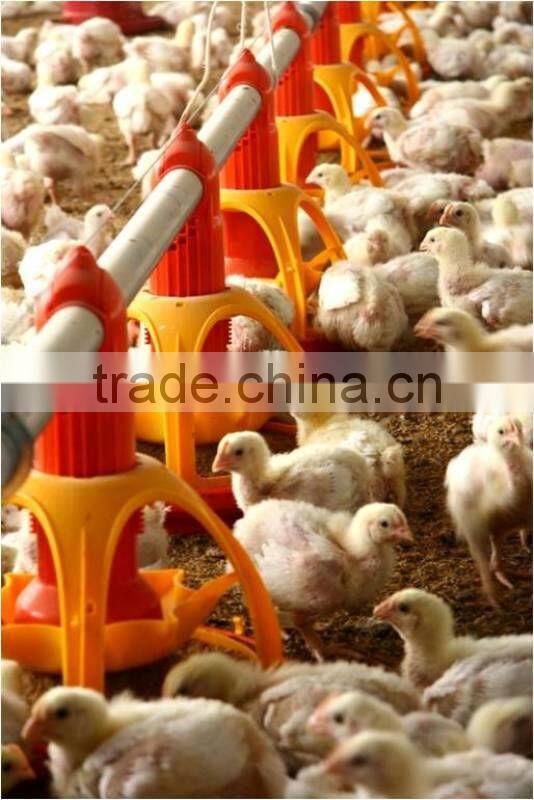

• Day-old chicks can easily reach into the pan and after the first 8-10 days they start to feed from outside of the pan. In this way, this form of pan feeding achieves the double aim of improving the growing time in the first period and maintaining clean feed during the whole cycle.

• The slot between the grid and the pan edge allows any spillage to fall back into the pan, so recycling the small quantity of feed which is usually wasted as a result of bird movement close to the pan.

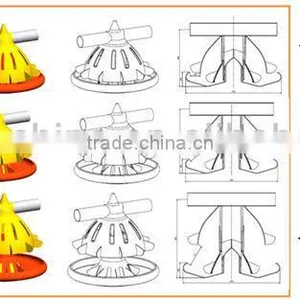

• At the beginning of the cycle one of three feed levels is selected. With a simple and easy operation you can put the feeder into the cleaning position where it is free to turn around the drop tube under a jet of water.

• The smooth surfaces, the hinged pan, and the “clean position” assure a quick and effective cleaning.

• Changing the type of birds to be reared or the cycle length, will no longer be a problem.

• The farmer won’t be forced to face expensive investments to adapt the installations to the new requirements.

• For all these reasons pan feeding guarantees reliability and functionality, but above all, maximum flexibility.

 The system is known for the centralized adjustment of the level of the feed in the pans has been further impr
Manual Feeding Systems

PVC Tube Feeder: - suspended by nylon cord and is easily adjusted to correct feeding heights.

Recommended number of birds per feeder (20kg), 80 – 100 birds.

Replacement parts for the Tube Feeder with assembly instructions are also available for your convenience.

Plastic chick trays: - Recommended number of chicks per tray, 80 – 100 chicks
