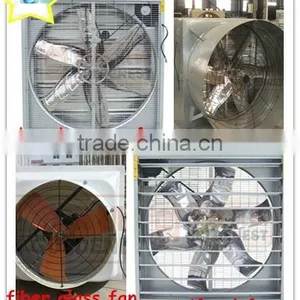

exhaust fan poultry fan with siemens motor
Our products are widely used in agriculture, industry and other high population concentration or closed places for cooling, such as greenhouse (flower, vegetable and plant), animal house(poultry farm, livestock breeding:cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Details:
1.275g good quality galvanized sheet frame and shutters, durable. Special fan blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
2.Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete, high corrosion resistance.
3.Chinese famous motor OEM by special design for fan(or you can choose Siemens motor), the first put in the phase lack protection device which would power off when shortage of electricity.
4.Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life.
5.Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
6.Using the most advanced automatic belt tensioner to ensure working efficiency and good performance.
7.Hot-dip galvanized blade support and safe net ensure never rust.
8.Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
exhaust fan poultry fan with siemens motor
Technical Parameters:
This is the best seller in my company,many more models specifications,pls check the test report below.
Model |
Diameter Blades |
Total Pressure |
Noise Decibels |
Input Power |
Rated Voltage |
Motor Rotational Speed |
Blades Rotational Speed |
mm |
pa |
db |
Kw |
v |
rpm |
rpm |
|
YTD90S-4 |
1250 |
56 |
≤ 70 |
1.1 |
420 |
1400 |
439 |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------

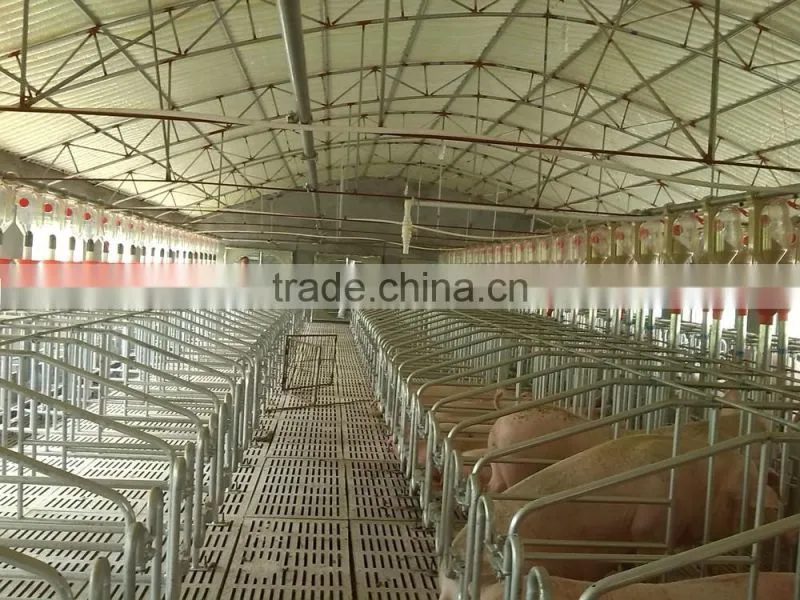

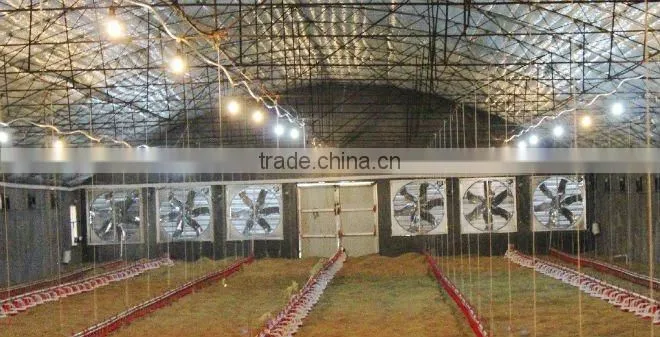

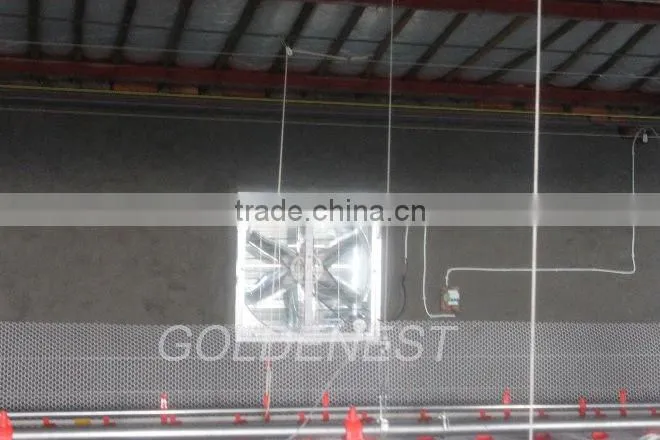

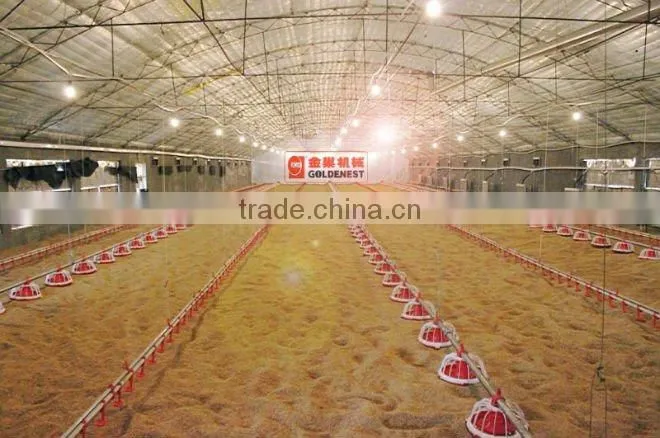

Installation site:
exhaust fan poultry fan with siemens motor
-------------------------------------------------------------------------------------- -----------------------------------------------------------------------------
Company profile:
Our group established in 1987 with more than 27 years professional experience in this field.We can provide a whole set of equipments you want in poultry farm and livestock house,but ventilation equipment is our main product,such as fans.
We can provide you good product quality and the best after-sales service.If you have any problems after buying,installation or other problems,we’ll settle them asap. for you!

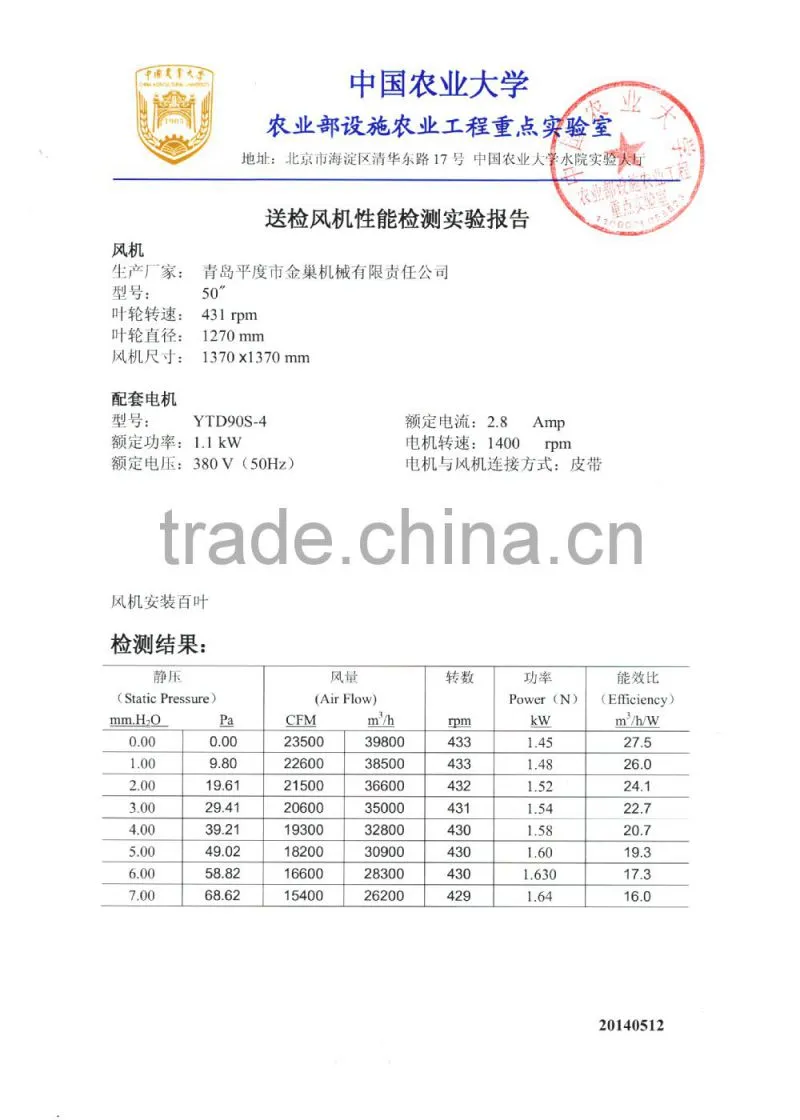

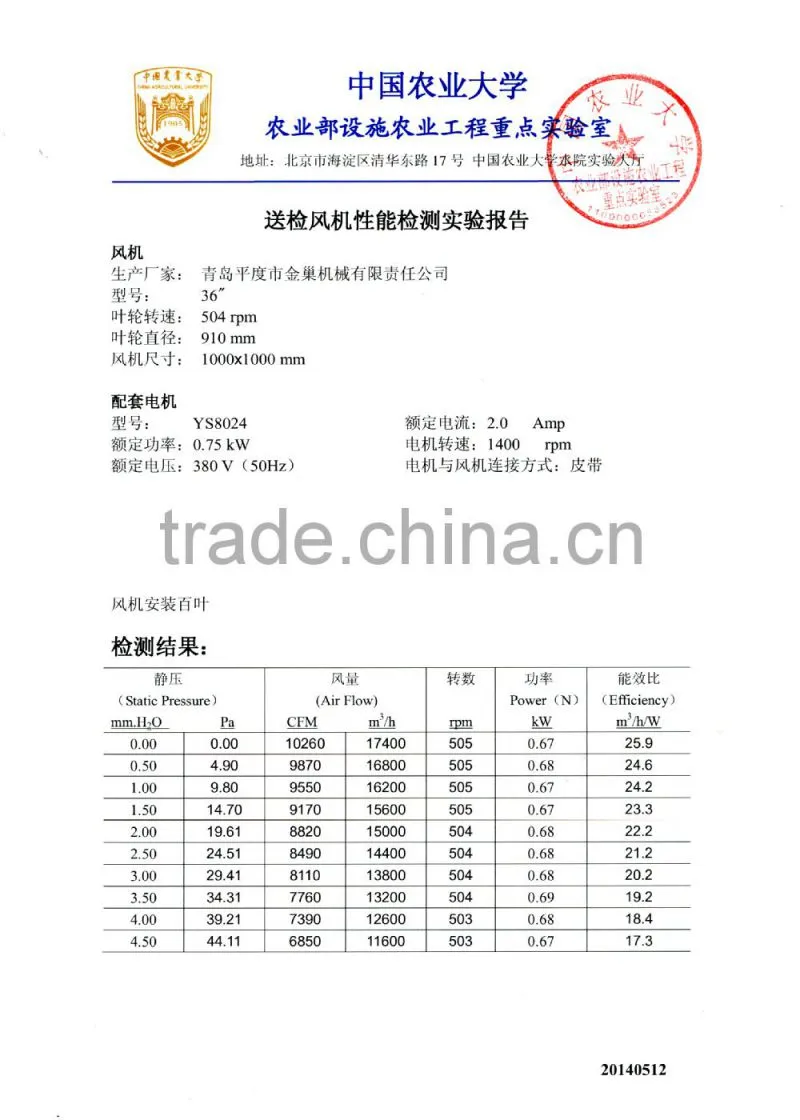

Testing report issued by the most professional organization and the best agricultural university in China:
Welcome to contact us and hope to cooperate with you in the near future.
------------------------------------------------------------------------------------------------------------------------------------
Trade Infdormation:
1.Trade Terms:EXW,FOB,CFR and CIF
2.Payment Terms:T/T,L/C
3.Payment Condition:30% deposit in advance,70% balance before delivery
4.Delivery Time:within 7 days
5.Packing:standard export package
Certificates:
A small parts of Patents:
First prize for Enterprise independent innovation:
High and new technology enterprise:
Please feel free to contact me(My skype:yuzhihuahuayu), if our products are suitable for you.
(You'd better provide more details about your animal farm in the inquiry,only in this way can we give you a accurate quotation ,thanks in advance)
