House safety electric fence with GPS tracker fence---Tongher Technology

Specifications

security alarm ,12V DC input
waterproof
break wire alarm
working mode: auti,low volt,high volt
consumption:less than 15Watts













Residential and Property Perimeter Security Electric Fence System

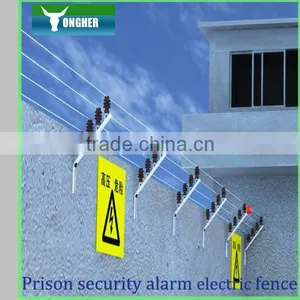

1. electric fence installed on the private house
2. prevent intruder to break in.
3. intruder gets electric shock
4. the electric fence system will send alarm to the guard room meantime.
5. the electric fence can integrate with the CCTV,GSM and alarm panel as a perfect security system.
6. Compliant with IEC60335-2-76
7. Tested for EMC Compliance
8. power consumption below 10W.





Security electric fence applied area: community,villas,transformer substation,waterworks,tabacco warehouse,school,factory, goverment, farm and detention house, prison, weapons depot.



Electric Fence System Summary:

Perimeter Security Electric fence is a psychological barrier that keeps animals and would be criminals and predators out. A pulse of electric current is sent along the fence wire, about one pulse per second, from an energizer which is grounded. When the intruder touches the fence, it completes the circuit between the fence and the ground and receives a short, sharp but safe shock. The shock is sufficiently memorable that the intruder never forgets.



Because it is a psychological barrier, it does not require great physical strength. However, it must be well designed and constructed to absorb some pressure from animals, snow and wind. The energizer must have enough power for the length of the fence and for the animals being controlled.



Advantages of security electric fence
• Early detection through alarm warning
• Effective protection through high voltage shock
• Affordable: Electric fence is 50% less expensive to build and maintain than barbed wire.
• Easily constructed
• Physical barrier
• Psychological barrier
• Low maintenance
• Lightweight and portable
• Durable – due to low physical contact
• Easily modified or expanded
• Keeps criminals out
• Can be connected to armed response
• Offsite Monitoring
• Early detection through alarm warning
• Effective protection through high voltage shock
• Lightening and power surge protection
• Internal battery backup
• Power saving



Electric Fence Energizer Technical Index

Power supply	AC180V-240V (other country's power supply is optional)
System Power Consumption	10Watt
Operation Environment	Temperature: -40-+50°C moisture: ≤95%
Output Parameter	output peak voltage: 5KV-10KV
	Output low voltage: 700-1000V
	Peak current of Pulse:  <10A
	Pulse duration: ≤0.1s
	Pulse interval time: 1s
	Max quantity of electricity of pulse: 2.5mC
	Max energy of pulse: ≤5.0J















--------------------------Your best solution for a security House!!!
