Farm Electric Fence Energizer Wire Strainer-----Tongher Technology

Specifications

benefits of electric fencing:

1.Affordable

2.Easily constructed and maintained

3.Durable, because of low physical contact

4.Light weight and easily transported

5 Easily modified

6 Less animal hide and pelt damage

7 Deterrent to trespassers and predators

So for convenient, economical animal control, improved pasture management and more profitable farming, a Gallagher Power Fence? System is the trusted solution.

Animal control is perhaps the most widely recognised reason for electric fencing. Not only does electric fencing keep domestic animals or livestock contained, it has various other important uses,

Electric fencing is ideal for containing all types of animals: from horses, sheep and cattle to elephants, tigers and even chimpanzees. Tongher Technology electric fence is a safe, trusted fencing solution.

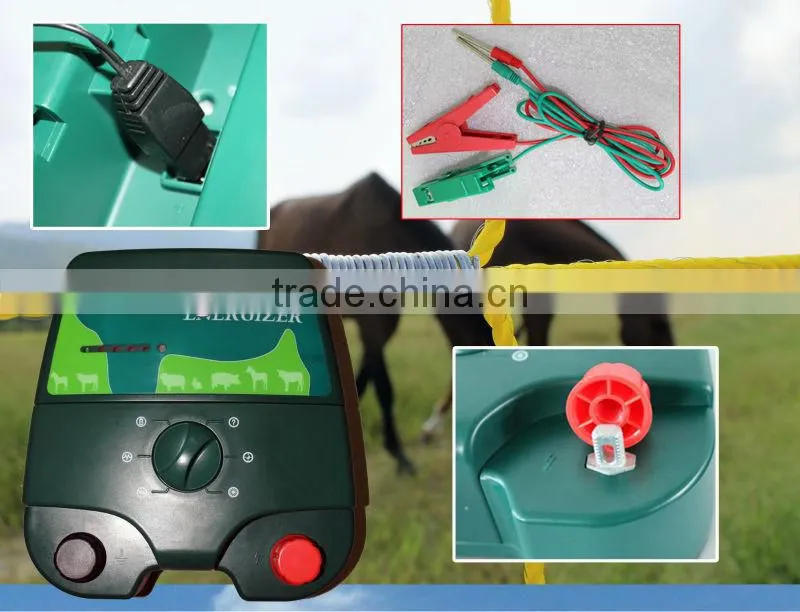

TH-polar 5 technicl specification

1. input voltage: 12V DC
2. output voltage: 12kv
3. pulse width: 100us(1/1000 second) 4. switch to 1.5s or 2.5s mode freely
5. automatic switch between day mode and night mode
6. transformer change the range of voltage:110~240v ac
7. powered by lead-acid battery and solar panel
8. six operation mode
9. water-proof and anti-dust
ing length:200m to 20000m
energy 6.0 joules
12.max output energy:5.0 joules

13.The output voltage for 500 Ohms :7.9KV

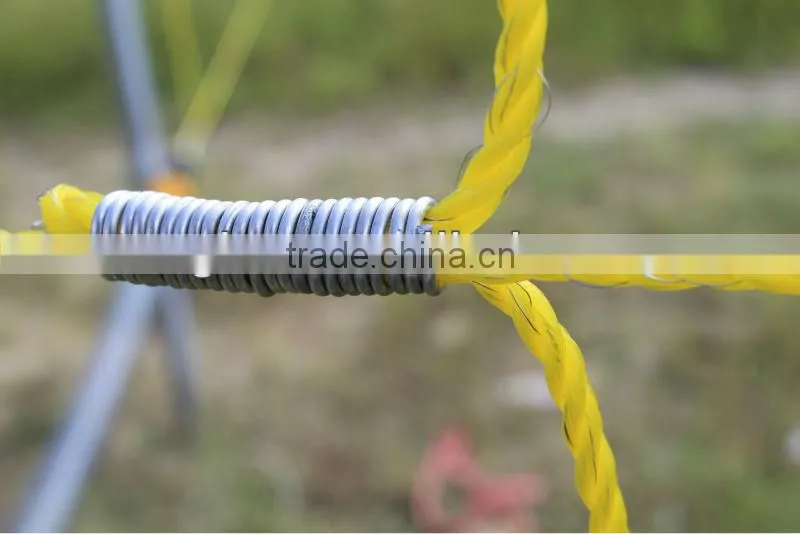

Polywire 5mm specifications:

Φ5mm , multifilament rope

Resistance : 3.9 Ω per meter

Strength : 410kg

Package : reel ,carton

Specifications:3 strands,UV,6x0.20 mm SS wire

Six operation mode:

Hold-on mode: the green led indicator is on and other, off; Lcd shows the battery voltage and right number is 00.0. Under hold-on mode, the energizer does not generate pulse.

1.5 Second pulse mode:energizer generates pulse periodically and the interval is 1.5 second. The green led indicator is on and all red led indicators are on; the right number

shows the actual output voltage.

2.5 Second pulse mode: energizer generates pulse periodically and the interval is 2.5    second. The green led indicator is on and all red led indicators are on; the right number

shows the actual output voltage.

Battery mode: the energizer generates pulse each 2.5 seconds. The green led indicator is on and red led indicators are on. The voltage of battery is not less than 11.8v. When the voltage decreases by 0.1v, one red indicator will be off from the right side. When battery

is running out, all the indicators will be off and energizer will do not work.

Day 1.5 seconds and night 2.5 seconds mode: light sensor detects it is day or night and then switch to this mode. In the daytime, pulse will be generated each 1.5 seconds;

while at night, pulse will be released by energizer each 2.5 seconds.

Day 2.5 seconds and night 1.5 seconds mode: light sensor detects it is day or night and then switch to this mode. In the daytime, pulse will be generated each 2.5 seconds;

while at night, pulse will be released by energizer each 1.5 seconds.

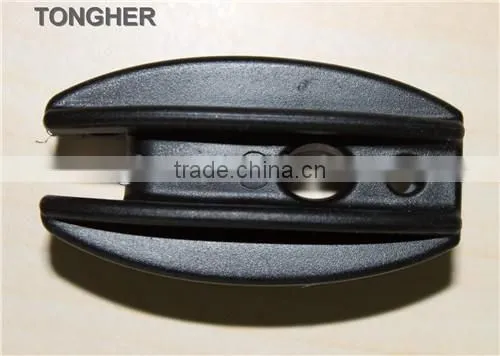

Tongher Technology Insulators:

Includes all kinds of insulators for electric fence projects home and abroad.
