Perimeter Security High Volotage Fencing System With Alarm

  Shenzhen Tongher Technology Co.,Ltd ,also called Tongher Electric Fence,Tongher Fence,is established since 2007,dedicating to provide stable professional products,solutions and services of electric fence system, Tongher has offered perimeter security services and agricultural livestock animal solutions of electric fence to thousands of companies and governments in more than 20 provinces in China domestic market and foreign countries over 6 years.

• Unless high/low voltage output disarmed of electric fence, don’t touch live fence
• Always unplug the fence before handing any part of the fence
• Don’t install electric fence during the thunder, don’t install controller in moist place.
• Before installation or using the product, professional training on technology is necessary
• To maximizing the performance of your fence system,During the installation, follow the instructions to make sure the grounding of products. Refer to “4.9 item”
• Once electrified , the inside of controller is 220v 50Hz AC, with 5-10KV high voltage pulse on the output port , don’t touch any part to make sure safety
• The related electronic technology knowledge is necessary, read the user instruction and operate it carefully with correct methods before installation, otherwise,our side don’t bear any responsibility if any accident arise.
• In case of urgency, turn off power supply, and wait for the professional staffs to check, analysis and repair ,or contact our company, don’t repack it by your own.
• Follow all national,state and local regulations that may apply to installation of electric fence in your area
• Refer to authorized repair center or our company for service,There are no ueser serviceable parts,Never alter the design of the energizer ,doing so is dangerous and will void the warranty.
• Do not run fence wire above ground near high voltage power lines.if too close,the electric fence may pick up dangerous levels of power from high voltage lines.Never cross under a high voltage line with electric fence.
• Sparks may occor in electric fence system,Therefore,the area of high fire risk,fence should not be installed.

Feature:

1.    New generation energizer that can be used as a simple security fencing energizer, but can also be a alarm panel,

   there are two alarm input for gate magnetic contacts or Infrared detector or other kind of sensor and

   detector with NO/NC output.

2.    LCD or LED indicate the zone ID the working state the voltage of live wire.

3.    High/low voltage switch manually, long-distance equipment auto switch function.

4.    RS 485 communication protocol offer long distance management solution.

5.    DC12V, NC/NO dry contact alarm output(Relay output), can work with other modern security products.

6.    Set up alarm delaying triggered time freely

7.    Spacious space is enough for 4-7Ah back up lead acid battery.

8.    Multi power supply function make the energizer working at all kind of poor power condition,

   Mains AC110-240V, Battery or Solar panel with DC12V.

9.    Sealed metal casing would reduce the electromagnetic radiation effectively, preventing the invisible damage

   to our family health or other electrical equipment.

10.  Remote control(wireless) makes the arming or disarming easily from any place.

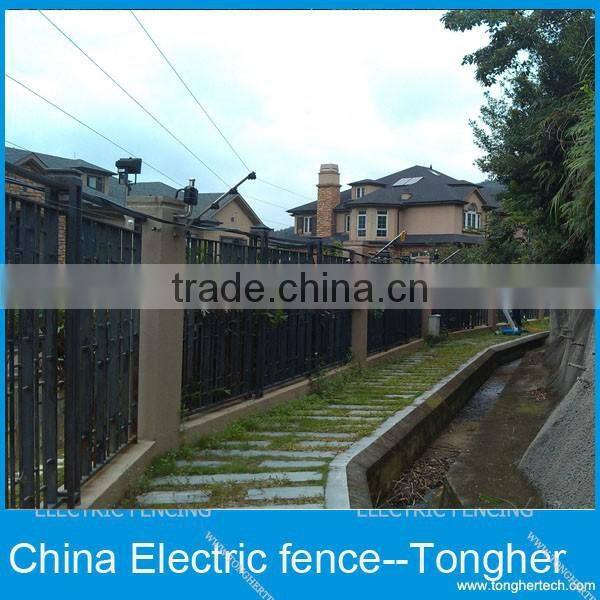

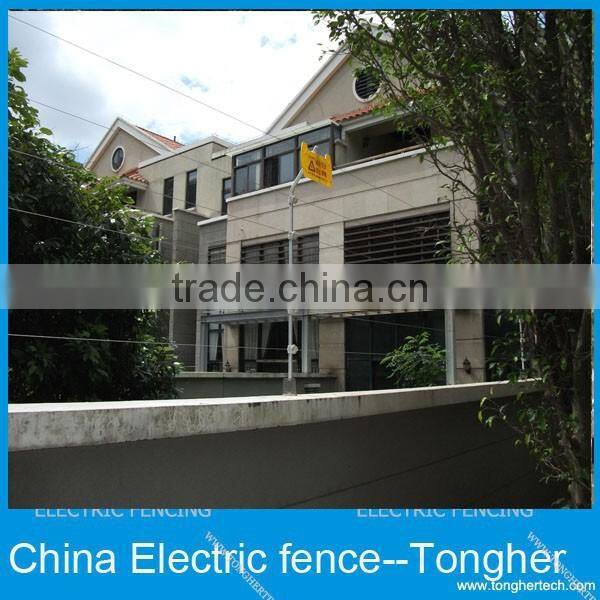

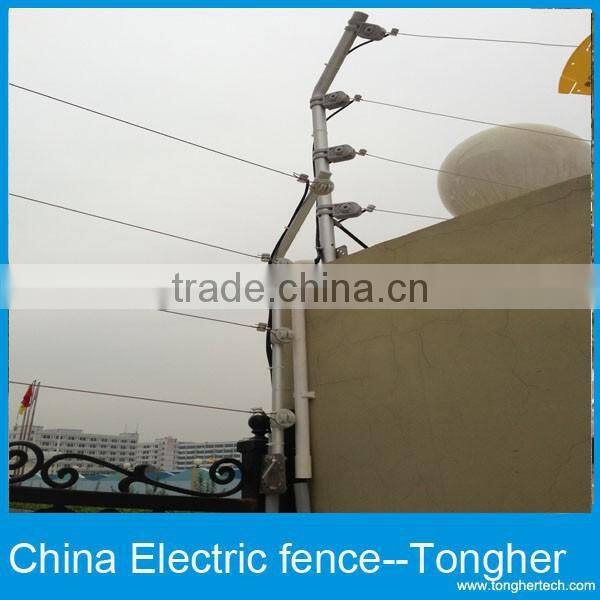

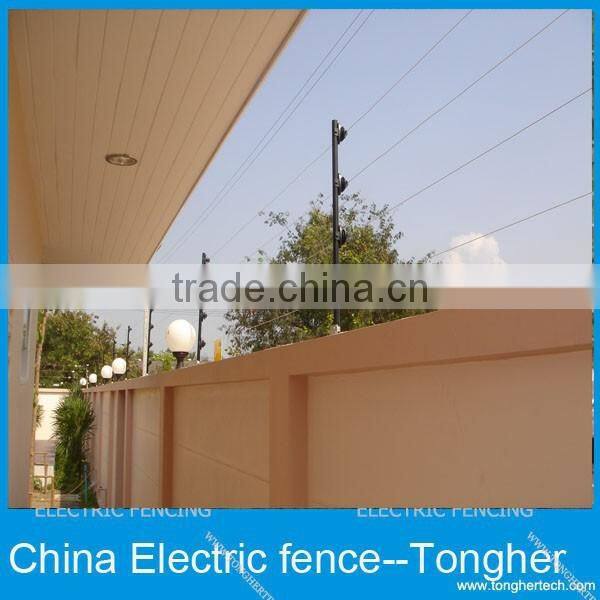

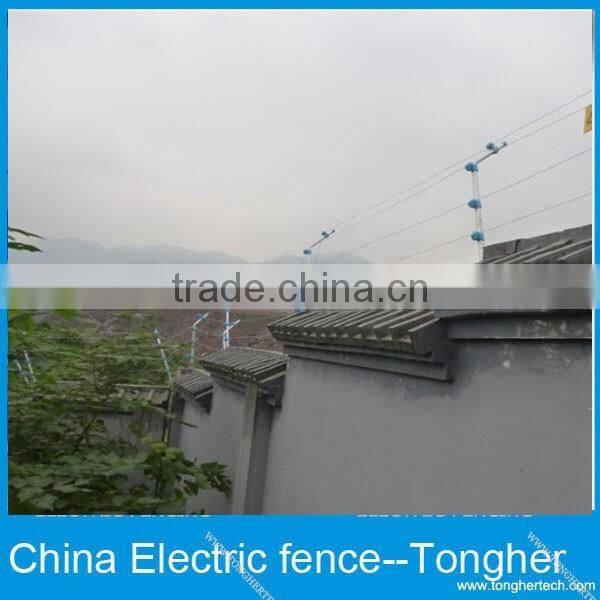

Electric fencing system with alarm sample display:
