Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > Qingzhou Sanhe Centrifugal Shutter System Exhaust Fan

Qingzhou Sanhe Centrifugal Shutter System Exhaust Fan

Name: Qingzhou Sanhe Centrifugal Shutter System Exhaust Fan
Brand: Sanhe
SKU: 138096153

Qingzhou Sanhe Centrifugal Shutter System Exhaust Fan thumbnail-1

Qingzhou Sanhe Centrifugal Shutter System Exhaust Fan photo-1

US$ 200 - 280 MOQ: 10 Sets

Key Specifications

Get Latest Price

Electric Current Type:

Blade Material:

Stainless Steel

Mounting:

Wall Fan

Contact Supplier Request Quote Chat Now

Shandong Yuyun Sanhe Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

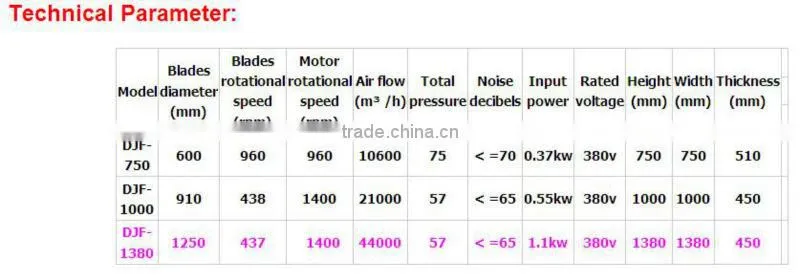

Electric Current Type AC

Blade Material Stainless Steel

Mounting Wall Fan

Place of Origin Shandong, China

Brand Name Sanhe

Model Number DJF

Power 1100

Voltage 380

Air Volume 44000

Certification CE

	SANHE fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
	Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensures the high strength, no rust, reduces frication.
	Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. From 2010 the first adopt Type B belt which is 3times longer service life instead of type A.
	Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.
	Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.
	Linking parts made of aluminum alloy, light weight, not deformation, and with wear-resistant shaft sleeve, reduce clearance, then reduce frication to ensure the shutters open flexibly. The spring is made of 304 stainless steel, long time use, no deformation, no rust.
	Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life.
	Motor plate has multiple functions with the use of a unique design. Both 1HP and 1.5HP motor are available. The motor pulley and belt pulley in the same line in order to reduce the belt wearing and increase belt service life.
