SANHE FC-2 Poultry Air Vent

SANHE FC-2 Poultry Air Vent photo-1
SANHE FC-2 Poultry Air Vent photo-2
SANHE FC-2 Poultry Air Vent photo-3
SANHE FC-2 Poultry Air Vent photo-4
SANHE FC-2 Poultry Air Vent photo-5
SANHE FC-2 Poultry Air Vent photo-6
US$ 8 - 15 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YUYUN SANHE
Model Number:
FC-4
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name YUYUN SANHE
Model Number FC-4
Type Ventilation



Broiler and breeder Poultry equipment---Poultry AIR VENT



----Top Quality in Asia !







Our Ventilation & Cooling Equipment are widely used in Poultry house, Greenhouse, Workshop, Textile industry, Chemical industry,Supermarket, Storage, etc.Where need Fresh air Ventilation.



Brief Introduction:



1) Material: Excellent engineering plastic+UV resistent additive;



2)Equipment: With Bird protection net;



3) Stainless steel spring,and other stainless steel parts can be customized as per clients' request.



Detailed Introduction:



Adopt Excellent PS engineering plastic with a certain quantity of Anti-aging agent under injection process; Ensure a strong anti-aging function with longer lifespan.



Special design in window door connection part offers a better sealing when close up.



Protection net connection change from button type into bolts & nuts type, which effectively avoid the damage in transportation.



Reset Spring and Pulley support are all made of excellent stainless steel, Lifespan is extended.

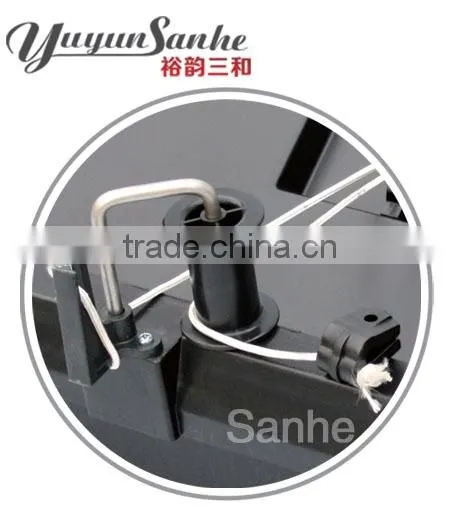

Added with special designed pull rod pulley which reduce friction and facilitate installation mostly by holding up pull rod or steel rope.

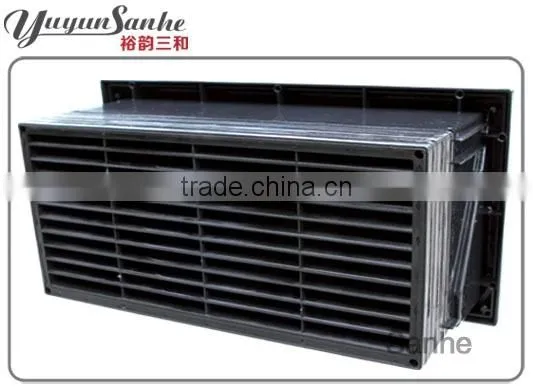

Light trap can be offered in clients requests to save cost. Its easy for connection with air inlet by bolts&nuts. Compared with traditional light trap which used in the air inlet, the cost is reduced about 50%.



Air guide plate can be offered in clients requests. Added spring enables air guide plate to adjust it’s angle according to the window door opening angle.

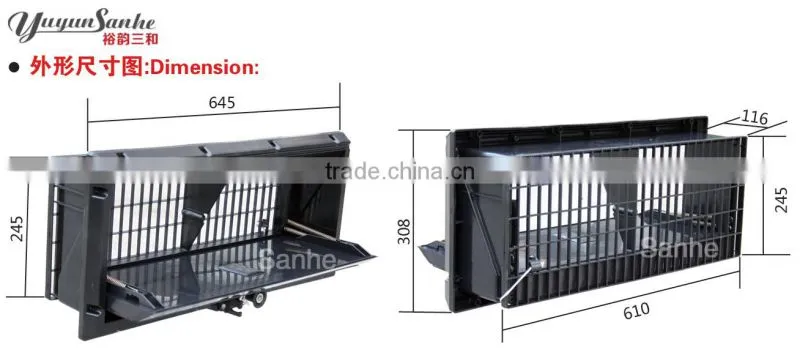

FC-4 Dimension Graph:

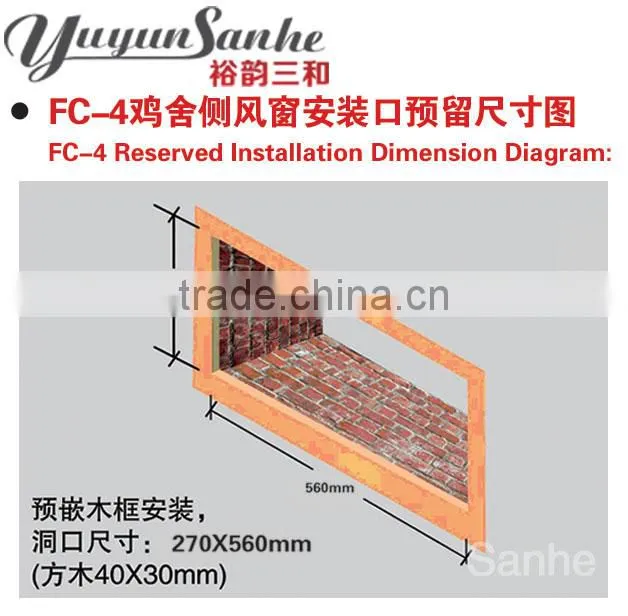

FC-4 Reserved Installation Dimension Diagram:











Installation notification:



1.The installation wall must be in a same line;



2.15cm scope from the air inlet must be solid wall to enable catch



expansion bolts(Hollow wall is prohibited);



3. In avoid the rain flow backward,The hole bottom inner side must be higher than outer side;



4. Reserved wooden-frame must be in a same line with installation wall;



5. Reserved Hole Dimention: 560×270mm

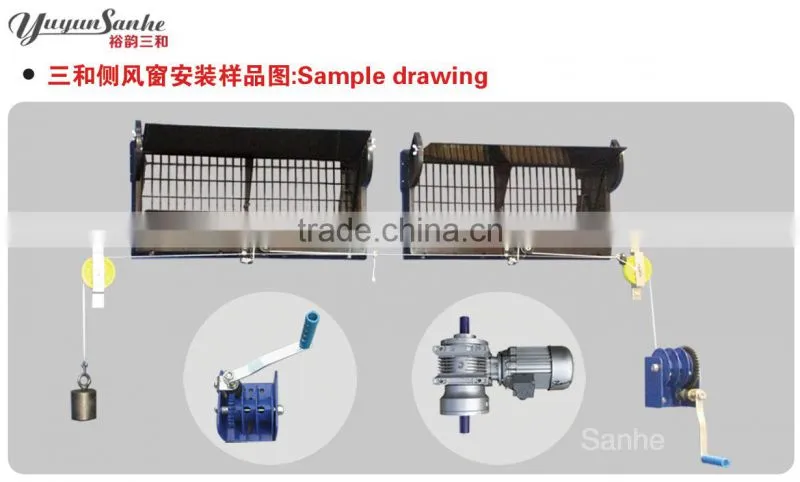

Yuyun Sanhe FC-4 Air Inlet Sample Installation Diagram:
