Auto Livestock/ Piggery/Greenhouse Oil-burning Heating Machine

FOB Price

US$ 1,800 - 4,450 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Air Heater
Power Source	Other, oil,gas,liquid gas,city gas	Place of Origin	Shandong, China
Brand Name	SANHE	Model Number	FSH-5,FSH-10,FSH-20
Dimension(LWH)	14008501370mm,16009001400mm,170010001500mm	Weight	0.4KG/0.6KG/0.7KG
Voltage	380	Power(W)	380/220V
Certification	CE/BV/ISO9001:2008

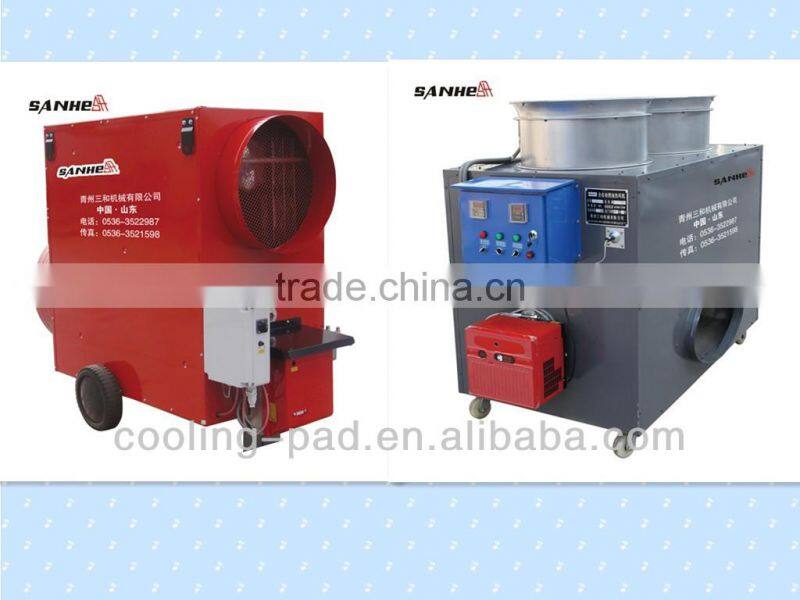

Picturs of Auto Oil-burning Heating Machine

Features

1) Heating area: 300/600/1200 square meters.

2) Stainless steel combustion chamber, thermal conversion as high as 90%

3) Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube.

4) Double air input and output design.

5) Equipped with the world brand Riello burner. Automatic control system operates easily, warm

quickly. After being setted, burner would automatically start on, fire, supply air and stop for

keeping steady temperature. Save large labor and financial resources.

6) Heater exchanger adopt the special three-pass design.

7) Special insulation design which minimize heat loss.

8) All the technical index meet the national environmental protectionⅠstandard.

Technical Parameter

Technical Parameters	50000Kcal	100000Kcal	200000Kcal
Heat output power kcal/h	50000 kcal/h	100000 kcal/h	200000 kcal/h
Heat efficiency ≥%	≥90%	≥90%	≥90%
Fuel	Diesel oil	Diesel oil	Diesel oil
Consumption kg/h	2-4.9 L/h	5-9.8 L/h	12-19.6 L/h
Way of control	Auto	Auto	Auto
Air flow m³/h	5000 m³/h	5500 m³/h	7000 m³/h
Temperature rise °C	80-120 °C	80-120 °C	80-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	0.6Kw	1.0Kw	1.5Kw
Diameter of air outlet mm	400mm	400mm	400mm
Weight kg	400Kg	600Kg	700Kg
Dimension length×width×height mm	1400×850×1370	1600×900×1400	1700×1000×1500
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service

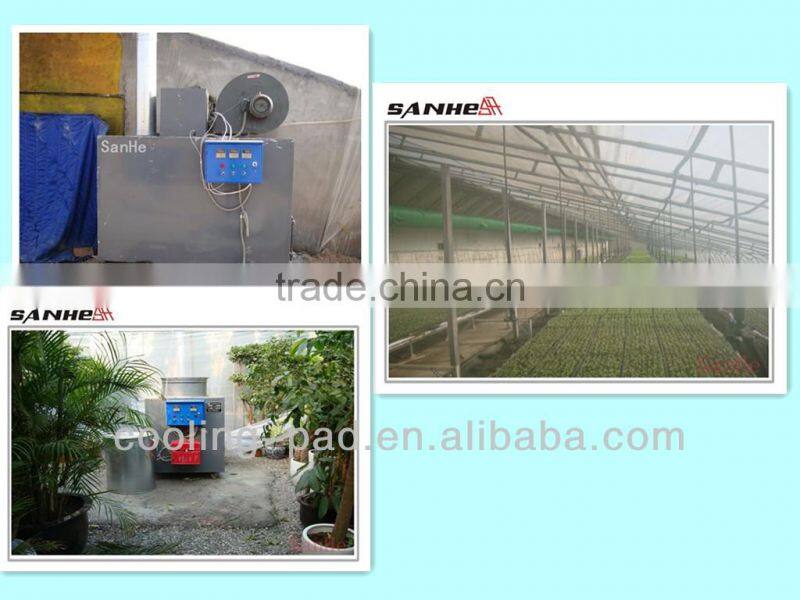

Installation Site

Certificate

Shandong Yuyun Sanhe Machinery Co., Ltd.: Contact nameJunbin Li
Chat Now; Phone86-536-3522987; AddressNO. 3 Times Road, Qingzhou, Shandong, China, Weifang, Shandong
