Home > Products > Heating machine --- Fuel Gas > Gas Heater / Heater / Heating Machine / Hot Heater /hot Fan Heater /poultry Heater/air Heater

Gas Heater / Heater / Heating Machine / Hot Heater /hot Fan Heater /poultry Heater/air Heater

Name: Gas Heater / Heater / Heating Machine / Hot Heater /hot Fan Heater /poultry Heater/air Heater
Brand: Sanhe
Availability: InStock

FOB Price

US$ 10 - 20 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Air Heater
Power Source	Natural Gas	Place of Origin	Shandong, China
Brand Name	Sanhe	Model Number	FSH 50,000-300.000
Dimension(LWH)	customized	Weight	Customized
Voltage	customized	Power(W)	customized
Certification	CE,ISO	Warranty	1 year
After-sales Service Provided	No overseas service provided

SANHE AUTO-GAS HEATING MACHINE

The features are as follows:

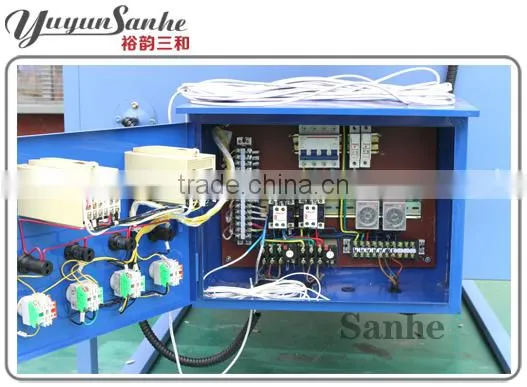

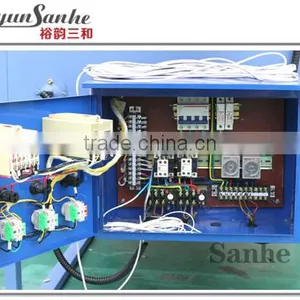

1) Using full auto control, consistent temperature, the temperature of tot air can be

set freely 40-120 degree.

2) Adopt artificial intelligence instrument, clear and eye-catching, it can keep the greenhouse in 15-20 degree.

3) Extensive using fuel, energy saving and cost saving, reduce the

heating cost as high as 30%

4) Using SANHE unique furnace guarding heat system, improve heat

efficiency and service life (6-10 years).

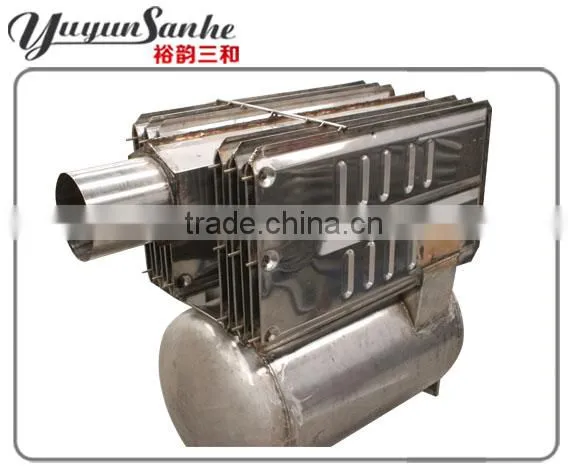

5) This machine combines combustion chamber with heat exchanger

together. Exchange heat among the highest temperature parts, this lates

indirect-heating technology make smoke and hot air walk their own way,

absolutely no pollution.

6) Thermal conversion reaches as high as 80%-95%, fast warming, small volume, easy installation, reliable use.

Technical Parameter:

Technical Parameters	50000Kcal	100000Kcal	200000Kcal
Heat output power kcal/h	50000 kcal/h	100000 kcal/h	200000 kcal/h
Heat efficiency ≥%	≥90%	≥90%	≥90%
Fuel	Natgas	Natgas	Natgas
Consumption kg/h	3-6 Nm³/h	9-12 Nm³/h	18-24 Nm³/h
Way of control	Auto	Auto	Auto
Air flow m³/h	8700m³/h	14000 m³/h	17400 m³/h
Temperature rise °C	80-120 °C	80-120 °C	80-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	0.6Kw	0.7Kw	1.2Kw
Diameter of air outlet mm	400mm	400mm	400mm
Weight kg	400Kg	600Kg	700Kg
Dimension length×width×height mm	1400×850×1370	1600×900×1400	1700×1000×1500
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service
