Help CenterGreenhouse Auto Gas Burning Heating Machine
Related Products
-
Greenhouse Auto Gas-burning Heating MachineUS$ 2,087 - 4,487MOQ: 1 Set -
Greenhouse/Poultry Auto Gas-burning Heating Machine With CE/BV CertificateUS$ 2,087 - 4,487MOQ: 1 Set
-
Riello Burner Auto Gas Burning Heating Machine With CE CertificateUS$ 2,087 - 4,487MOQ: 1 Set
-
Auto Gas Burning Heating MachineUS$ 2,087 - 4,487MOQ: 1 Set
-
Natural Gas Auto Heating Machine for PoultryUS$ 2,087 - 4,487MOQ: 1 Set

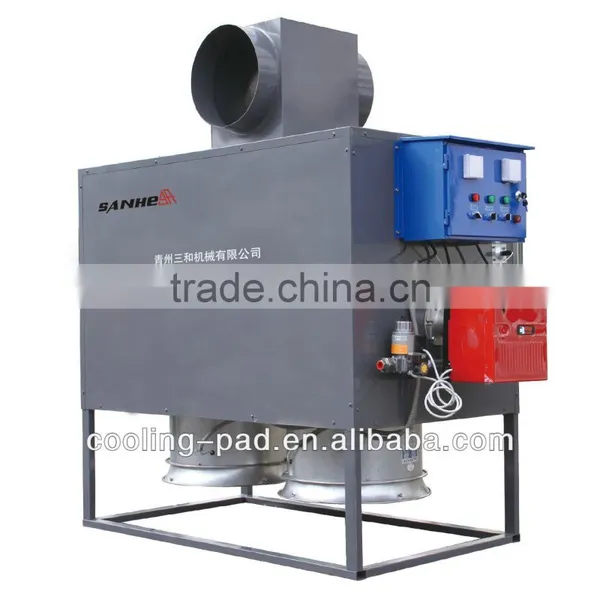

Features of SANHE Auto Gas-burning Heating Machine
1)Adopt the latest international technology, unique large volume design in combustion chamber.
2)Equipped with the world brand Riello burner ensure full combustion, higher efficiency and lower
failure rate.
3)Adopt the advanced corrugated furnace design which increasing the heating area, resist its
expanding after heated.
4)Thermal conversion reach as high as 99.9%,stable air supply.
5)Automatic control system operate easily, warming quickly. After setting, burner would automatically
start on, fire, supply air and stop for keeping steady temperature.
6)Special insulation design minimizes heat loss.
7)All the technical index meet the national environmental protection I standard.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technical Parameter
| Model | Heating Power( Kcal/h) |
Heating Efficiency (≥ %) |
Fuel | Gas Consumption(KG/H) | Air Flow(cbm/h) | Temperature Rising (°C) | Voltage(V) | Electrical Power(KW) | Temperature of stack nozzle(°C) | Dimension(mm) |
| FSH-5 | 100000 | 95 | Natural Gas | 5.85 | 8700 | 40-80 | 380/220 | 0.6 | 120-160 | 1400*850*1370 |
| FSH-10 | 200000 | 95 | Natural Gas | 11.7 | 14000 | 40-80 | 380/220 | 0.7 | 120-160 | 1600*900*1400 |
| FSH-20 | 300000 | 95 | Natural Gas | 23.4 | 17400 | 40-80 | 380/220 | 1.2 | 120-160 | 1700*1000*1500 |
Installation Site
About Our Company
Shandong Yuyun Sanhe Machinery Co., Ltd.,a high-tech enterprise, is a professional manufacturer
of ventilation, cooling equipment, humidification and heating equipments in Asia area. It has a
completed set of specialized designing, manufacturing, installation, sales and after-sale service.
The company strictly executes quality standard, and has passed ISO9001:2008 international quality
system certification, and all procedures are under strict standards or according to the customers
to produce and test.
Our products are widely used in agriculture and industry’s ventilation, cooling system and heating
system. Application for: animal husbandry, poultry house, livestock breeding, flowers and plants,
greenhouse, factory workshop, textile, chemical, medicine, tea, vegetable storage and supermarket.

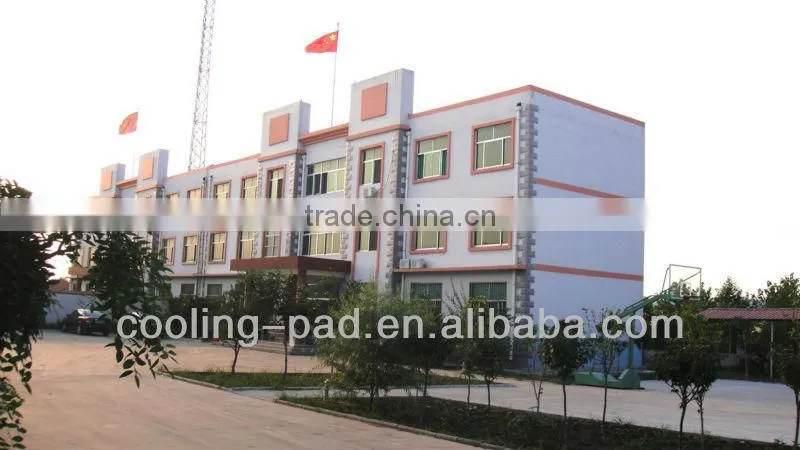

Office Area
Workshop
