Specifications
Adopt the special three-backward stock ,the dust can be removed automatically in the heat exchanger

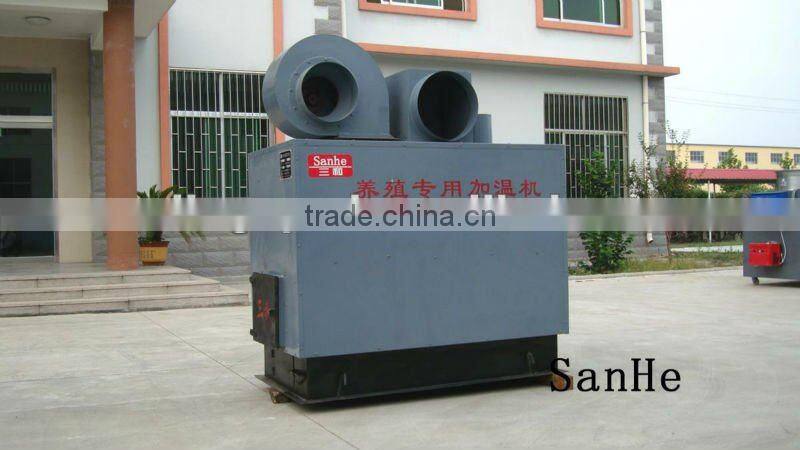

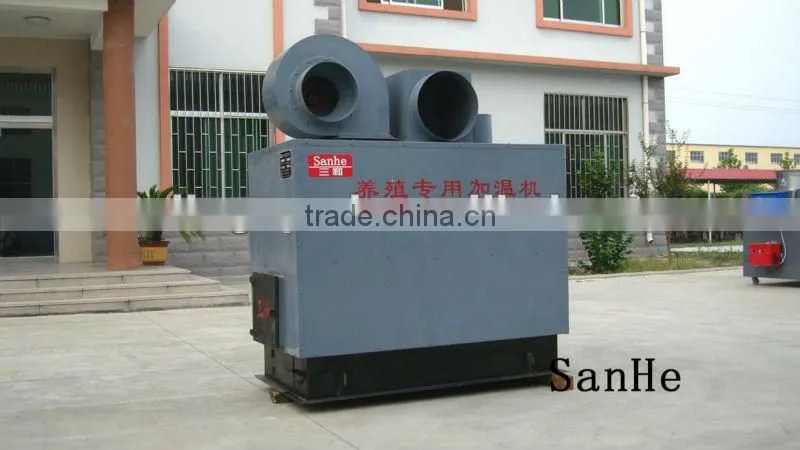

Sanhe coal/wood fuel big poultry heater
It can be widely used in heating greenhouse, henhouses, piggery, and the factory buildings and also used in drying wood, tea, medicine, and food.
-------------------------------------------------------------------------------------------------------------------
Features:
1. Adopt the special three-backward stock. The dust can be removed automatically in the heat exchanger.
2. Auto-alarm functions and automatic protection device.
3. Ventilator and fan can start and stop automatically.
4. Automatically control wind input and output, automatically control the temperature.
5. There are two temperature control systems: Computer-controlled and digit-controlled.
6. Special designing of heat preservation to ensure the lowest heat wastage.
7. The firebox has been specially designed with much longer service life, applied to various kinds of coal, heat efficiency amount to 90%.
8. This machine unifies burning and heat transfer together, special indirect heating technology, smoke and air walk their owned way, no heating pollution.
9. Heat efficiency amounts to 80%-95%, warming up fast, small volume, easy setting, high reliability, low price.
---------------------------------------------------------------------------------------------------------------------
coal fired heater / furnace
Technical Parameter:
Technical Parameters |
150000Kcal |
200000Kcal |
250000Kcal |
300000Kcal |
Heat output power kcal/h |
150000 kcal/h |
200000 kcal/h |
250000 kcal/h |
300000 kcal/h |
Heat efficiency ≥% |
≥90% |
≥90% |
≥90% |
≥90% |
Fuel |
Coal |
Coal |
Coal |
Coal |
Consumption kg/h |
10-18 kg/h |
15-25 kg/h |
18-25 kg/h |
30 kg/h |
Way of adding coal |
Manual |
Manual |
Manual |
Manual |
Way of control |
Auto |
Auto |
Auto |
Auto |
Air flow m³/h |
5000 m³/h |
5500 m³/h |
7000 m³/h |
7000 m³/h |
Temperature rise °C |
80-120 °C |
80-120 °C |
80-120 °C |
80-120 °C |
Power Source V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric power kw |
3Kw |
5Kw |
3Kw |
5.5Kw |
Diameter of air outlet mm |
400mm |
400mm |
400mm |
400mm |
Weight kg |
1000Kg |
1500Kg |
1650Kg |
1700Kg |
|
Dimension length×width×height mm |
1700×900×2000 |
2000×1100×2200 |
2100×1100×2300 |
2100×1100×2300 |
Material of frame |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Quality guarantee period |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |
--------------------------------------------------------------------------------------------------------------------------------------------------

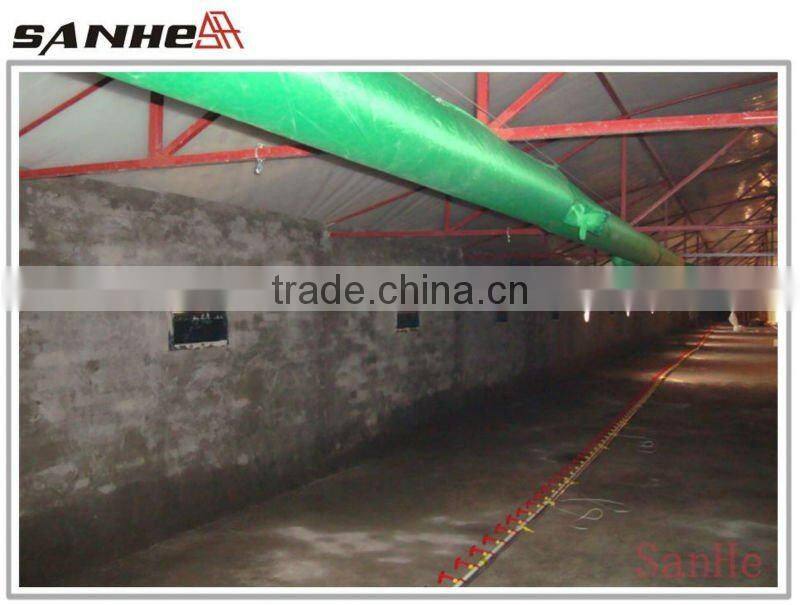

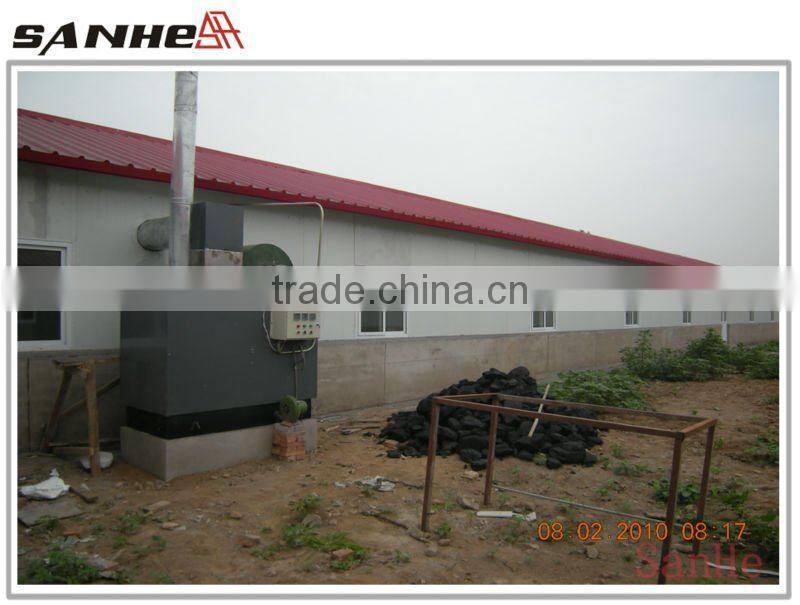

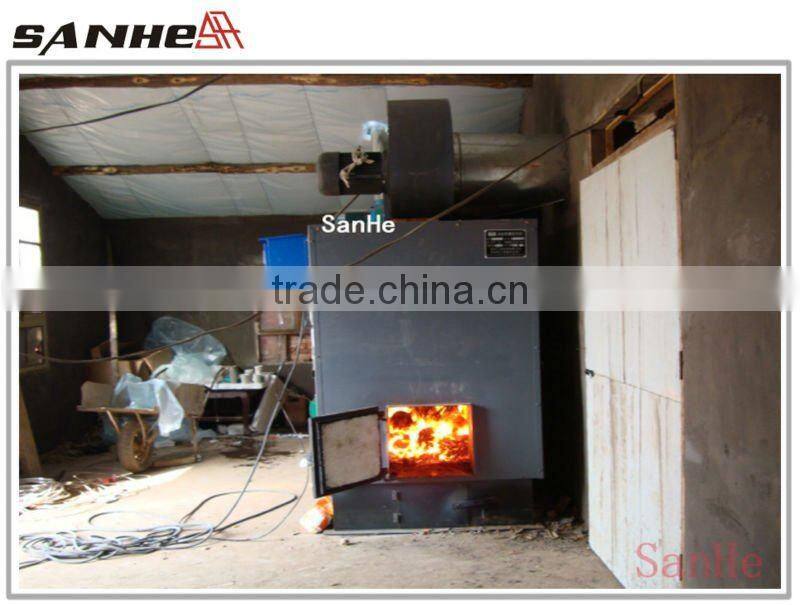

Application scenes:
----------------------------------------------------------------------------------------------------------------------------------------------------

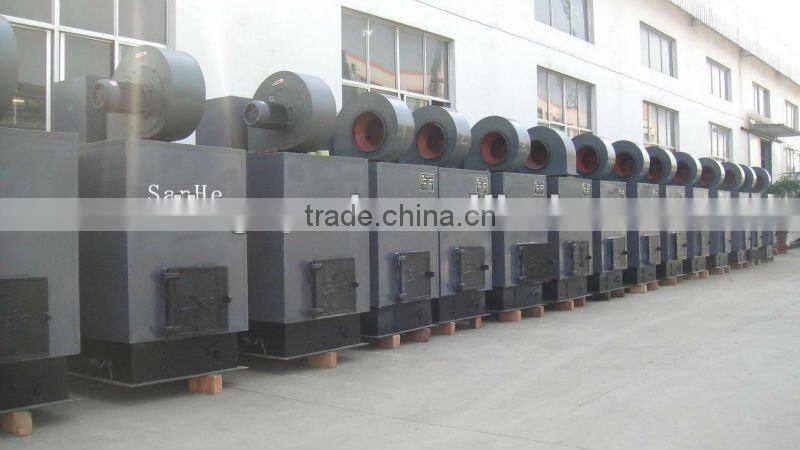

About us:
Qingzhou Sanhe Machinery Co., Ltd. is a professional manufacturer of ventilation, cooling equipment, humidification and heating equipments in Asia area. It is a high-tech enterprise which has a completed set of specialized designing, manufacturing, installation, sales and after-sale service. We have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise". The company strictly executes quality standard, and has passed ISO9001:2008 international quality system certification, and all procedures are under strict standards or according to the customers to produce and test.
Nowadays, our products have passed “CE” and “CCC” certificates. In the condition of no national standard and local standard, we are the sole exhaust fan manufacturing company which formulated the enterprise standard and approved by government.
The company has set up more than 200 sales branches in more than 20 provinces of the country, and the products have been exported to countries and regions such as Asia, Europe, America, Australia and other areas.
We are the OEM for ventilation fans, and there is CNC production lines to master the quality and price for our customers.
------------------------------------------------------------------------------------------------------------------------------------------

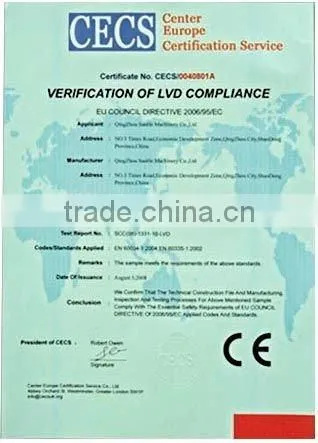

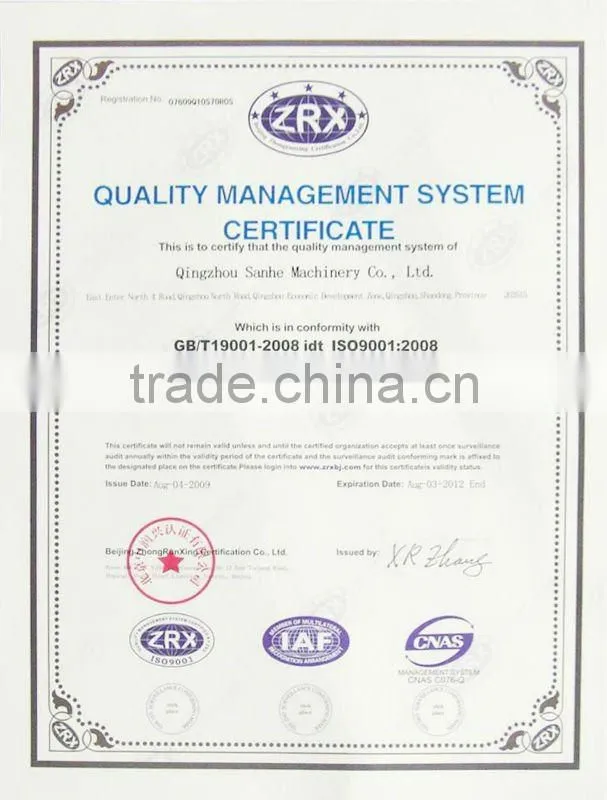

Certificates:
We QINGZHOU SANHE MACHINERY CO.,LTD. Welcome your Inspection!
