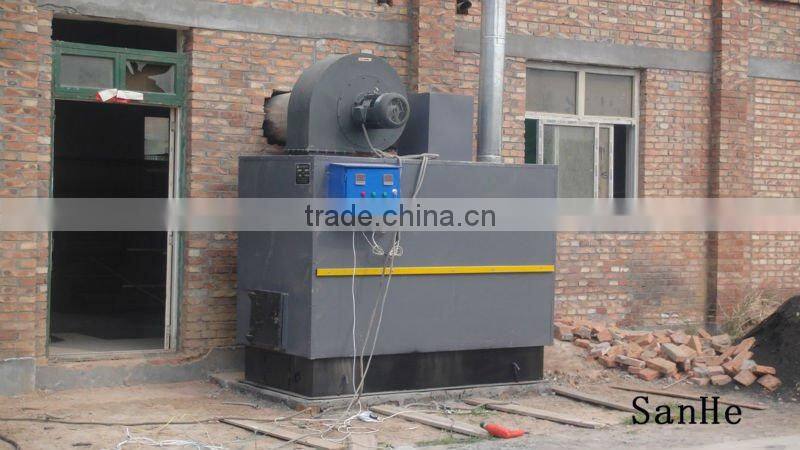

FSH SERIES Electric Burning Heating Machine

Name: FSH SERIES Electric Burning Heating Machine
Brand: SANHE
SKU: 138094651
Availability: InStock

US$ 10 - 20 MOQ: 1 Set

Key Specifications

Type:

Air Heater

Power Source:

Electric

Place of Origin:

Shandong, China

Shandong Yuyun Sanhe Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Type Air Heater

Power Source Electric

Place of Origin Shandong, China

Brand Name SANHE

Model Number FSH

Specifications

1.Equipped with world-brand burner ;
2.With full combustion;
3.Highest efficiency and lowest failure .

SANHE AUTO-ELECTRIC HEATING MACHINE

The features are as follows:

1)Using full auto control, consistent temperature, the temperature of tot air can be set freely

40-120 degree.

2) Adopt artificial intelligence instrument, clear and

eye-catching, it can keep the greenhouse in 15-20 degree.

3) Extensive using fuel, energy saving and cost saving, reduce the heating cost as

high as 30%

4) Using SANHE unique furnace guarding heat system, improve heat efficiency and

service life (6-10 years).

5) This machine combines combustion chamber with heat exchanger together.

Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no

pollution.

6) Thermal conversion reaches as high as 80%-95%, fast warming, small volume, easy installation, reliable use.

Technical Parameter:

Technical Parameters	30KW	50KW	80KW	120KW
Heat output power kcal/h	25000 kcal/h	40000 kcal/h	65000 kcal/h	100000 kcal/h
Heat efficiency ≥%	≥99%	≥99%	≥99%	≥99%
Fuel	electricity	electricity	electricity	electricity
Way of control	auto	auto	auto	auto
Air flow m³/h	8700 m³/h	14000 m³/h	17400 m³/h	20000 m³/h
Temperature rise °C	60-120 °C	60-120 °C	60-120°C	60-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	32 Kw	52 Kw	82 Kw	123 Kw
Diameter of air outlet mm	400mm	400mm	400mm	400mm
Weight kg	500Kg	680Kg	890Kg	700Kg
Dimension length×width×height mm	1100×1100×1800	1400×1100×1800	1600×1100×1800	1800×1200×2200
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service
